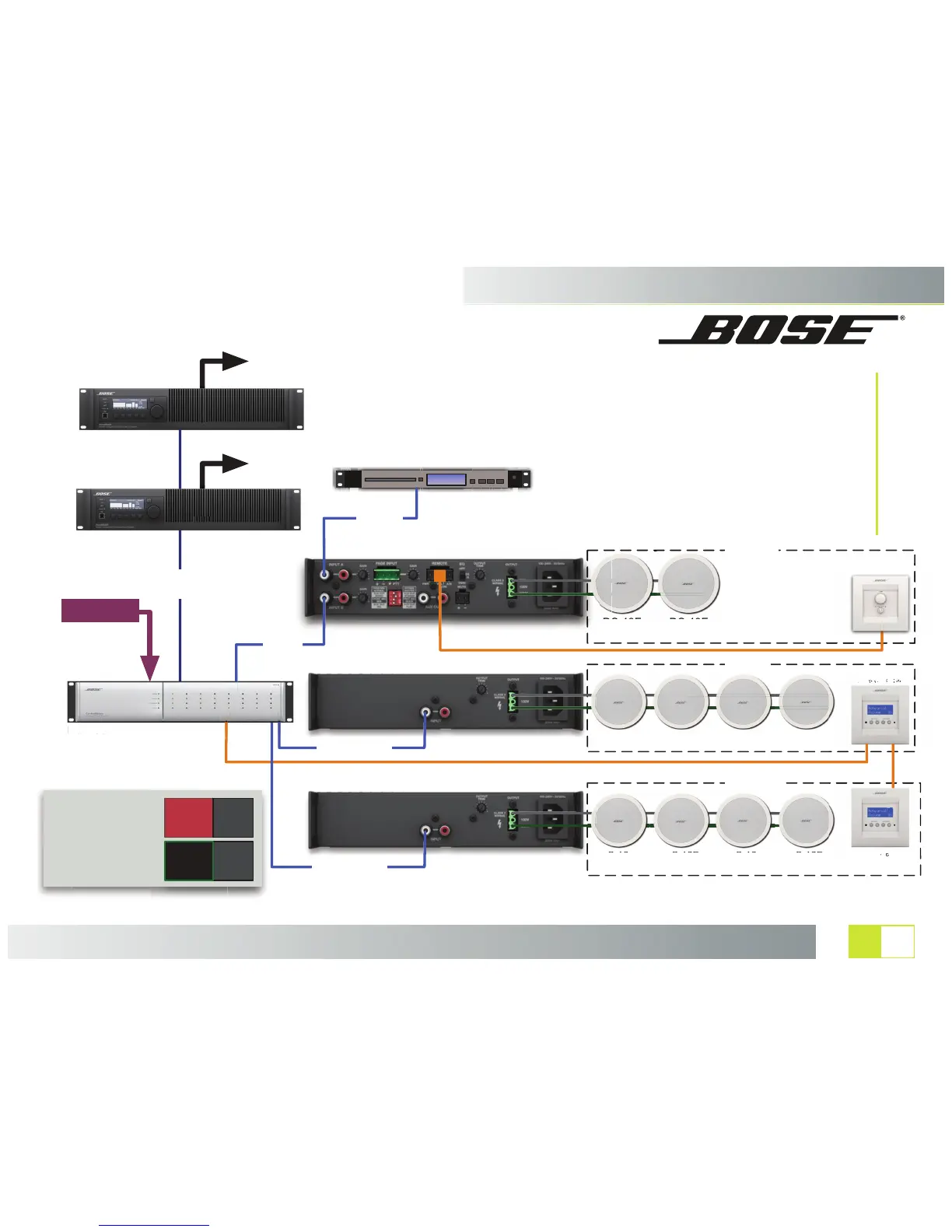

Application 7: Church, Secondary Zones
In this church installation, a ControlSpace® ESP-88 engineered
sound processor is the central mixer and processor for the entire
church. A pair of PowerMatch™ amplifiers drive RoomMatch™
loudspeakers in the sanctuary. The ESP-88 processes all signals
including loudspeaker EQs for the DS 40F and DS 16F loudspeakers
in the secondary zones. These feeds supply three areas - the
sacristy, an entrance hallway, and a busy cry room. The latter two
zones have CC-16 controllers that directly control the source from the
ESP-88 while in the sacristy, additional sources can be connected
due to an IZA 190-HZ. A separate Volume control with A/B switch
interface directly controls the volume and source in this location.
Amplifier Configuration
DIP Switches
Page/Mic
Aux Out
Front Mic
Aux Out
NORMAL
MONO
DUCK
FLAT
Loudspeaker EQ
Selector Switch
HPFEQ
Sacristy
Hallway
Cry Room
DS 40F
(40 W Tap)
DS 40F
(40 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
CC-16
Zone Controller
CC-16
Zone Controller
Volume control with
A/B switch
user interface
To Next Page
