Bose FreeSpace IZA 250-LZ

!""'"#"%"
!
!#"$##&#$##
)"! !#
#!!"!#"#!!" #%&!"

#!#( *!



( *!



Application 9: Large Restaurant, Secondary Zones

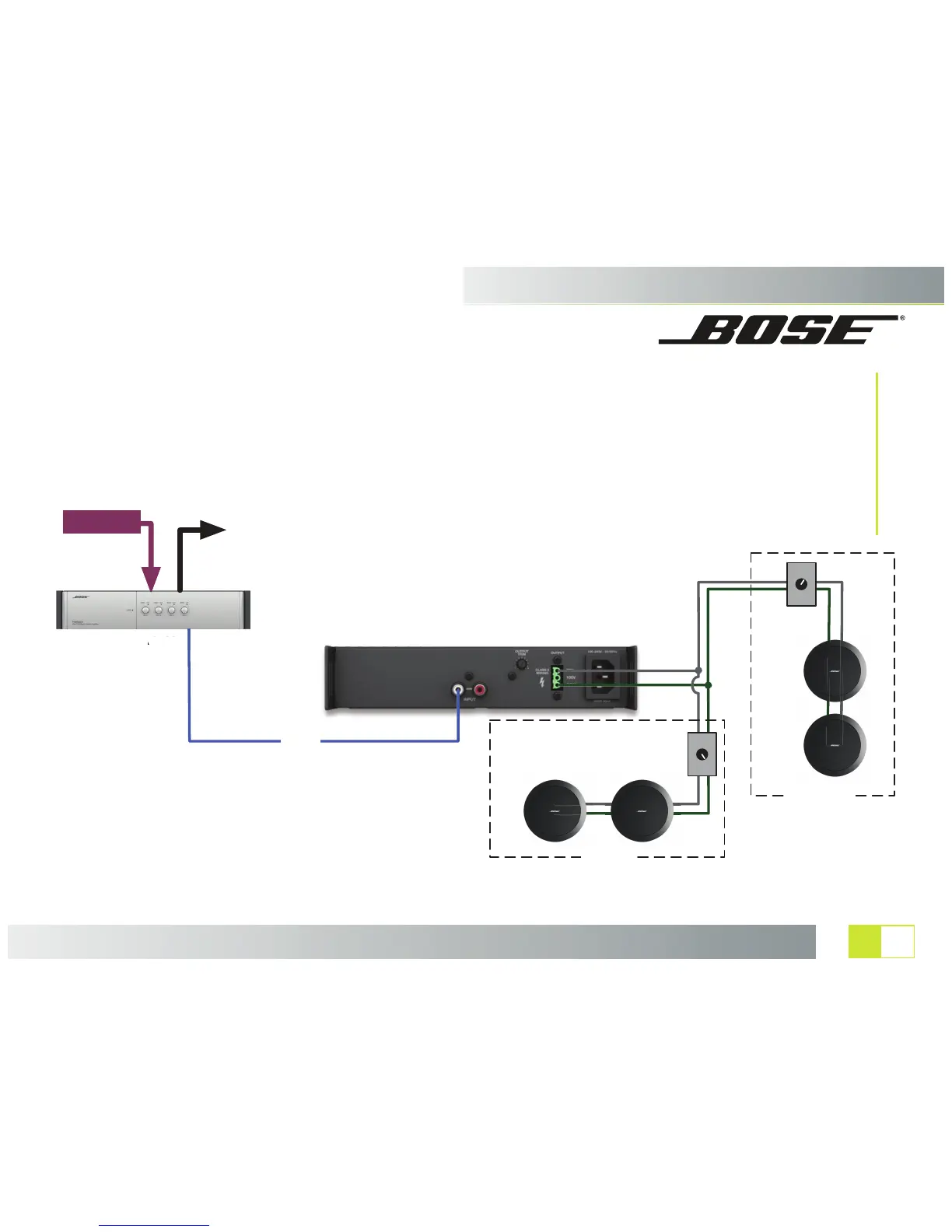

In this simplified example, a FreeSpace DXA 2120 digital mixer/amplifier
and ZA 190-HZ work together to provide sound to a large restaurant.
The DXA 2120 receives signals from multiple sources and supplies
power to loudspeakers located in the main dining and bar areas. A ZA
190-HZ zone amplifier connects to the DXA 2120 via the fixed-signal
AUX OUTPUT connection. Both components are located in an
equipment room inside the restaurant. The ZA 190-HZ runs a split
constant-voltage distribution line to two zones, each with their own 70V
wall-mounted variable control speaker attenuator (not a Bose part).
These feeds power pairs of DS 16F (16 W tap) loudspeakers in kitchen
and restroom areas.
FreeSpace® DXA 2120
digital mixer/amplifier
Microphones
and Line Sources
Euroblock
(unbal) to
RCA (M)
FreeSpace® DX
A
212
0
A
di
it
l
i
/
l
ifi
ZA 190-HZ (Rear Panel)
AUX OUTPUT
To main room
FreeSpace
loudspeakers
Kitchen
Restrooms
Speaker
Attenuator
Speaker
Attenuator
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
DS 16F
(16 W Tap)
