Bose L1 Pro8 Instruction Manual

Architect and Engineer Specification
The system shall be a multiple-driver, full-range portable loudspeaker system with internally supplied power amplification and active equalization for multiple
operating modes as follows:
The transducer complement shall consist of eight, 2″ (51 mm) high-excursion cricket drivers mounted in a curved articulated array loudspeaker, coupled with
an integral 7″ × 13″ (177 mm × 330 mm) RaceTrack low-frequency driver mounted in a ported bass enclosure. The loudspeaker array shall be wired in a
series/parallel configuration.

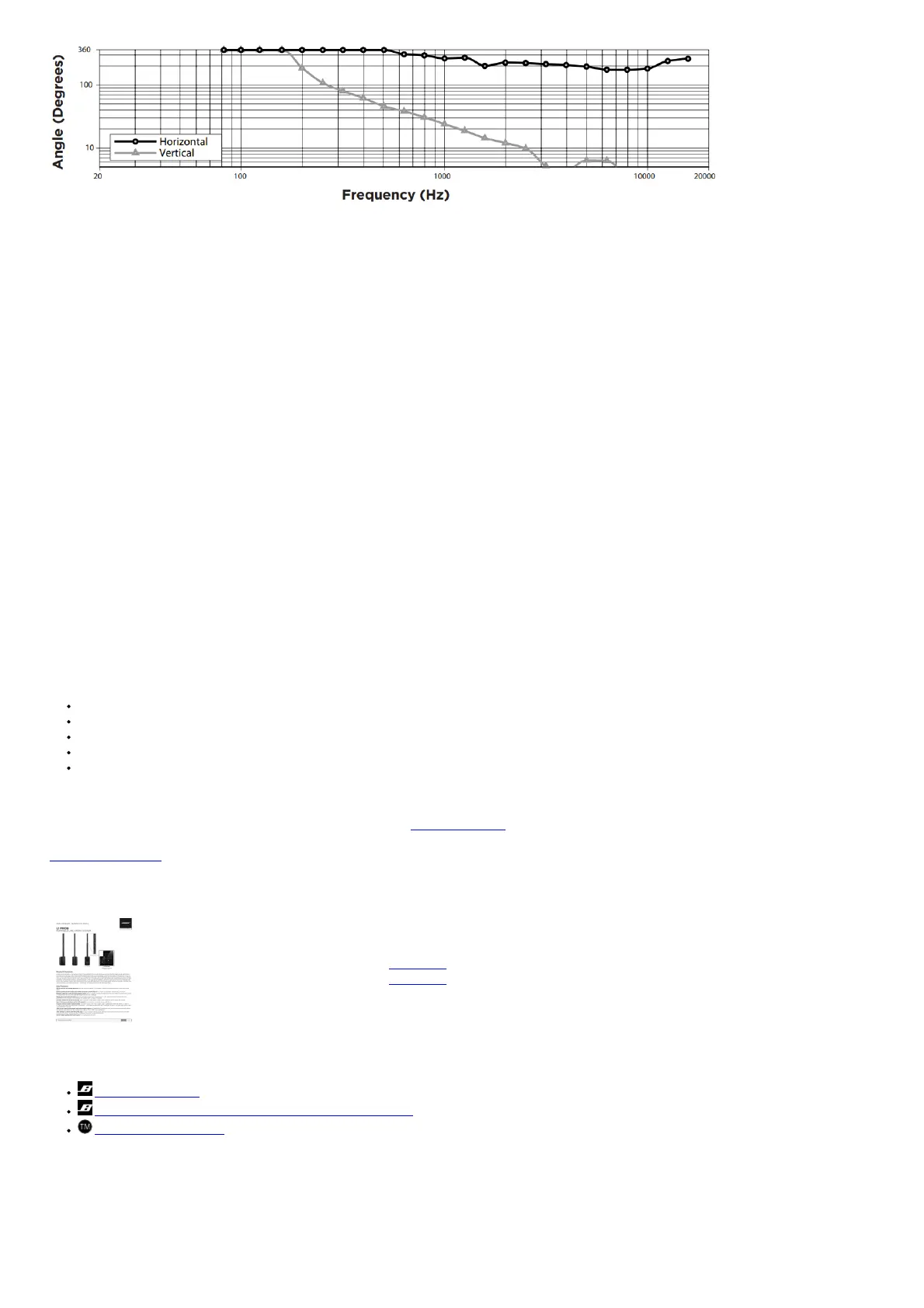

The nominal horizontal beamwidth of the loudspeaker shall be 180° and the nominal vertical coverage shall be 40°. The system’s power stand shall
incorporate a ported venting system for the low-frequency driver. The power amplification for transducers shall be supplied by an integral, two-channel
onboard amplifier providing 240 W for low-frequency
transducer and 60 W for mid-high array transducers.
The onboard digital mixer shall consist of three input channels. Channel 1 and 2 shall provide a combination XLR or 1/4″ TRS connector
(mic/instrument/line) with treble, bass equalization, and reverb effects, and shall also provide selectable master output equalization with live, music, and
speech presets. Phantom power (48 V) shall be available
via a push button to enable and disable. Both channels shall provide selectable equalization presets for microphones and instruments. Channel 3 shall
provide a 1/8″ TRS (stereo-summed, line) connector, 1/4″ TRS (line) connector. The same channel shall provide Bluetooth® audio streaming using a high-
definition AAC codec with a Bluetooth pairing button provided. All three channels shall have a dedicated channel mute button. The output connector of the
onboard mixer shall consist of one XLR balanced line-level output connector. The onboard mixer shall provide a ToneMatch RJ-45 connector to receive
digital audio and send power via ToneMatch cable for Bose T4S/T8S ToneMatch mixer.
The enclosure of the power stand shall be constructed of high-impact polypropylene. The extension and array shall be constructed of high-impact ABS. The
system shall be capable of two operating modes; collapsed or extended operating mode by integrating height-extension module.
In collapsed mode, the system’s outer dimensions shall be 45.7″ H × 12.5″ W × 17.9″ D (1160 mm × 317 mm × 456 mm).
In extended operating mode, the system’s outer dimensions shall be 78.7″ H × 12.5″ W × 17.9″ D (2000 mm × 317 mm × 456 mm). The system’s net weight
shall be 38.2 lbs (17.4 kg).
The loudspeaker shall be the Bose L1 Pro8 portable line array system.
Safety and Regulatory Compliance
The L1 Pro8 portable line array system complies with the following standards:
UL/IEC/EN62368-1 Audio/Video, Information, and Communication Technology Equipment
Ecodesign Requirements for Energy Related Products Directive 2009/125/EC
Radio Equipment Directive 2014/53/EU
CAN ICES-3 (B)/NMB-3(B)
FCC Part 15 Class B
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Boze Corporation is under
license. Bose, L1, and ToneMatch are trademarks of Bose Corporation. All other trademarks are the property of their respective owners.
For additional specifications and application information, please visit PRO.BOSE.COM.
Specifications are subject to change without notice. 6/2021
PRO.BOSE.COM/L1
File Downloads
BOSE Instruction Manual
L1 PRO8, PORTABLE LINE ARRAY SYSTEM
Download [optimized]
Download
References
Bose Professional
L1 Pro Portable Line Array Systems | Bose Professional
Bluetooth® Trademark
Related Manuals
1. Bose L1 Pro8 & L1 Pro16 Portable Line Array System User Manual Important Safety Instructions Please read and keep all safety, security,...
2. BOSE L1 PRO16 PORTABLE LINE ARRAY SYSTEM Instruction Manual PROFESSIONAL PRELIMINARY TECHNICAL DATA L1 PRO16 PORTABLE LINE
ARRAY SYSTEM...
3. BOSE L1 PRO32 + SUB2 PORTABLE LINE ARRAY SYSTEM Instruction Manual PROFESSIONAL PRELIMINARY TECHNICAL DATA L1 PRO32 + SUB2

Bose L1 Pro8 Specifications

General

Tweeter	Yes
Amplifier	Built-in
Speaker type	-
Amplifier class	D
Number of drivers	8
Number of speakers	1
Woofer diameter (imperial)	13 \
Tweeter diameter (imperial)	2 \
Frequency range	- Hz
RMS rated power	300 W
Speakers RMS power	60 W
Sound pressure level (max)	118 dB
Wi-Fi	No
AUX in ports	2
Connectivity technology	Wired & Wireless
Type	Freestanding Public Address (PA) system
Control type	Buttons, Rotary
Product type	2.1 portable speaker system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Power source type	AC

Weight and Dimensions

Depth	440 mm
Width	318 mm
Height	2005 mm
Weight	18000 g
