PANARAY
®
LT SERIES II PART LIST

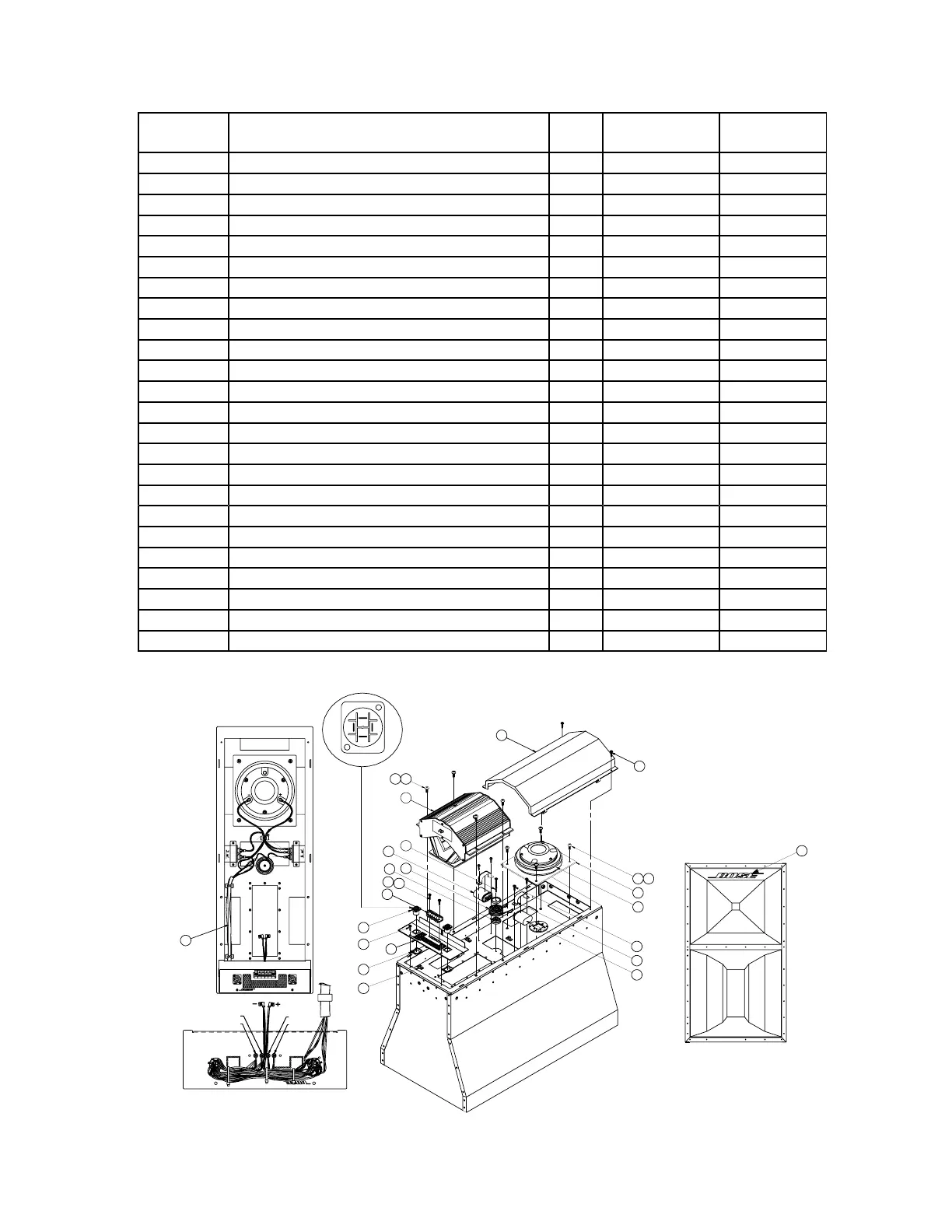

Figure 4. Panaray
®
Series II Exploded View
V4
V4
27
(QTY 2)
(QTY 4)
(QTY 4)
(QTY 2)
(QTY 2)
(QTY 4)
(QTY 2)
(QTY 2)
(QTY 2)
(QTY 4)
CLIP
PIN 2-
PIN 2+
PIN 1+
3
8
5
1
4
5
6
4
2
13
14
8
18
7
9
17
11
10
12
19
7
PIN 1-
15
NL4MP
1+
2+
1-
2-
8
(QTY 2)
20
21
16
Item
Number
Desription Qty Part
Number
Note
1 Driver, Compression, T1.4 HP 1 186100 1
1 Replacement Diaphragm Kit (T1.4) 1 181470 2
2 Sys Assy, Vee Four, Blk 1 190700-001 3
3 Bracket, High Freq. Driver 1 176896
4 Screw, Mach, .25-20, Pan, XREC 12 176801-16
5 Screw, Mach, . 25-20, Flat, XREC, SS 4 176614-08
6 Connector Panel Assy, LT II 1 187976-03 3202™-II
6 Connector Panel Assy, LT II 1 187976-02
7 Screw, Tapp, 8-11X.75, Pan, XRC/SQ 8 187942-12
8 Conn, Speakon, Panel Mount 2 187887
9 Clip, Tinnerman 2 187943
10 Cap, Filter, Oval, 10%, 6uF 1 187890
11 Cap, Filter, Oval, 3uF 1 176668
12 Strap, Mounting, Cap 2 176669
13 Inductor, .63uH 1 187889
14 Spacer, Round, 1.150x.074 1 130913
15 Cover Assy, Back, LT II 1 176897-01 3202-II
15 Cover Assy, Back, LT II 1 176897-02
16 Label, Bose, Logo 1 183067
17 Clip, Cable, Dbl Face Adh, .25" 4 145716
18 Connector, Terminal Blockstrip 1 188629-004
19 Screw, Pan Head, 1.5" #6-32 1 146092-24
20 Screw, Mach, 6-32, FH, XREC 2 187935-10
21 Nut, Hex, W/Lock washer 2 133803-06
