Bose PANARAY LT II Series User Manual

PANARAY
®
LT PART LIST

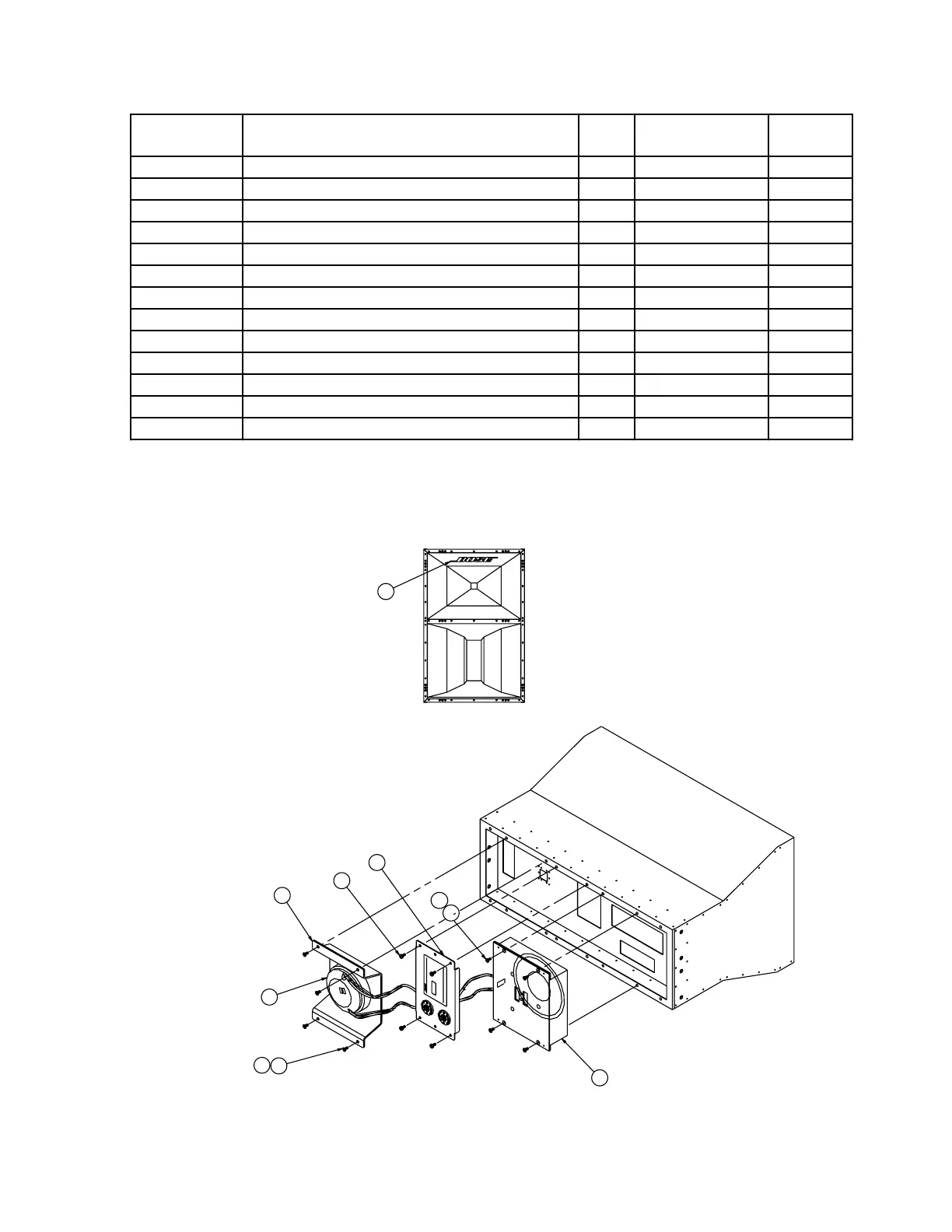

Figure 5. Panaray Exploded View
1
2
3
4
4
7
6
6
8
5
(NOTE 1)
Item
Number
Description Qty Part
Number
Note
1 Driver Assy, Midrange, 10" M10 1 176606 4
2 Driver, Compression, T1.4 1 176605
2 Diaphragm Kit, Driver, T1.4 1 181470 2
3 Bracket, High-Freq. Driver 1 176665
4 Screw, Mach, .25-20, Flat, XREC 8 176601-12
5 Screw, Mach, .25-20, Pan, XREC 4 176801-16
6 Screw, Mach, .25-20, Flat, XREC, SS 8 176614-08
7 Connector Panel Assy 1 176675 3202™
7 Connector Panel Assy 1 176720 4402™
7 Connector Panel Assy 1 176864 9702™
7 Cap, Filter, Oval , 3uF 1 176668
7 Stip, Mounting, 3uF Cap 1 176669
8 Label, Bose, Logo 1 183067
