Bose Panaray MSA12X Installation Guide

18 - Installation Guide
Installation
pro.Bose.com

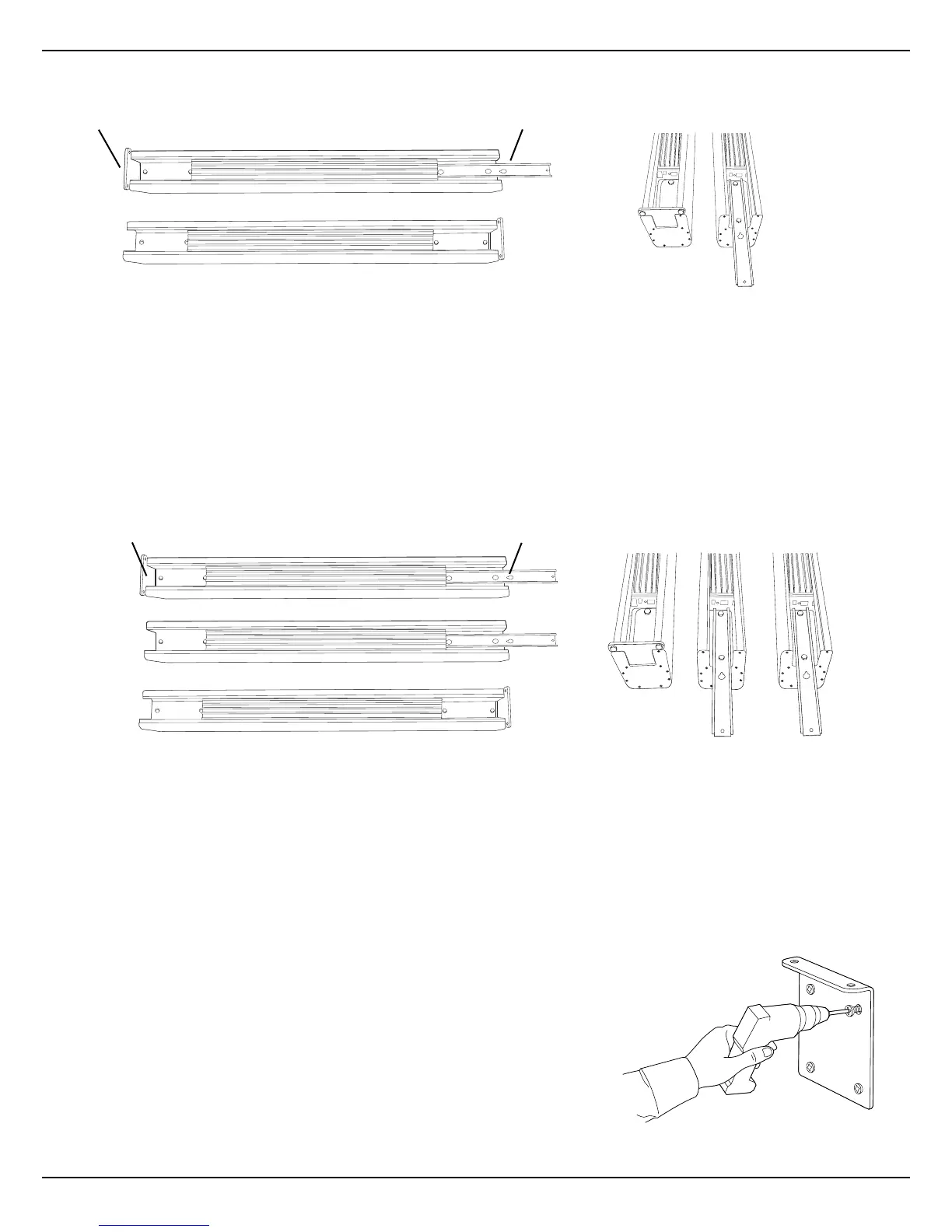

For a two-loudspeaker assembly:
a. Attach one loudspeaker bracket to the bottom loudspeaker module, and one loudspeaker bracket to the
top loudspeaker module, using the included flanged head bolts. Tighten bolts to 6.78 N-m (5 ft-lbs).
b. Attach one interconnect bracket to the bottom end of the top loudspeaker module, using the included
flanged head bolts. Tighten the bolts to finger tightness only.
c. Insert a flanged head bolt in the top hole of the top section on the bottom lousdpeaker module. Thread
the bolt at least four (4) full turns, but not so far that the flange cannot hang through the keyhole of the
interconnect bracket.
For a three-loudspeaker assembly:
a. Attach one loudspeaker bracket to the bottom loudspeaker module, and one loudspeaker bracket to the
top module, using the included flanged head bolts. Tighten bolts to 6.78 N-m (5 ft-lbs).
b. Attach one interconnect bracket each to the bottom of the middle and top loudspeaker modules, using
the included flanged head bolts.
c. Insert a flanged head bolt in the top hole of the top section on the bottom and middle loudspeaker
modules. Thread the bolt at least four (4) full turns, but not so far that the flange cannot hang through the
keyhole of the interconnect bracket.
4. Install the wall bracket on the wall where the top of the array will
be located, using wall mounting screws (not included). Tighten
securely. Bracket must be horizontally level. Be sure to leave
sucient clearance from the ceiling for the top of the array.
CAUTION: Choose a position and mounting surface that is capable
of supporting the total weight of the system. Bose recommends a
safety factor of 10:1.
TOP
BOTTOM
Loudspeaker Bracket
Interconnect Bracket
BOTTOM
TOP
Loudspeaker Bracket
Interconnect Bracket
TOP
BOTTOM
MIDDLE
TOP
BOTTOM
MIDDLE
