Installation
pro.Bose.com
Installation Guide - 19

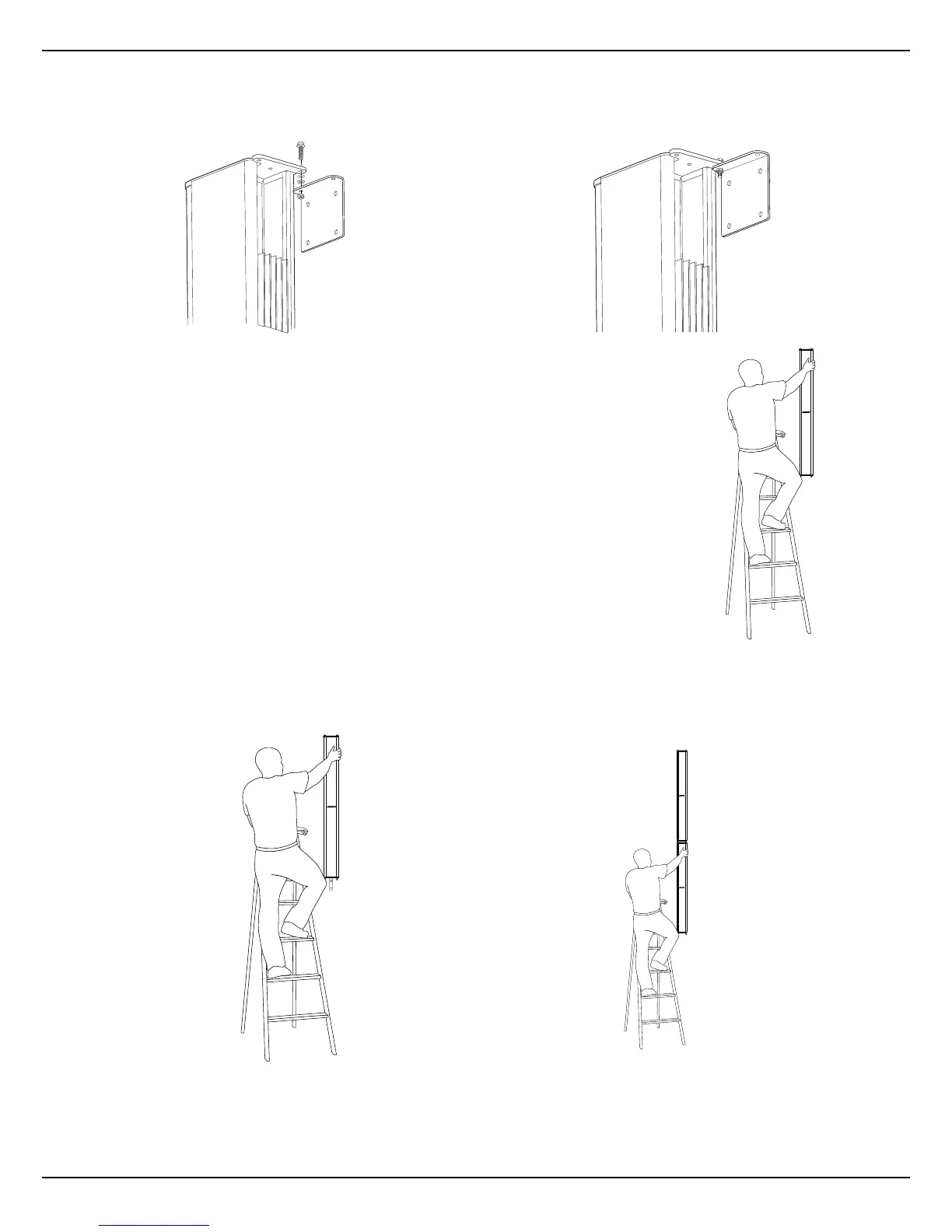

5. Thread a flanged head bolt into one side of the loudspeaker bracket on the top loudspeaker module.
6. Place a washer between the loudspeaker bracket and the wall bracket. Use the included double-sided tape
ring to adhere the washer to the loudspeaker bracket around the protruding threads of the flanged head bolt.
7. Lift the top module up to the wall bracket. Insert the screw into the
hole at the top of the loudspeaker bracket. Thread on a flanged nut and
hand-tighten securely but loosely, with the speaker turned 90 degrees.
NOTE: For single module installation, skip to Step 9.
8. To connect additional loudspeaker modules:
a. Using the top flanged head bolt already threaded into the top insert of the second module, hang the
second module from the first module. The flanged head bolt will fit through the keyhole and hang.
