Bose PowerShare PS602

5
Product Description
Auto-Standby
Optional energy saving feature that allows PowerShare
TM
amplifiers to automatically go into a lower
power Standby Mode when audio signal falls below a set threshold, and wake up when audio signal
is above the threshold.
ControlCenter Zone Controllers - Remote Volume Control
Up to four CC-1 Zone Controllers can be ganged together and connected to a PowerShare amplifier
for remote volume control with CAT-5 cabling, which reduces wiring and labor. Each zone controller
can be simply configured to control one to four outputs, allowing for bi-amping.
Remotely control the volume of the PS602 and PS604 amplifiers using the Bose
®
CC-1
ControlCenter Zone Controllers. Controllers are available in two colors (white and black) for each
of three regions (US, Japan, and EU/UK/China). The US and Japan controllers fit into any regional
1-gang electrical box. The EU/UK/China zone controllers come as a finished wall plate of size
86-by-86 millimeters, with 60 to 60.3 millimeter horizontal or vertical screw spacing. Each zone
controller also comes with a sheet of pre-printed labels, with two blanks for custom labeling, and two
screws for fastening the zone controller to the electrical box. The US and Japan zone controllers do
not include a wall plate cover; these should be sourced locally, as each installation may require a
different size or color cover.
Direct CC-1 Zone Controller Connection to the Amplifier
Zone controllers located next to one another can be ganged together directly and have a single
homerun back to the amplifier, using standard EIA 568B CAT-5 cables and RJ-45 connectors. The
PS602 supports either one or two ganged CC-1 Zone Controllers, and the PS604 supports up to
four ganged CC-1 Zone Controllers. Each zone controller can be independently configured to control
any output, or combination of outputs, for bi-amping.

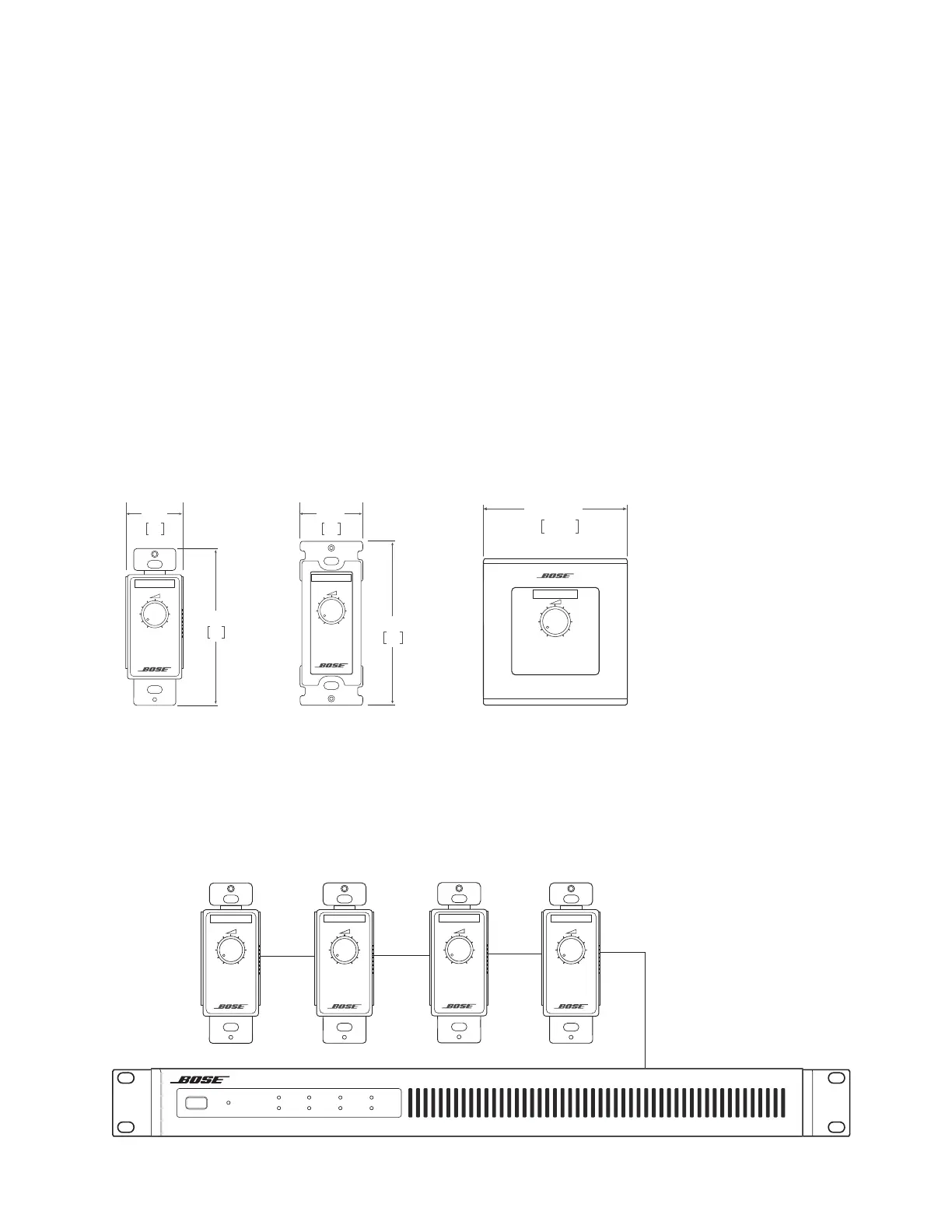

38 mm
1.5 in
105 mm
4.1 in
CC-1 US Zone Controller
42 mm
1. 7 i n
110 mm
4. 3 in
CC-1 Japan Zone Controller
86 mm sq.
3.4 in sq.
CC-1 EU/UK/China Zone Controller
Adaptable Power Amplier
LIMIT
SIGNAL
12 3 4
Power Share
PS604
POWER
609.6 m(2000 ft) max
