Disassembly Procedures

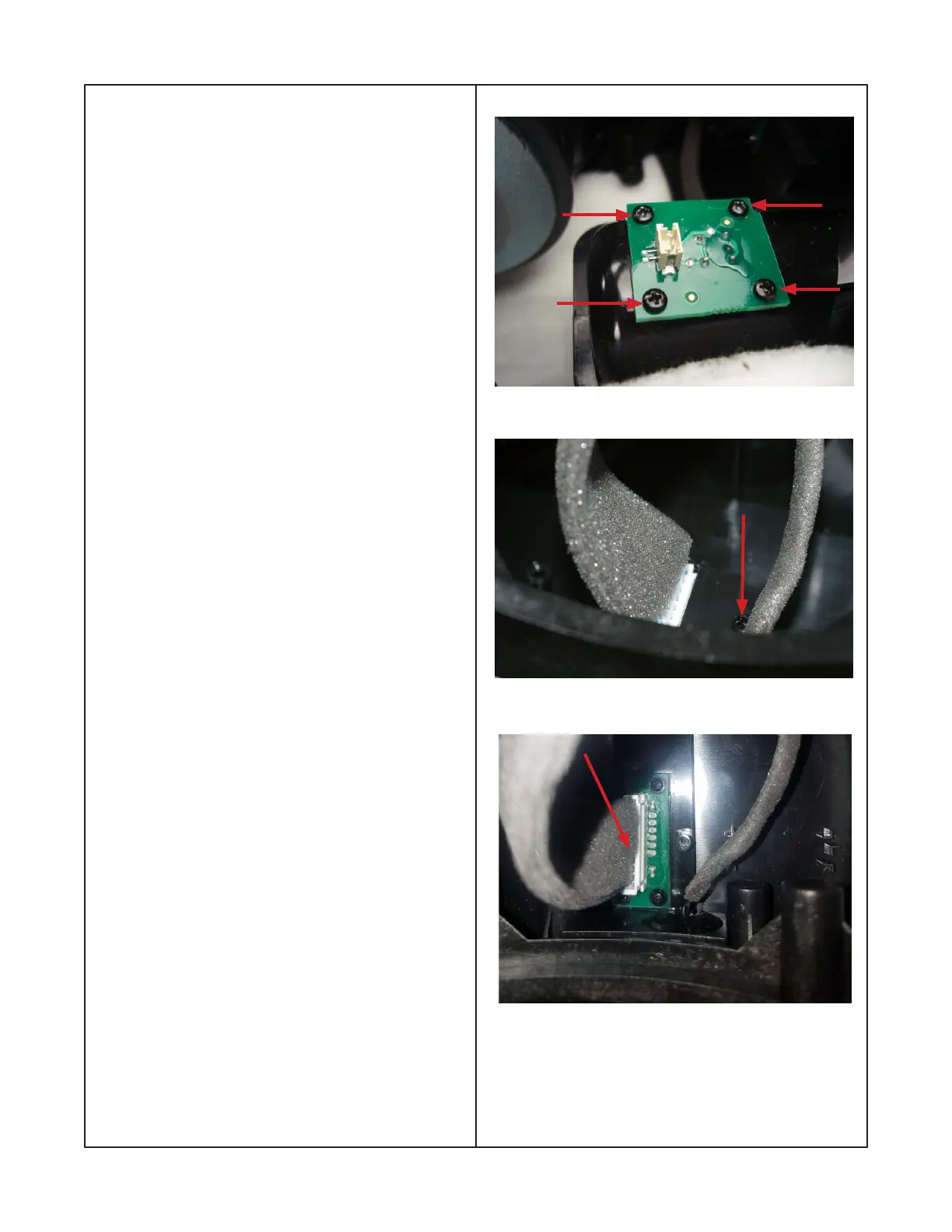

Figure 34
11.4 Remove the four screws indicated by the
red arrows in gure 34 and lift out the pole switch
PCB assy.
12 Battery PCB Removal
12.1 Perform procedures 2 thru 4. Remove the
screw from the battery PCB Assy as indicated by
a red arrow in gure 35.
12.2 Remove the harness connector in gure 36
from the Battery PCB.
Figure 35
Figure 36
