Bose SoundDock 10 Service Manual

23
TEST PROCEDURES CONTINUTED
SoundDock
®
10 Digital Music System
iPhone Test
Equipment Required
Apple
®
iPhone.
1. Authorization Test
1.1 Apply AC power to the SoundDock 10
system. Allow the system to power up by
waiting for the boot beep sound from the
speakers.
1.2 Place the iPhone on the dock cradle.

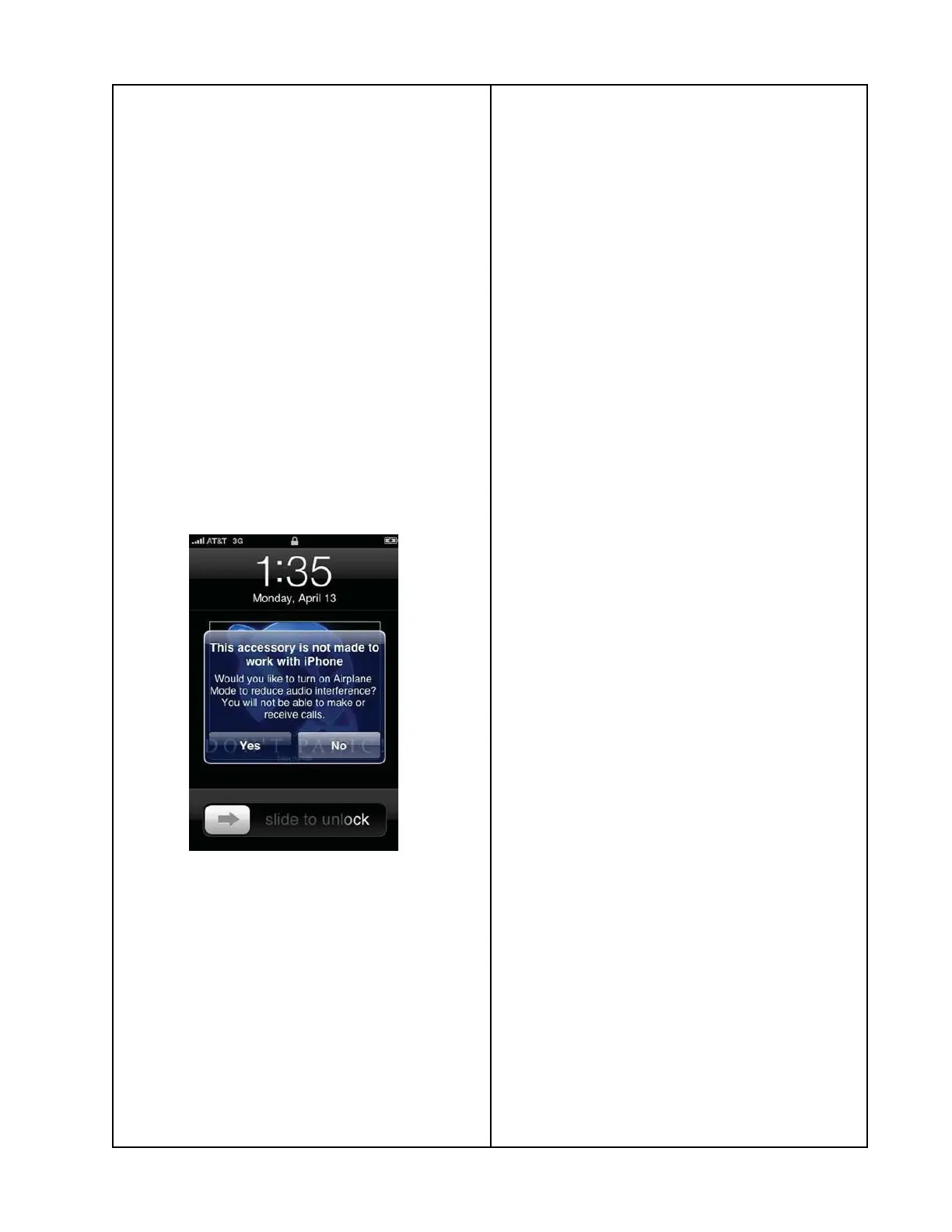

1.3 Confirm the following message does not
appear on the iPhone screen.
Note: If this screen appears on the display,
re-dock the iPhone to determine if the prob-
lem appears again. It is normal to see this
screen on an occasional basis.
2. iPhone Functional Test
2.1 Apply AC power to the SoundDock 10
system. Allow the system to power up by
waiting for the boot beep sound from the
speakers.
2.2 Place the iPhone on the dock.
2.3 Press the play button on the remote,
adjust the volume to a moderate level.
Confirm audio is clean and no distortion can
be heard.
2.4 Use the volume control on the iPhone
touch screen. Confirm the volume goes up
and down as the volume control on the
display is adjusted.
