Bose SoundDock 10 Service Manual

21

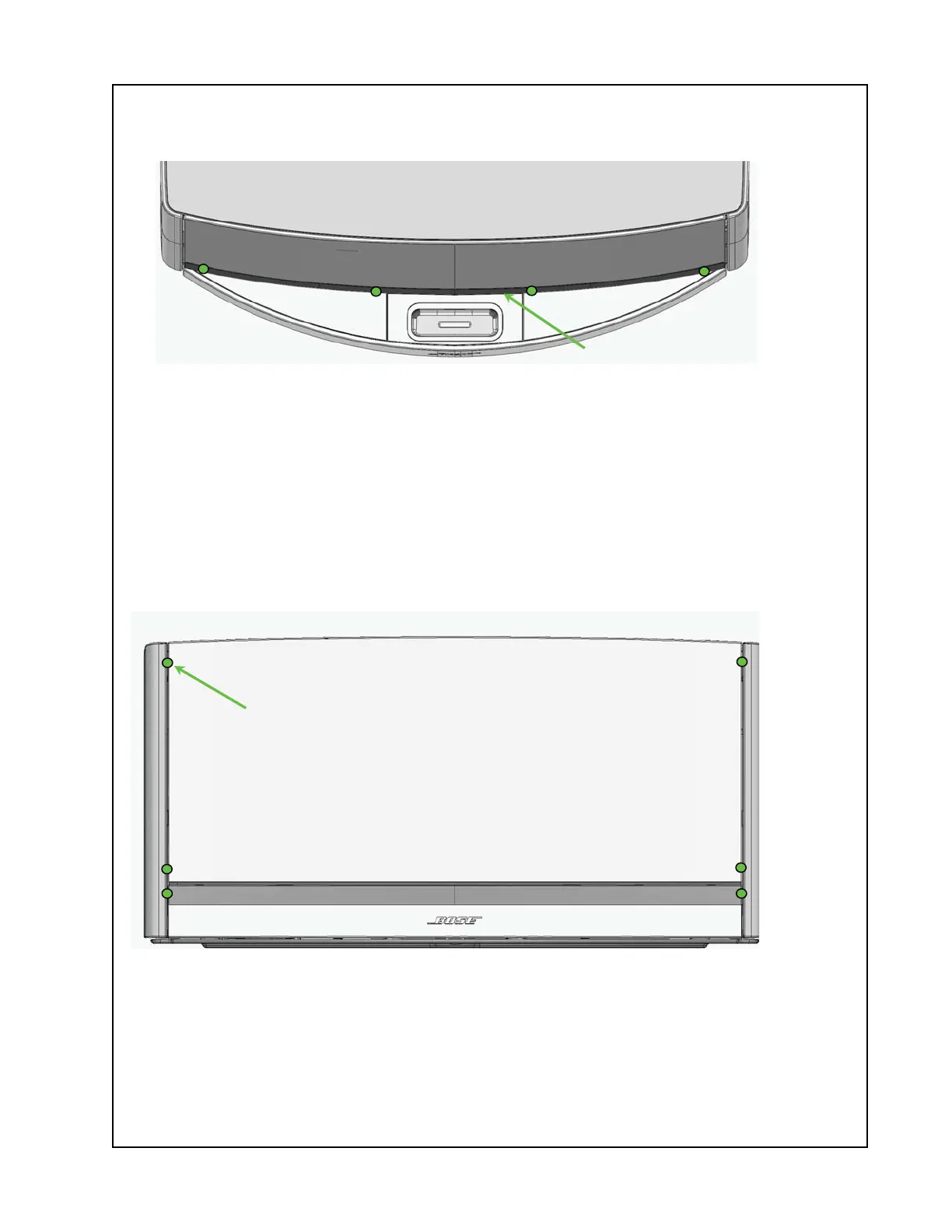

COSMETIC INSPECTION AFTER REPLACEMENT OF
DOCK FRAME AND/OR THE END CAPS
Dock to Lens Gap 1.25 ± 0.9
Variation 1.00
9. Dock to Grille Lens Measurement
When replacing the Dock Frame assembly (item 36 on page 8) of the SoundDock
®
10, the
distance between the dock and the lens may fall out of specification. The measurement
between the dock and the lens is critical to the operation of the system. If the dock and the
lens are too close together, buzzing from the assembly and skipping from the iPod is possible.
To avoid these issues, ensure the distance between the dock and lens is 1.25mm +/- .09mm.
It may be necessary to disassemble and reassemble dock to align it correctly.
10. End Cap to Grill Measurement
When an endcap (item 10 or 13 on page 8) is replaced on the SoundDock 10, the distance
between the grille and the endcap may fall out of the 1.25mm specification. During reassem-
bly, ensure the distance between the endcap and the grille is 1.25mm +/- 0.75mm. It may be
necessary to disassemble and reassemble the endcap to align it correctly.
Grille to Endcap 1.25 ± 0.75
Variation 0.50
Left to Right Side 1.16

Bose SoundDock 10 Specifications

General

Frequency range	- Hz
RMS rated power	- W
Audio output channels	- channels
Bluetooth	Yes
Composite video out	1
Headphone connectivity	-
FM radio	No
Apple docking compatibility	iPhone, iPod
Dimensions (WxDxH)	432 x 244 x 221 mm
Cables included	AC
Product color	Silver

Weight and Dimensions

Weight	8400 g
