Bose SoundDock 10 Service Manual

Bose Corporation; The Mountain, Framingham, MA. 01701-9168
Service documentation available online at http://serviceops.bose.com
SERVICE BULLETIN
Date Issued: 10/25/09
Bulletin Part Number: 309505-SB1
Product: SoundDock
®
10 Digital Music System
Subject: Improper assembly of the dock frame after repair is performed.
Disposition: This is a potential problem each time the system is disassembled and reassembled.
Symptom: Buzz sound from assembly or video skipping on iPod caused by incorrect assembly.
Solution: When assembling the system, follow the specification measurements documented below.
Rev. 00

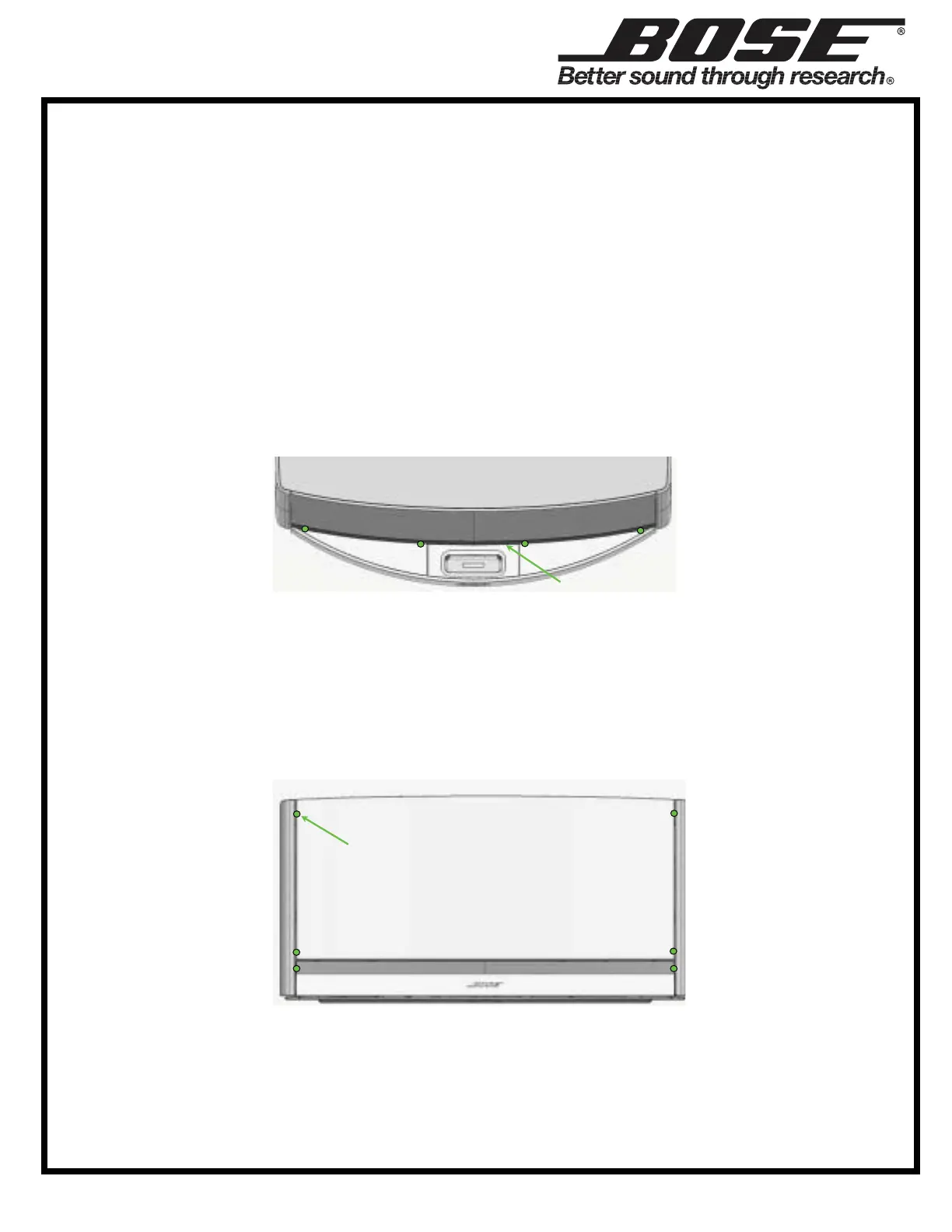

Dock to Lens Gap 1.25 ± 0.9
Variation 1.00
Grille to Endcap 1.25 ± 0.75
Variation 0.50
Left to Right Side 1.16
When the endcap is removed from the SoundDock 10, the distance between the grille and the endcap may fall
out of the 1.50mm specification. During reassembly, ensure the distance between the endcap and the grille is
1.50mm +/- 0.75mm. It may be necessary to disassemble and reassemble the endcap multiple times to align it
correctly.
During reassembly of the SoundDock 10, the distance between the dock and the lens may fall out of specifica-
tion. The measurement between the dock and the lens is critical to the operation of the system. If the dock and
the lens are too close together, buzzing from the assembly and skipping from the iPod is possible. To avoid
these issues, ensure the distance between the dock and lens is 1.5mm +/- .09mm. It may be necessary to
disassemble and reassemble dock multiple times to align it correctly.

Bose SoundDock 10 Specifications

General

Frequency range	- Hz
RMS rated power	- W
Audio output channels	- channels
Bluetooth	Yes
Composite video out	1
Headphone connectivity	-
FM radio	No
Apple docking compatibility	iPhone, iPod
Dimensions (WxDxH)	432 x 244 x 221 mm
Cables included	AC
Product color	Silver

Weight and Dimensions

Weight	8400 g
