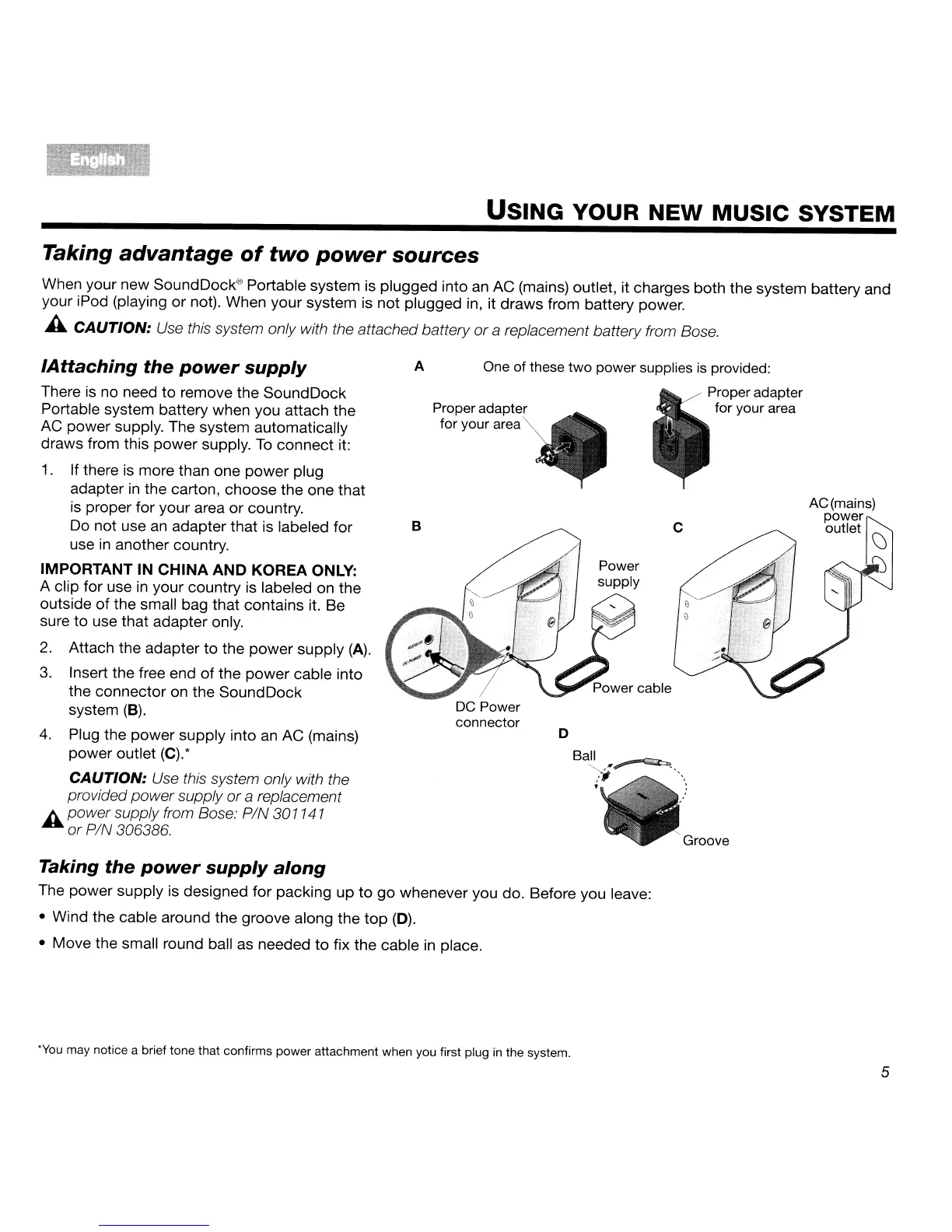

USING
YOUR
NEW
MUSIC
SYSTEM
Taking advantage
of
two
power
sources
When your new SoundDock® Portable system is plugged into an AC (mains) outlet, it charges
both
the system battery and
your iPod (playing
or
not). When
your
system is
not
plugged in, it
draws
from battery power.
A CAUTION: Use this system only with the attached battery
or
a replacement battery from Bose.
c
AC(mains)
power~
outlet
~
Groove
Power
supply
D
Ball
~
~.~~
---<.
:~
'.
. :
DC Power
connector
One
of
these
two
power
supplies is provided:
Proper
adapter
Proper
adapter
for
your
area
for
your
area
A
B
IAttaching
the
power
supply
There is no need
to
remove the Sound
Dock
Portable system battery when you attach the
AC
power
supply. The system automatically
draws from this
power
supply.
To
connect
it:
1. If there is more than one
power
plug
adapter
in
the carton,
choose
the one
that
is proper
for
your
area
or
country.
Do
not
use an adapter
that
is labeled
for
use
in
another country.
IMPORTANT
IN
CHINA AND KOREA
ONLY:
A clip for use
in
your country is labeled on the
outside
of
the small bag that contains it. Be
sure
to
use
that
adapter
only.
2.
Attach the adapter
to
the
power
supply
(A).
3.
Insert the free end
of
the
power
cable into
the
connector
on the
SoundDock
system
(B).
4.
Plug the
power
supply into an AC (mains)
power
outlet
(C).
*
CAUTION: Use this system only with the
provided power supply
or
a replacement
A power supply from Bose: PIN 301141
or
PIN 306386.
Taking
the
power
supply
along
The
power
supply is designed
for
packing
up
to
go
whenever you do. Before you leave:
• Wind the cable around the groove along the
top
(D).
•
Move
the small round ball as needed
to
fix the cable in place.
'You may notice a brief tone that confirms power attachment when you first plug in the system.
