Connecting Other Equipment

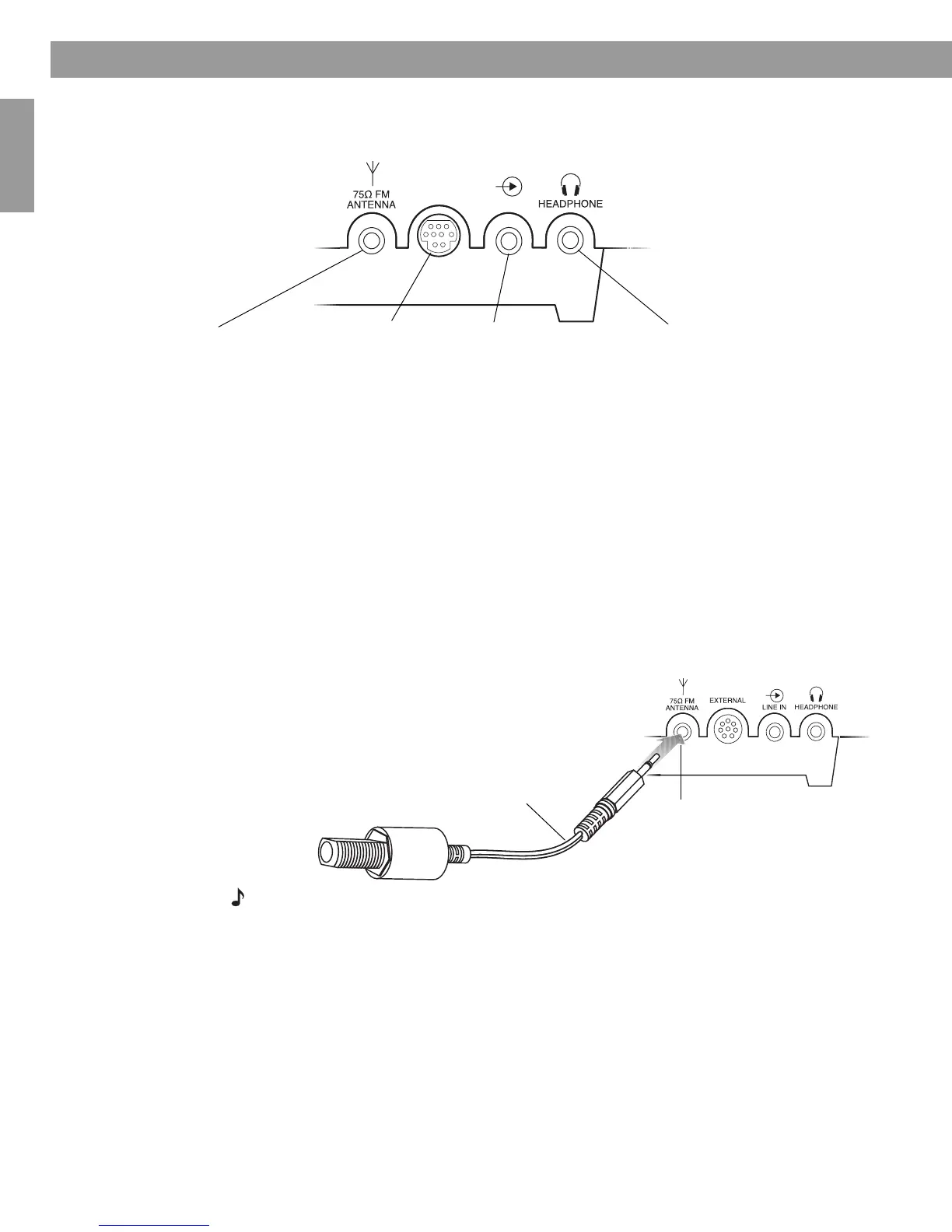

Rear panel input/outputs
The rear panel of your Wave
®
radio II provides connections for external equipment.
Connecting an external FM antenna
The Wave
®
radio II power cord includes a built-in FM antenna. If, after adjusting the position
of the power cord, you still experience poor reception, you may connect the system to an
external roof or cable antenna or an FM dipole antenna. An adapter is included for
connecting the system to an external roof or cable antenna, and an external FM dipole
antenna can be ordered through Bose
®
Customer Service. See the phone numbers listed
inside the back cover of this guide.
To connect an external roof or cable antenna using the antenna adapter:
• Plug the 3.5 mm (
1
/8") plug of the antenna adapter into the 75Ω FM ANTENNA connector on
the rear panel of your Wave
®
radio II.
• Connect the other end of the adapter to your external roof or cable antenna cable.
Note: Connecting the system to an external roof or cable antenna disables the built-in antenna,
and the FM signal will only be received through the external antenna. Disconnecting the external
antenna reactivates the built-in antenna
Bose link
AUX IN
EXTERNAL
75Ω FM ANTENNA
A 3.5 mm (
1
/8") FM
antenna connector.
Bose
®
link connector
Connects to Bose
®
link-
enabled Lifestyle
®
systems.
AUX IN
A 3.5 mm (
1
/8") stereo input
connector for connecting
external sources.
HEADPHONE
A 3.5 mm (
1
/8") stereo headphone
connector. The Wave
®
radio II
speakers are muted when
headphones are connected.
75Ω FM ANTENNA connector
Antenna adapter
00.WRII_UKE.book Page 14 Tuesday, July 28, 2009 8:43 AM

Bose Wave Radio II Specifications

General

Tuner	AM/FM
Display	LCD
Clock	Yes
Alarm	Yes
Sleep Timer	Yes
Outputs	Headphone jack
Remote Control	Yes
Audio Output	Stereo
Type	Tabletop
Inputs	Auxiliary
Presets	6 AM, 6 FM
Speaker Type	Built-in
