Connections

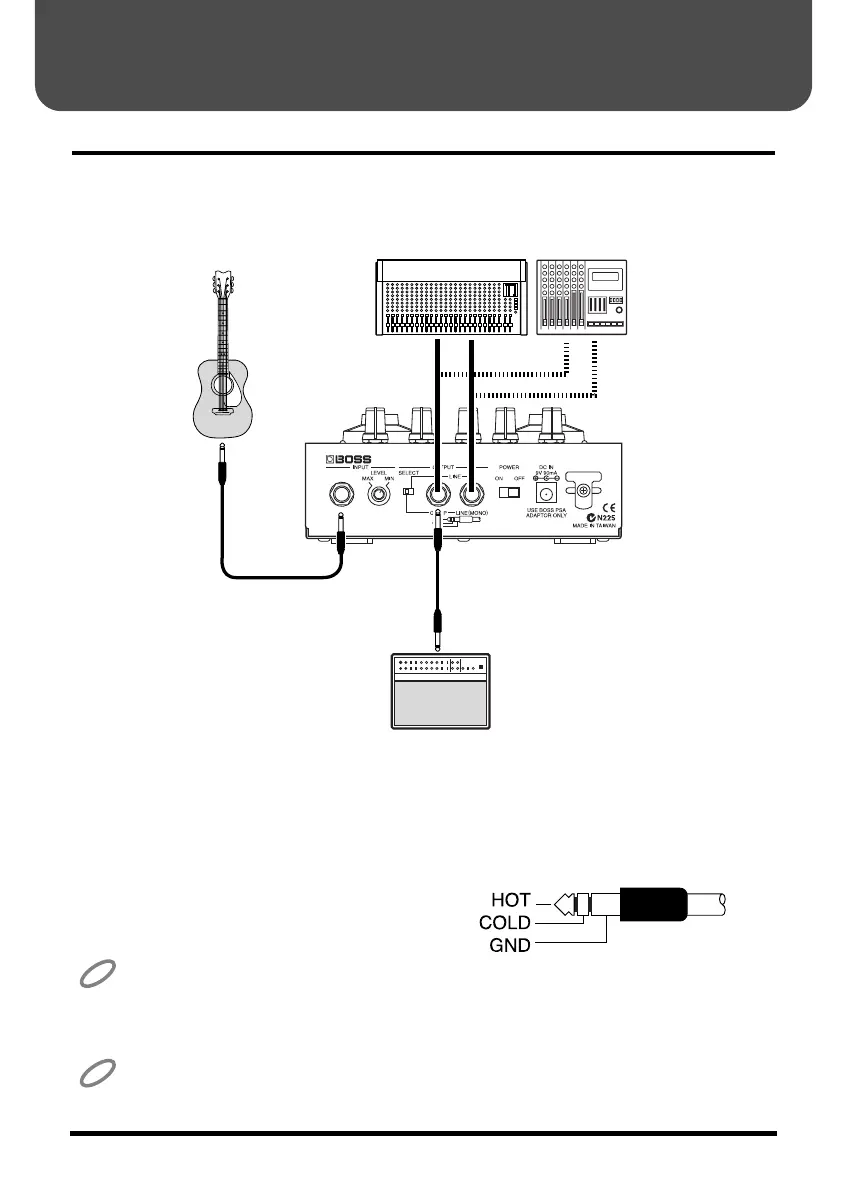

Connect your guitar and amp to the AD-3 as shown below.
fig.2
Electric Acoustic Guitar
Mixer Multi-track Recorder
Guitar Amplifier
Getting Ready to Play
9
If you’re using a guitar amp, connect the OUTPUT
R jack to the guitar amp and set the OUTPUT
SELECT switch to G.AMP.
If you’re using stereo output and connecting the
AD-3 to an audio amp, a mixer, a multi-track
recorder, or the like, set the OUTPUT SELECT
switch to LINE.
To prevent malfunction and/or damage to
speakers or other devices, always turn down
the volume, and turn off the power on all
devices before making any connections.
Turn on the power on all connected equip-
ment before you turn up the volume on your
amplifier.
The AD-3 supports balanced output. For balanced
output, use a commercially available stereo stan-
dard cord or a stereo (standard) ↔ Canon conver-
sion cord.
fig.3
