Boss DS-1 User Manual

8
OPERATING THE UNIT

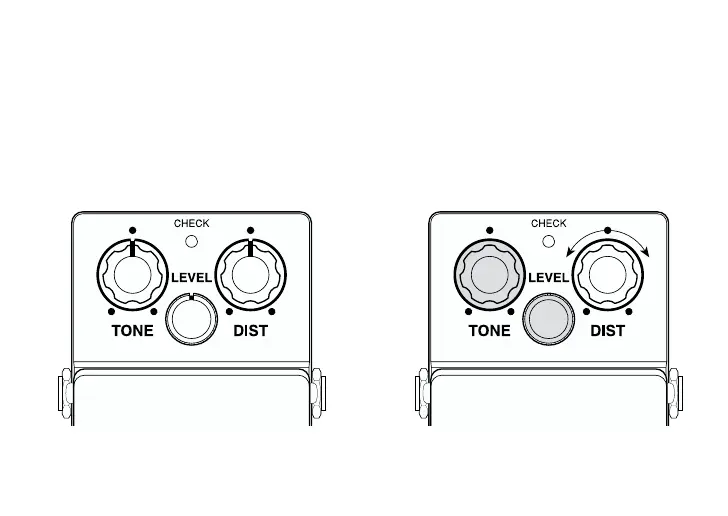

1.After you have made the necessary con-
nections, set the knobs as shown in the
illustration.
2.Depress the pedal switch to turn the
effect on. (Make sure that the CHECK
Indicator lights.)
3.Adjust the depth of distortion with the
DISTORTION Knob.

Boss DS-1 Specifications

General

Effect Type	Distortion
Controls	Level, Tone, Distortion
Bypass	Buffered Bypass
Input Impedance	470 kOhms
Output Impedance	1 kOhm
Current Draw	4 mA
Input	1/4 inch jack
Output	1/4 inch jack
Power Supply	9V DC, 9V battery
Weight	400 g
Connectors	Input jack, Output jack
Dimensions	73mm (W) x 129mm (D) x 59mm (H)
