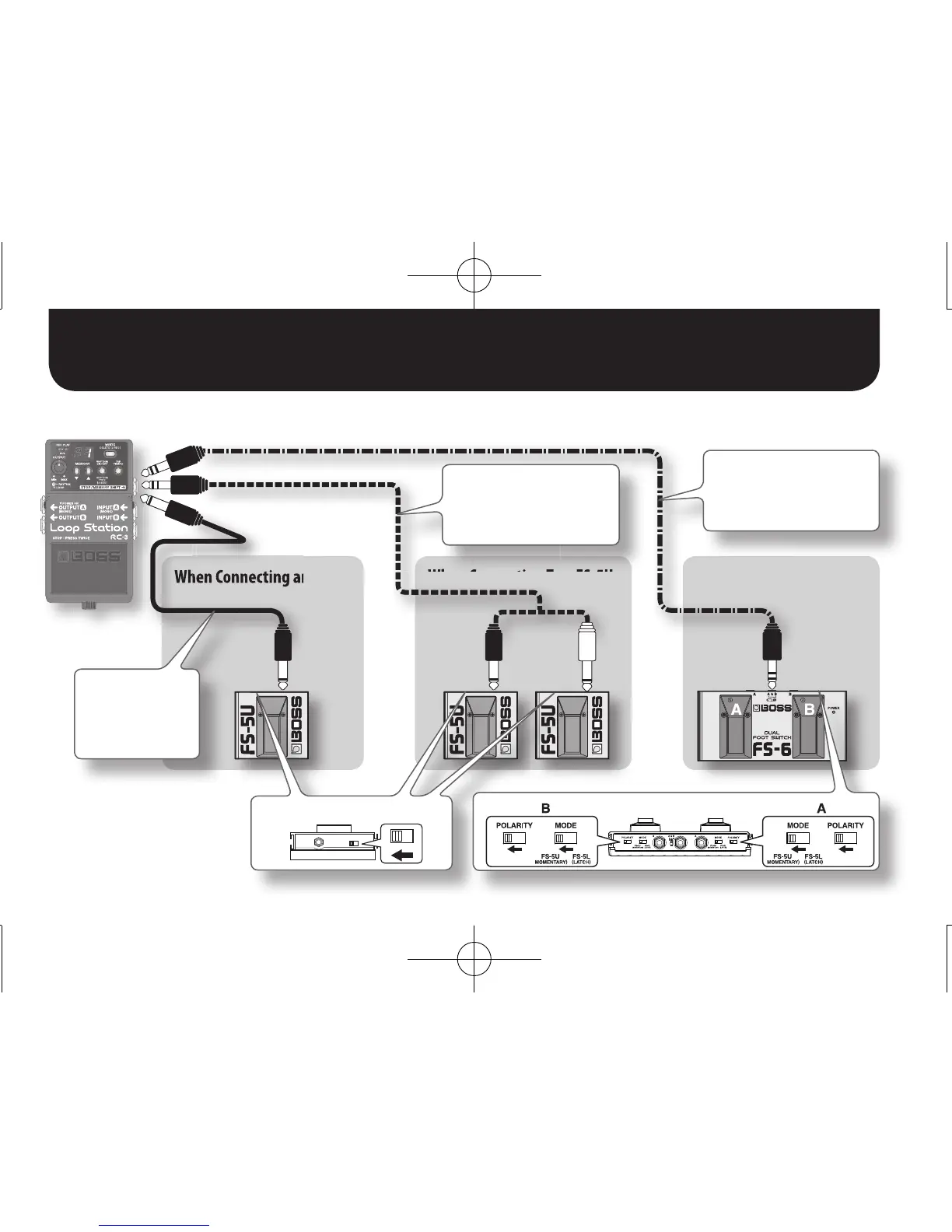

Connecting to an External Footswitch
Connect your foot switch to the STOP/MEMORY SHIFT jack as shown in the illustration, and set its POLARITY switch.
POLARITY switch
When Connecting an FS-5U
When Connecting Two FS-5Us
When Connecting an FS-6
When Connecting an FS-5U
When Connecting an FS-5U
When Connecting an FS-5U
Cable:
Stereo 1/4” phone type
g
Stereo 1/4” phone type
When Connecting Two FS-5Us
When Connecting Two FS-5Us
Cable:
Stereo 1/4” phone type
g
1/4” phone type x 2
MODE/POLARITY switch
Cable:
1/4” phone type
g
1/4” phone type
oror
