ENGLISH
9
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.

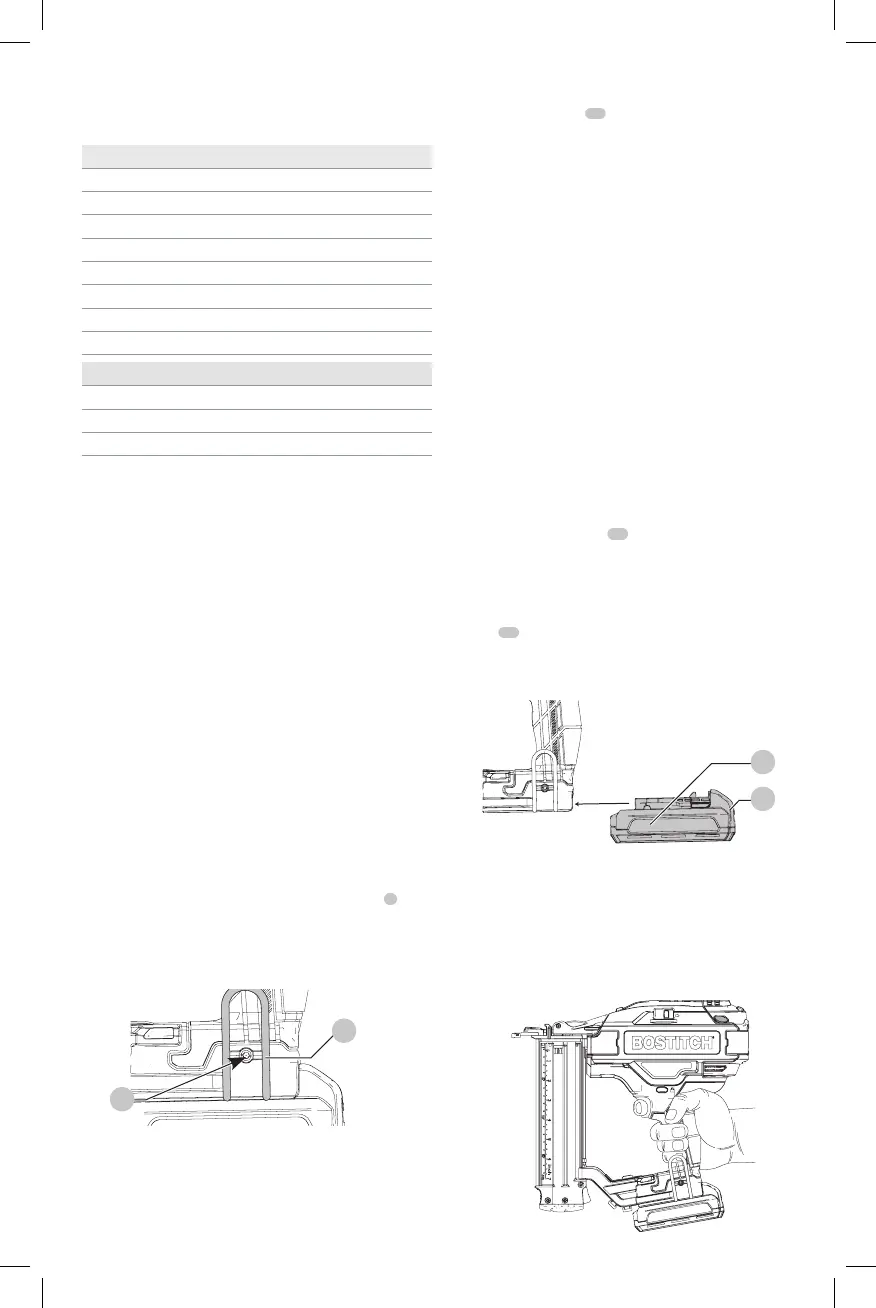

Tool Specifications
Firing Mode Selectable: Sequential or Bump
Voltage 20
Height 12" ( 30.4 cm)
Width 3.7" (9.3 cm)
Length 10.7" (27.1 cm)
Weight (without battery) 5.4 lbs (2.44 kg)
Magazine Angle Straight
Loading Capacity 110 nails
Nail Specifications
Straight Nail Lengths 5/8" – 2 1/8" (16 mm – 54 mm)
Shank Diameters 18 gauge
Nail Stick Angles Straight
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Belt Hook (Fig. D)

WARNING: Remove nails from magazine before
making any adjustments or servicing this tool.
Failure to do so may result in seriousinjury.

WARNING: Disconnect battery pack from tool
before making any adjustments, changing
accessories, servicing, or moving the tool. Such
preventative safety measures reduce the risk of
starting the toolaccidentally.

CAUTION: When not in use, place tool on its side
on a stable surface where it will not cause a
tripping or falling hazard. Some tools with large
battery packs will stand upright on the battery pack
but may be easily knockedover.
The cordless nailers include an integrated belt hook
9
and
can be attached to either side of the tool to accommodate
left- or right-handedusers.
If the hook is not desired at all, it can be removed from
thetool.
Fig. D
9
18
To Remove Belt Hook
1. Remove battery pack fromtool.
2. To switch the tool from right- to left-hand usage simply
remove the screw
18
from the opposite side of the tool
and reassemble on the otherside.
3. Replace batterypack.
OPERATION

WARNING: If the tool has been dropped or you
suspect tool damage perform tool operation check as
defined in the mode selection section of the manual.
If it doesn’t perform according to the manual, stop
using the tool and have it serviced at an authorized
BOSTITCH service center.

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. E)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
14
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
15
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. E
14
15
Proper Hand Position (Fig. F)

WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position asshown.

WARNING: To reduce the risk of serious personal
injury, ALWAYS hold securely in anticipation of a
suddenreaction.
Fig. F
