Bostitch D62ADC Original Instructions

Push forward until stopping on blade guide, swing cover closed and slightly squeeze to engage magazine
bosses. Check positive engagement.
DEPTH ADJUSTMENT (All models) (Fig 3)
To adjust the tool for different leg lengths, loosen set-screw (A) and turn dial 180° (B) with a screwdriver to the
desired position as noted in the tables at the front of this manual. Tighten set-screw.
LOADING THE TOOL - DS-3219, DS-3519, DS-3522, DS-SW19, DS-SW22, MS-3219, MS-3519, MS-3522, MS-SW19, MS-SW22
A. Pull the pusher to the back of the magazine. (Fig 4)
B. Check Staple Leg Length: Adjustment is provided for different staple leg lengths (see section below).
C. Insert 2 sticks of staples into the channel and gently release the pusher against the staples. (Fig 5)
CLINCH ADJUSTMENT
D62ADC, RAB-19, RAB-22, DS-3219, DS-3519, DS-3522, DS-SW19, DS-SW22 (Fig 6)
MS-3219, MS-3519, MS-3522, MS-SW19, MS-SW22 (Fig7):
Turn special nut (A) through window clockwise to tighten clinch and counter-clockwise to loosen clinch. Use a
tool to fit 1/8” (3mm) hole.
Depth Adjustment D62ADC, RAB-19, RAB-22, DS-3219, DS-3519, DS-3522, DS-SW19, DS-SW22 (Fig. 8):
Loosen front screw (A) and adjust to desired depth. When top edge of adjustment plate (B) is at highest setting
(No. 4), the clinches are at their shallowest penetration. If set at lowest setting (No. 1), the clinchers are at their
deepest penetration.
Note: Tighten screw before firing tool.
OPERATING THE TOOL (Fig. 9):
Grasp handle with one hand. Position on box in line with the desired staple location. There is a small projection
on either side of the frame as an aid in locating the position of the staple. Press trigger or pull handle depending
on the model. Move machine to next staple location with or without releasing the trigger.
Strongest closure requires end staples close to end of box. Check packaging requirements.
Check staple clinching in samples of board being used. Adjustments for depth of penetration and tightness of
clinch are easy and instantaneous- full advantage should be taken of them.
JAM CLEARANCE
Jammed Staple Removal - D62ADC, RAB-19, RAB-22 (Fig. 10):
Jams can be cleared by pulling the jam release lever to a 90° position. At this position, hold the coil of staples to
prevent movement and use either a long nose plier or a screwdriver to clear jam. Carefully release lever to
prevent staples being trapped between anvil and blade guide.
Jammed Staple Removal - DS-3219, DS-3519, DS-3522, DS-SW19, DS-SW22, MS-3219, MS-3519, MS-3522,
MS-SW19, MS-SW22 (Fig. 11-13):
Remove the remaining stick from the magazine. Pry jam release forward with a screw driver (FIG.11). Remove
magazine (FIG.12). Clear the jam and re-insert the magazine. Pry jam release shut (FIG.13).
SECONDARY HANDLE (MS-3219, MS-3519, MS-3522, MS-SW19, MS-SW22)
These models come with an additional handle to fit on the top of the tool. To fit, position the handle as shown
(Fig 14) and insert and tighten the 4 screws supplied.
FT71764-d-1111_Carton_Closing_Manual:71405_D62ADC Manual 11/30/11 9:28 AM Page 6

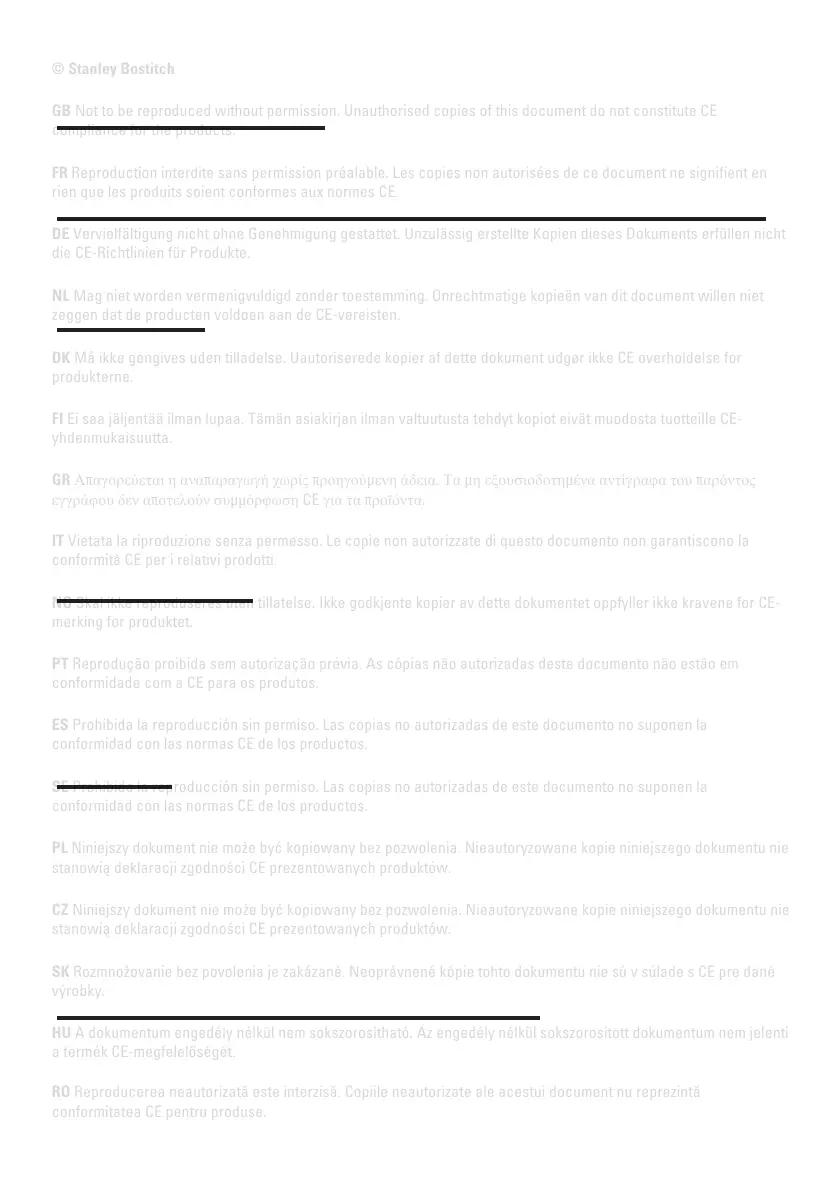

© Stanley Bostitch
