-5-
LOADING THE P50 SERIES STAPLING PLIER
EYE PROTECTION which conforms to ANSI specifications and provides protection against
flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator
and others in the work area when connecting to air supply, loading, operating or servicing
this tool. Eye protection is required to guard against flying fasteners and debris, which
could cause severe eye injury.
The employer and/or user must ensure that proper eye protection is worn. Eye protection
equipment must conform to the requirements of the American National Standards Institute,
ANSI Z87.1 and provide both frontal and side protection. NOTE: Non-side shielded
spectacles and face shields alone do not provide adequate protection.
TO PREVENT ACCIDENTAL INJURIES:
•Never place a hand or any other part of the body in nail discharge area of tool while
the air supply is connected.
• Never point the tool at anyone else.
• Never engage in horseplay.
•Never pull the trigger unless nose is directed at the work.
•Always handle the tool with care.
• Do not pull the trigger while loading the tool.
• Disconnect the air supply before making adjustments
1) Open The Magazine:
Pull cover back until locked by detent pin.
2) Load Staples:
Insert a stick of staples and push forward in the channel.
Insert a second stick of staples.
3) Close magazine:
Push the lock release tab (located at front of magazine cover) down and push the cover
forward until its locked by the detent pin.
TOOL SPECIFICATIONS
CAUTION: Do not attempt to operate this plier without material between the shuttle and clincher to
avoid damaging the driver tip.
TRIGGER OPERATED:
The Trigger Operated model is cycled by actuation of the trigger ONLY. This model does not have a Contact
Arm and is intended for use only where a Contact Arm CANNOT be used to satify the requirements of the
application. The Trigger Operated tool will cycle each time the trigger is actuated.

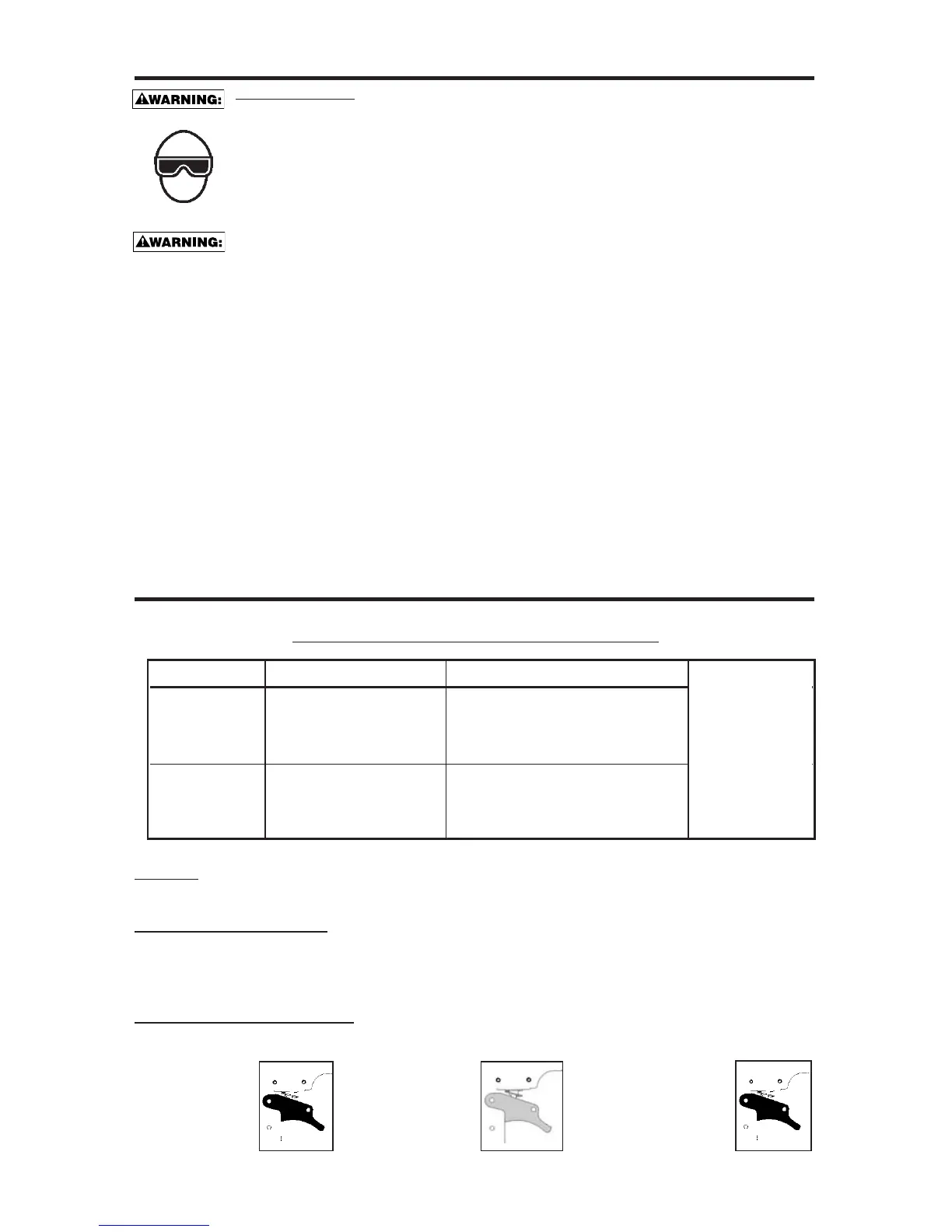

MODEL IDENTIFICATION:
CONTACT TRIP SEQUENTIAL TRIP TRIGGER OPERATED
Identified by: Identified by: Identified by:
BLACK TRIGGER GRAY TRIGGER BLACK TRIGGER
MODEL CLINCHER BLADE STAPLES
P50-10B Standard Clincher 1/2” (12.7mm) Staples SB103020
P50CL-10B L.H. “C” Blade 5/8” (15.9mm) Staples
P50CR-10B R.H. “C” Blade *3/8” (9.5mm) Staples*
(*3/8” Require special shuttle)
P50-10C Standard Clincher SB103020 Staples 3/8” (9.5mm)
P50-5B Standard Clincher SB5019 Staples 3/8” (9.5mm),
1/2” (12.7mm), 5/8” (15.8mm)
NOTE:
Use of ANY
other staple leg
lengths in
these models
will damage
tool.
MODEL P50 SERIES AIR DRIVE PLIER
*3/8” Staples require special shuttle. See foot note; Page 8 or 9
