-8-

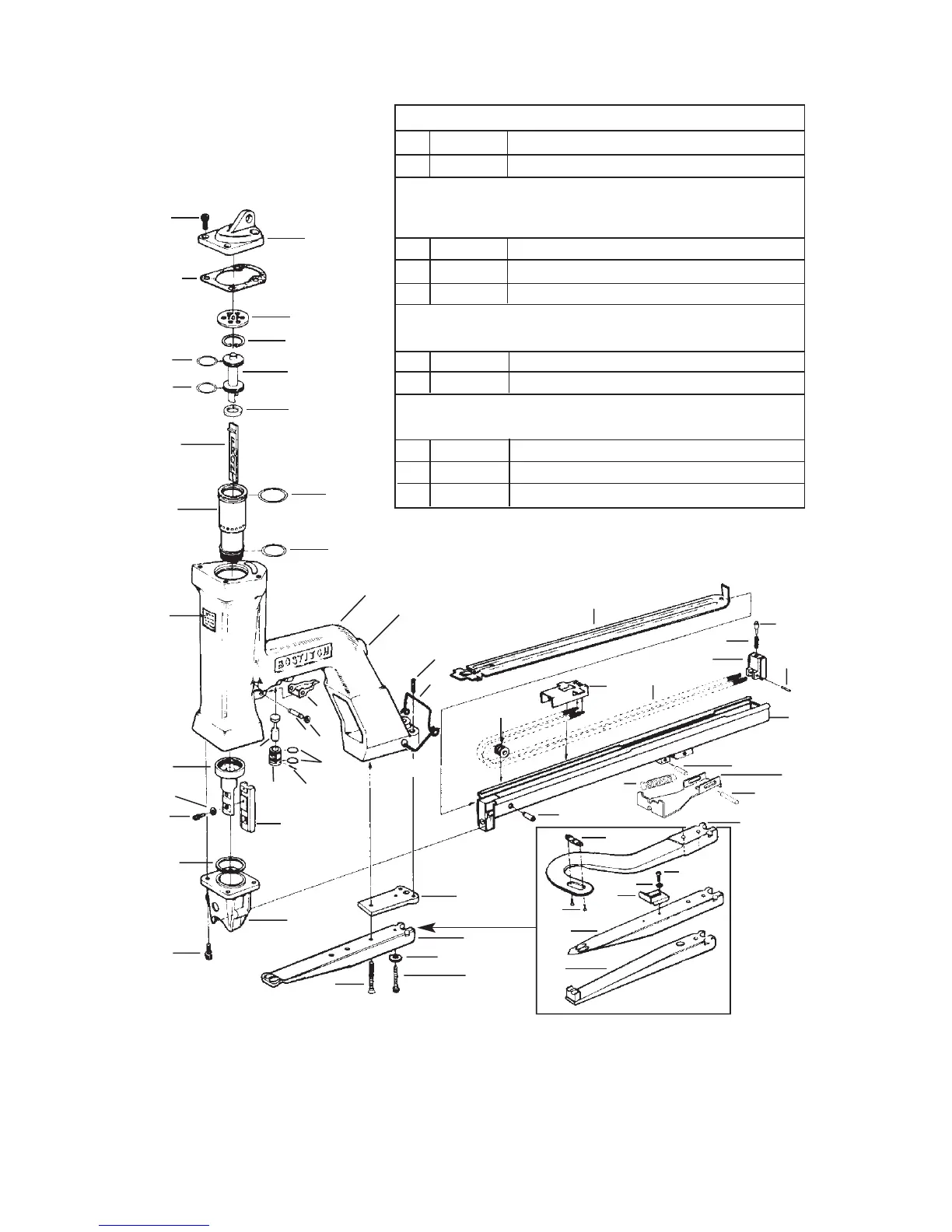

CAUTION: Items 12 and 26 must be assembled in direction
shown. Retaining tooth on driver, and longest side of piston,
must face front of tool. Do not rotate these parts.
PARTS SPECIAL TO “C” BLADE MODELS
45 P50137 Clincher
46 UA1804.7 4-40 X 1/4 Hex Socket Flat Head Screw
KITS - SPECIAL TO ORDER
Back Gauge Kit P50157
(For Models P50-10B and P50P-10B and P50-5B)
47 P50150 Back Gauge
48 UA3806.3 10-32 X 3/8 Hex Socket Head Cap Screw
49 PW10.5 Washer
PART - SPECIAL TO ORDER
(Used only with P50211A Frame)
50 P50152A Mattress Clincher
43 P50151 Spacer
KITS - SPECIAL TO ORDER
(Not Shown)
P50K1 Remote Control Kit with Foot Valve and Clincher
P50181 Remote Control Kit
100348 P50 Magazine Replacement
20
1
18
15
12
10
16
17
19
13
14
26
51
*11
*24
25
22
23
41
43
44
39
42
1
*9
45
29
*46
48
41
57
54
33
31
30
34
32
40
38
6
5
2
3
*28
4
8
7
Air Fitting Thread Size
1/4 NPT
52
27
37
36
35
56
55
49
47
41
50
(R.H. C-BLADE
SHOWN P50117)
* IMPORTANT: SEE SPECIAL MAINTENANCE INSTRUCTIONS, PAGE 7
• NOTE: FOR SB1030203/8 STAPLES USE P50191 SHUTTLE
