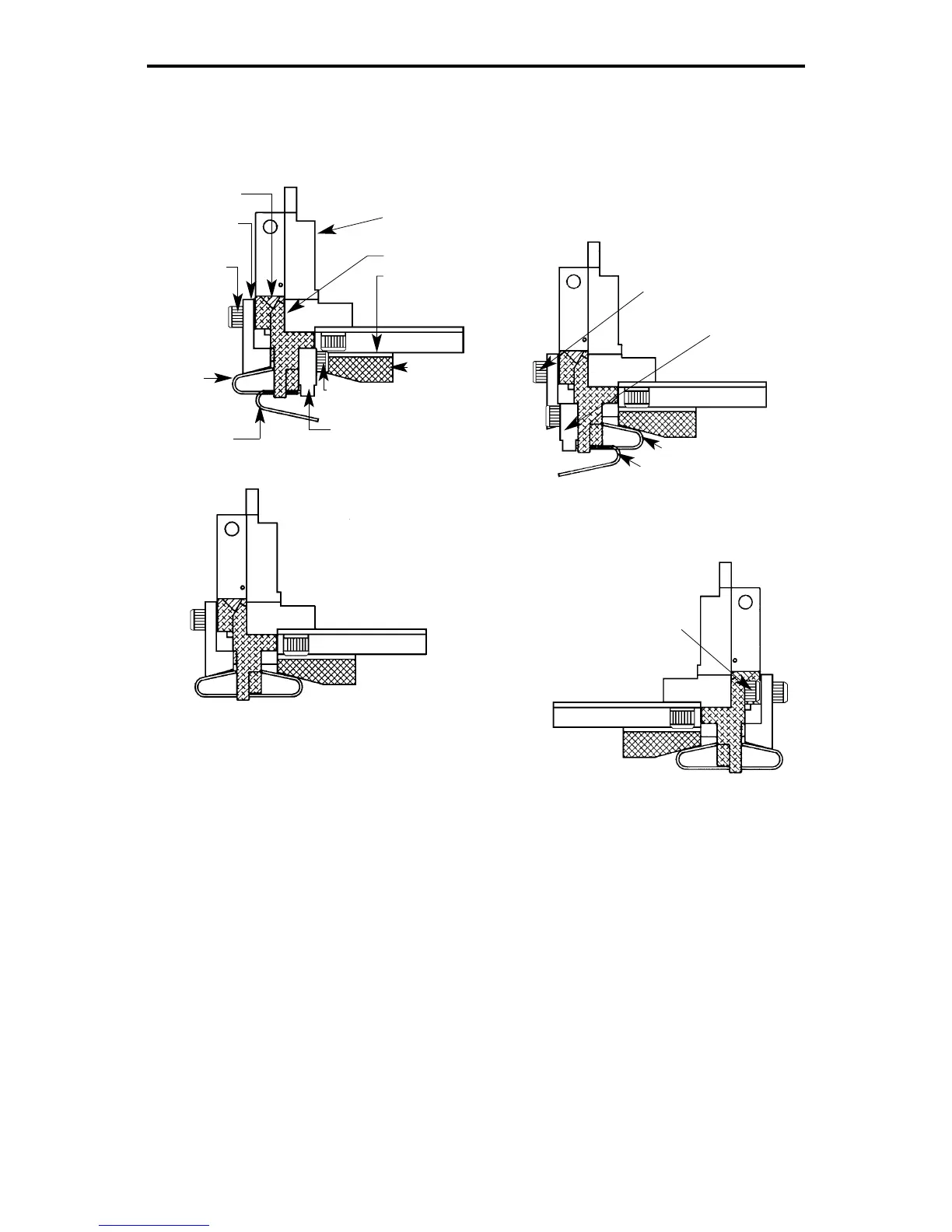

SPRING CLIP MOUNTING OPTIONS
OPTION 1
OPTION 2
OPTION 4 - To Lock Nose Door Shut
OPTION 3
Door Latch
Position #1
Position #2
Clip Guide
Rear Mount
Clip Guide
Front Mount
Clip Support
(front)
Adjust up/down
for clip size
Clip Support (Rear)
M4 x 16 Screw
and Washer
Same as Option 1 except Spring Clips are
mounted in reverse position
Same as Option 1 except Clip Guide is removed to
allow both Front and Rear Spring Clip mounting
options.
NOTE: Second staple must be positioned by eye.
Same as Options 1, 2 and 3 except the Nose
Door is fastened to the Nose with an M4 x 10
Screw
M4 x 10 Screw 1 Required Locks Nose
Door to Nose, but eliminates the anti-jam
Door Latch feature.
Shim (Remove)
for larger
Spring Clip)
Nose Door
Nose
M4 x 12 Screw
and Washer
1 Required
M4 x 12 Screw
2 Required
M4 x 12 Screw
2 Required
Spring Clip
Position #1
First Staple
Spring Clip
Position #2
Second Staple
-11-
