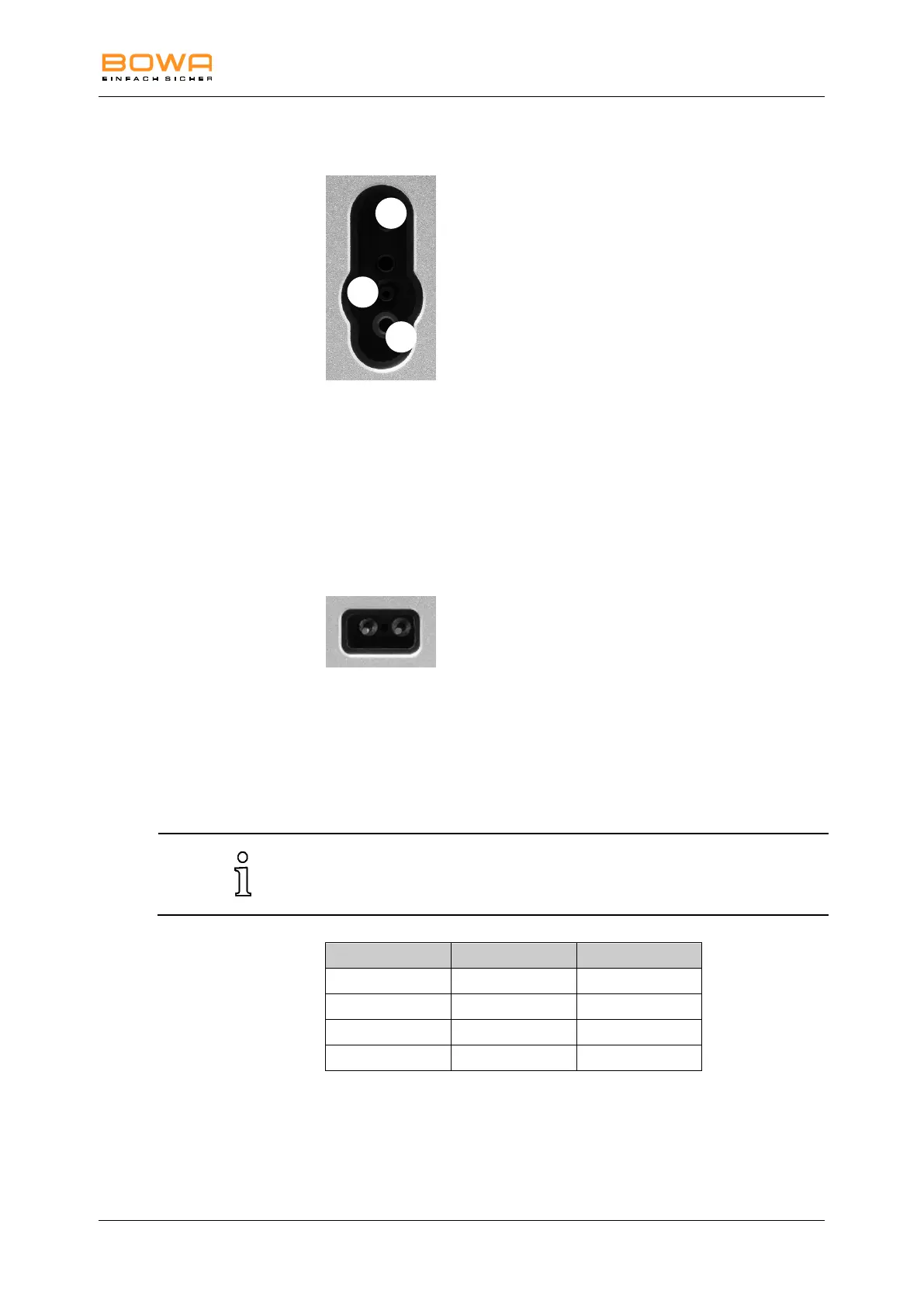

3.3. Monopolar/bipolar multifunction socket
a BOWA multifunction (monopolar and bipolar)
3-Pin US type (monopolar)
b Martin (bipolar)
c 4 mm (monopolar, foot switched)
The multifunction socket 1 allows the connection of a monopolar
instrument with hand or foot switching, or a bipolar instrument with foot
switching.
The BOWA multifunction cable REF 220-345 for ARC 100 combines a
monopolar handpiece and the connecting cable for bipolar forceps in
one connection.
3.4. Connection socket for neutral electrode
US-type neutral
Applied part of Type F according to IEC 60601-1
The neutral electrode connector socket is suitable for neutral electrode
plugs with two sockets.
3.5. Activation and alarm signals in monopolar and
bipolar mode
The volume of the activation signal should be increased as necessary by
turning the knob 28 for use in relatively noisy surroundings. The alarm
sound and the startup melody cannot be changed.
Mode
Frequency (Hz)
Signal type
Monopolar Cut
635
Continuous sound
Monopolar Coag
475
Continuous sound
Bipolar Coag
505
Continuous sound
Alarm
-
Beep sound
