11.2. Power, voltage and current charts
Monopolar cutting – Pure
Values measured using non-inductive resistors

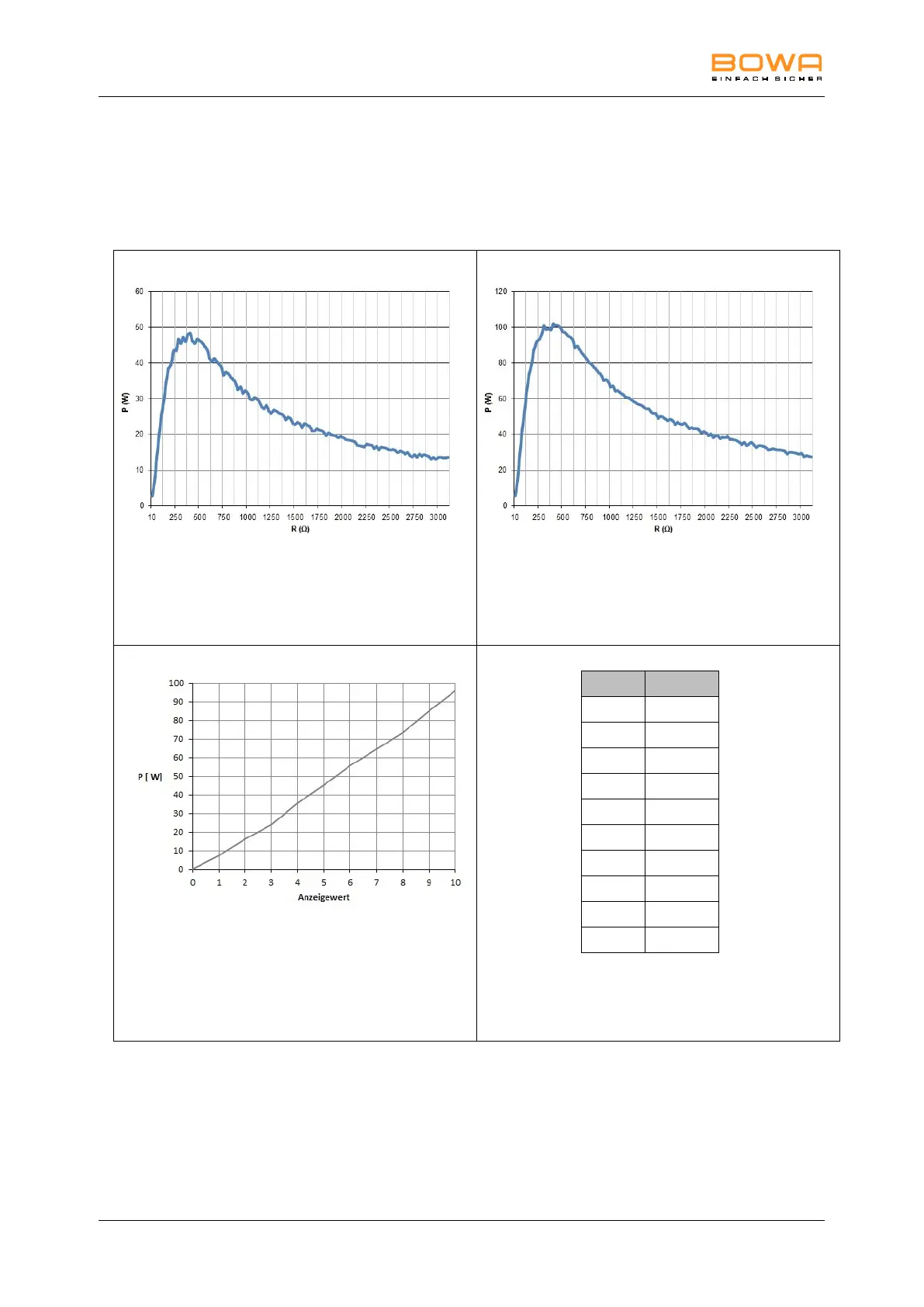

 Graph of output power P [W] as a
function of the load resistance R [] for
the "Monopolar Cutting Pure" setting =
50 W
Values measured using non-inductive resistors
 Graph of output power P [W] as a
function of the load resistance R [] for
the "Monopolar Cutting Pure" setting =
100 W
 Graph of output power P [W] as a
function of the "Monopolar Cutting
Pure" setting. Design load resistance =
500 
Level
U (Vp)
1
300
2
480
3
600
4
730
5
810
6
950
7
1100
8
1200
9
1260
10
1380
 Table of HF output voltage U [Vp] as a
function of the "Monopolar Cutting
Pure" setting (no load)
