Legend
4 ARC 100 Operating Manual 900-100_IFU-V1.0_11587-S0-20141209-EN
Legend

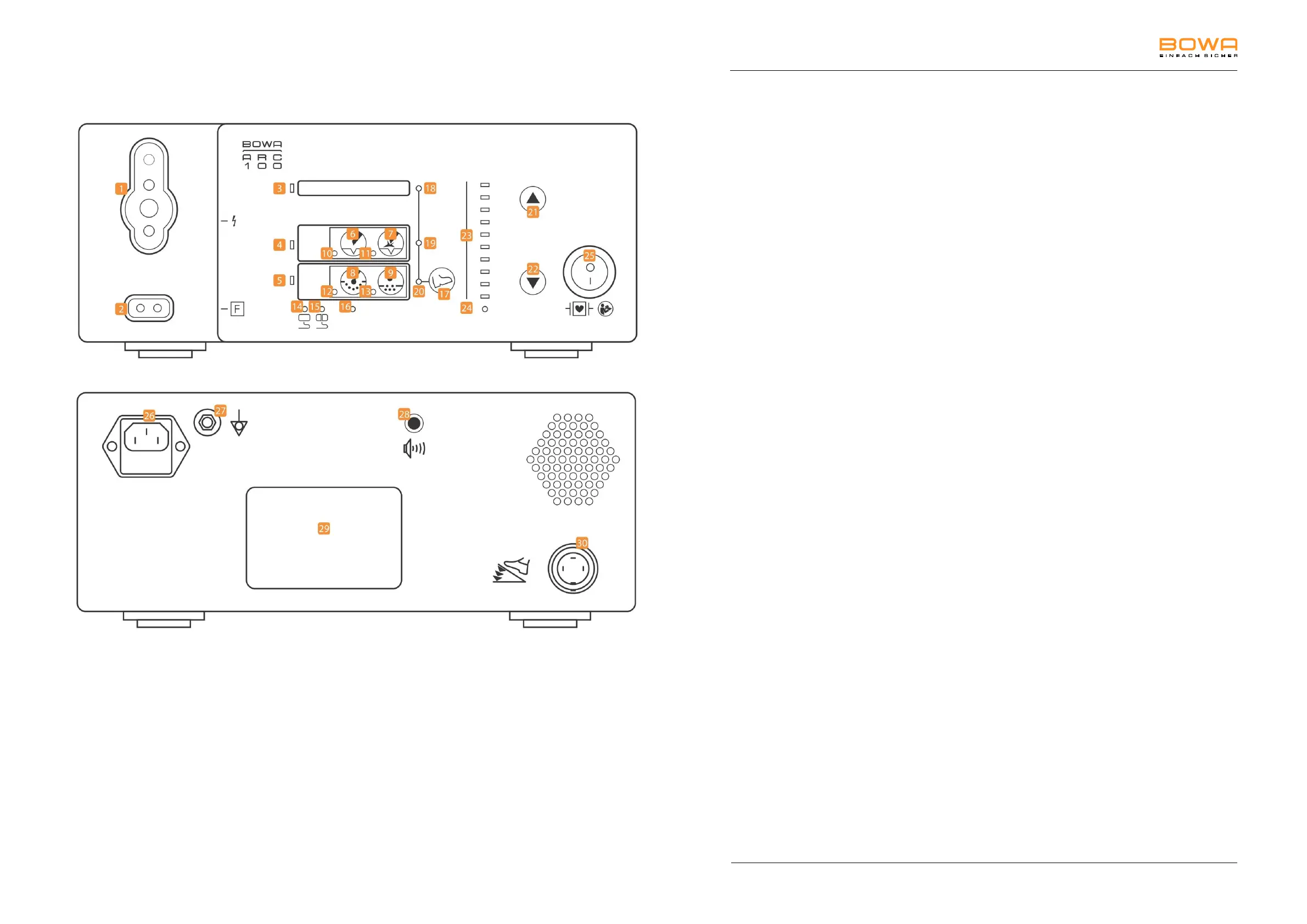

Front of ARC 100
1
Multifunction connection socket for monopolar instruments
with hand or foot switch or bipolar instruments with foot
switch *
2
Socket for the neutral electrode (NE) *
3
Activation indicator for bipolar coagulation (blue)
4
Activation indicator for monopolar cutting (yellow)
5
Activation indicator for monopolar coagulation (blue)
6
Key for "Pure" monopolar cutting current
7
Key for "Dry" monopolar cutting current
8
Key for "Moderate" monopolar coagulation current
9
Key for "Forced" monopolar coagulation current
10
Indicator for "Pure" monopolar cutting current
11
Indicator for "Dry" monopolar cutting current
12
Indicator for "Moderate" monopolar coagulation current
13
Indicator for "Forced" monopolar coagulation current
14
Neutral electrode monitoring, non-split
15
EASY neutral electrode monitoring, split
16
Indicator for EASY neutral electrode "Alarm" fault status
17
Key for foot switch assignment
18
Indicator for foot switched bipolar coagulation
19
Indicator for foot switched monopolar cutting
20
Indicator for foot switched monopolar coagulation
21/22
Keys for adjusting the power limitation
23
Power limitation indicator
24
Indicator for "Error" fault status
25
On/off switch
Rear of ARC 100
26
IEC chassis-mount power connector
27
Connection for equipotential bonding
28
Knob to adjust volume
29
Rating label
30
Connection socket for foot switch
*
Applied part of Type F according to IEC 60601-1
