Bowa NightKNIFE - Maintenance and Sterilization; Dismantling the Instrument

6 Dismantling
28 NightKNIFE / Ligator MN031-447-S0-20101217-EN
6. Dismantling
Pos: 10 /679-BOWA/HF-I nstrumente/Ligator "NightKNIFE"/6. 1 Demontage des Ligationsi nstruments @ 5\mod_1277986 236871_6.doc @ 40729 @ 2
6.1. Dismantling the ligation instrument
1. Disconnect the HF cable D from the handle C.
2. Press and hold the buttons C4 and the locking lever C2
on the handle C, then pull the handle off the shank
tube B.
3. Unscrew the jaw insert A from the shank tube B.
4. For NightKNIFE with exchangeable blade: Using the
insertion aid E, remove the blade (see section 6.1,
page 28).
Pos: 11 /679-BOWA/HF-I nstrumente/Ligator "NightKNIFE"/6. 2 Einwegklinge entfernen @ 5\mod_1277986427699_ 6.doc @ 40747 @ 2
6.2. Removing the blade with the insertion aid
(only for NightKNIFE with exchangeable
blade)
1. Rotate the jaw insert A with the fixed jaw A1 facing
upward to open the jaws.

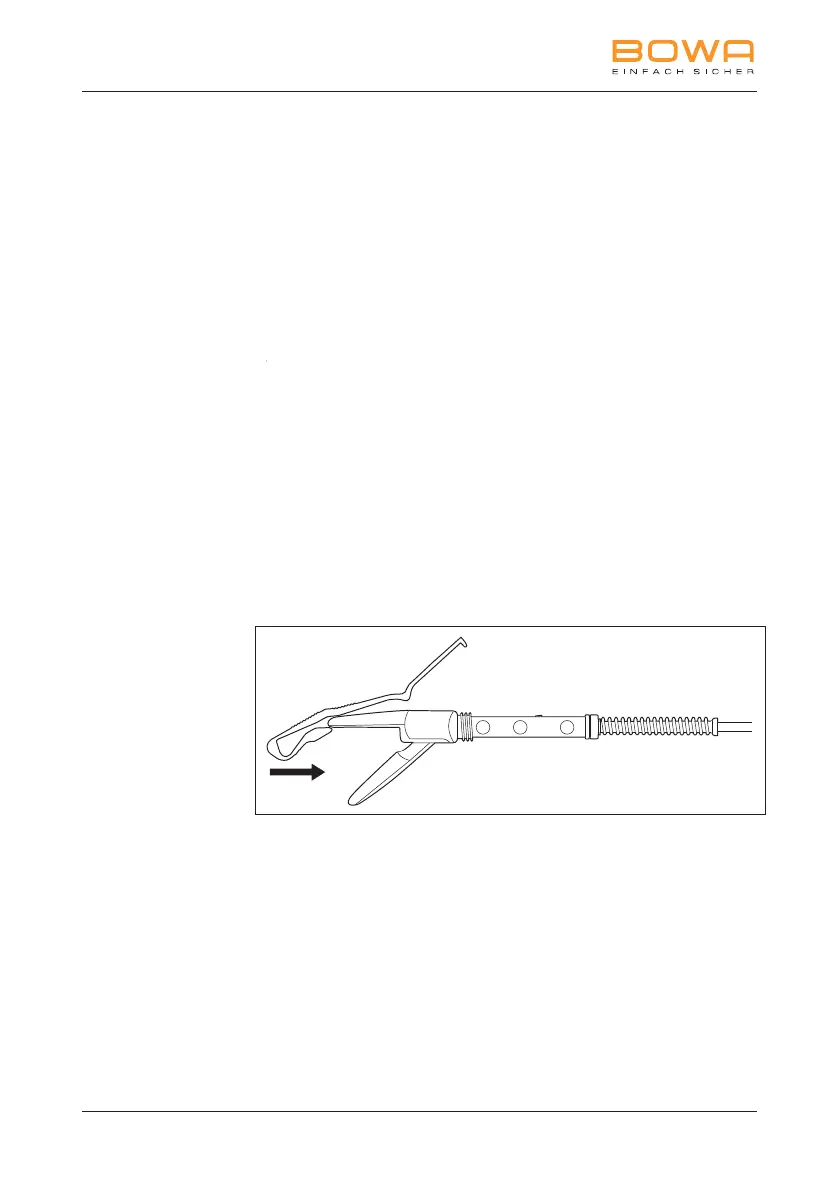

2. Grasp the insertion aid E1 firmly by the sides and slide it
onto the fixed jaw A1 in the arrow direction until it
reaches the stop.
MN031-447-S1 EN
2. Press and hold the buttons C4 and the locking lever C2
on the handle C, then pull the handle off the shank
tube B.
3. Unscrew the jaw insert A from the shank tube B.
4. For NightKNIFE with exchangeable blade: Using the
insertion aid E, remove the blade (see section 6.1,
page 28).
Pos: 11 /679-BOWA/HF-I nstrumente/Ligator "NightKNIFE"/6. 2 Einwegklinge entfernen @ 5\mod_1277986427699_ 6.doc @ 40747 @ 2
6.2. Removing the blade with the insertion aid
(only for NightKNIFE with exchangeable
blade)
1. Rotate the jaw insert A with the fixed jaw A1 facing
upward to open the jaws.
2. Grasp the insertion aid E1 firmly by the sides and slide it
onto the fixed jaw A1 in the arrow direction until it
reaches the stop.
