BÖWE P15 - Page 49

42
P12-P15-P18
7 Connection 7
707770-21-0

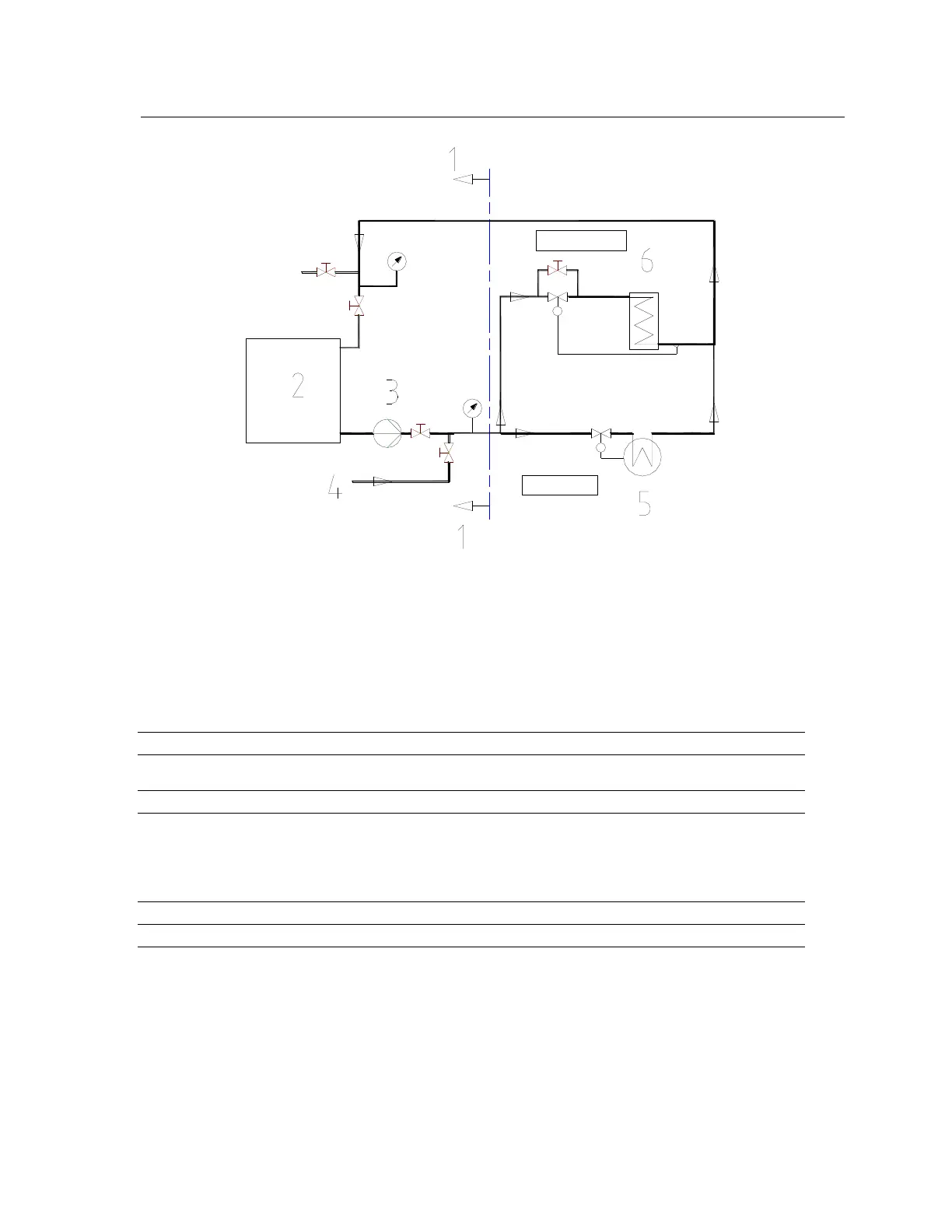

1 = customer side 5 = refrigeration unit
2 = cooling tower 6 = condenser
3 = circulation pump
4 = mains water supply
Data for temperatures up to 24 °C (75.2 °F)
(Nominal width NW at least 25 mm (1 inch)):
P12
P15
P18
Pump throughput
m
3
/h
US gal/h
1.7
449.1
2.2
581.2
2.7
713.3
Pump pressure
bar
psi
4-6
58 – 87
4-6
58 - 87
4-6
58 - 87
Heat to be dissipated over cooling water: * approx.
P12
P15
P18
kJ/cycle
16000
19000
22000
* Refers to water without additives
Also refer to the separate installation and operating instructions for the rechilller.
Distillation
Machine
