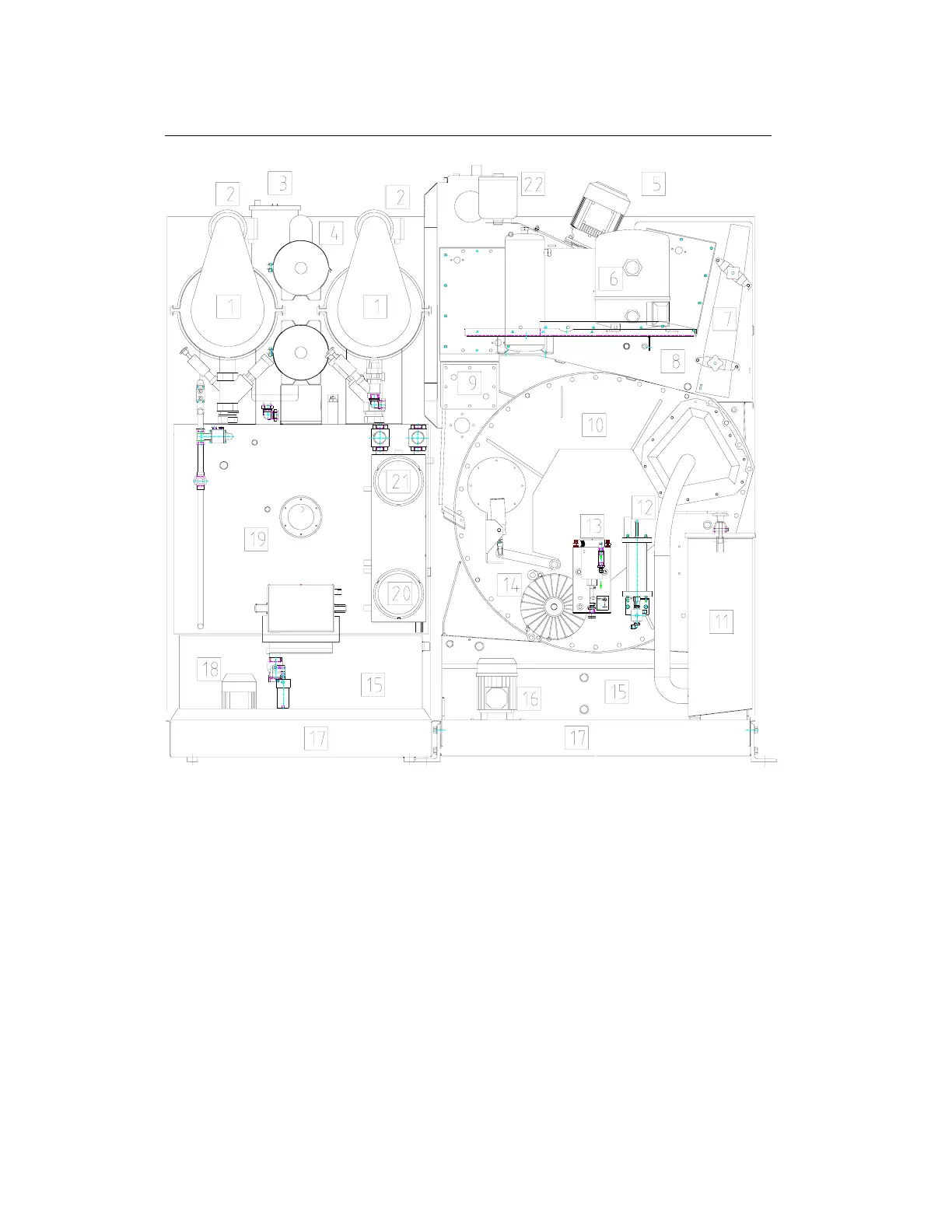

3 View of the Machine 3
703904-06-A
1 Economy filter* 12 Dosing unit
2 Filter drive 13 SPRAYMATIC SPP
3 Condenser 14 Cage drive
4 Adsorption cartridge filter** 15 Tanks
5 Fan 16 Solvent pump
6 Refrigeration unit 17 Safety trough
7 Insertion filter 18 Still rake out system pump
8 Airshaft 19 Still
9 Air heater 20 Safety separator
10 Cage housing with cage 21 Water separator
11 Button trap 22 Venting and aeration filter
* Standard delivery includes 1 economy filter
** Option (USA standard)
P25/P30
