BÖWE P25 - 7 Connection; Dimensioned Drawing of the Machine Connections

23
7 Connection 7

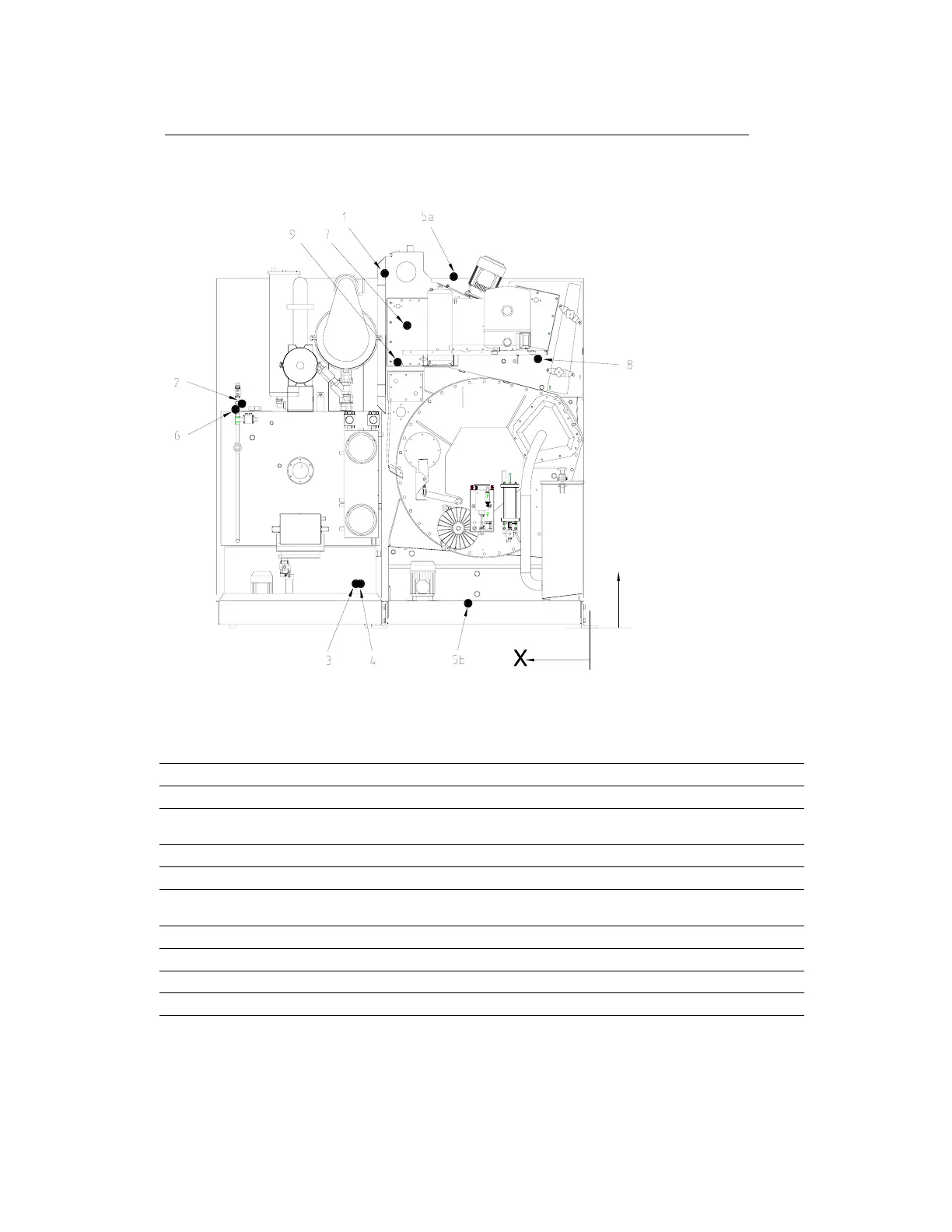

7.1 Dimensioned Drawing of the Machine Connections 7.1
Y
703904-14-A
We reserve the right to change dimensions!
Item Medium NW
mm
Inch -X-
mm (in)
-Y-
mm (in)
1 Steam machine 15 1/2 1280 (50.4) 2175 (85.6)
2 Distillation steam 15 1/2 2170 (85.4) 1375 (54.1)
3 Distillation condensate and heater
battery 15 1/2 1460 (57.5) 270 (10.6)
4 Heater battery condensate (o machine) 15 1/2 1430 (56.3) 270 (10.6)
5a * Cooling water inlet (standard model) 15 1/2 850 (33.5) 2155 (84.8)
5b Cooling water inlet with tank and
solvent cooling
15 1/2 760 (30.0) 150 (5.9)
6 Cooling water outlet, distillation 20 3/4 2210 (87.0) 1340 (52.8)
7 Cooling water outlet, refrigeration unit 15 1/2 1140 (44.9) 1855 (73.0)
8 Compressed air 8 1/4 325 (12.8) 1650 (65.0)
9 Electric connection - - 1200 (47.2) 1630 (64.2)
There must be a measuring potentiometer installed (on the machine) between the machine and
customer wiring system.
P25/P30
