BÖWE P25 - 6 Fixing the Machine in Place; Machine Trough; Anchoring Methods

19
6 Fixing the Machine in Place 6
6.1 Machine Trough 6.1
The machine trough is a permanently integrated component of the machine.
Collecting capacity: 240 l (63.4 US gal)
Distillation 260 l (68.6 US gal)
Material: St1203 /1.0330.03 /3 mm (.1 in)
painted active primer
6.2 Anchoring Methods 6.2

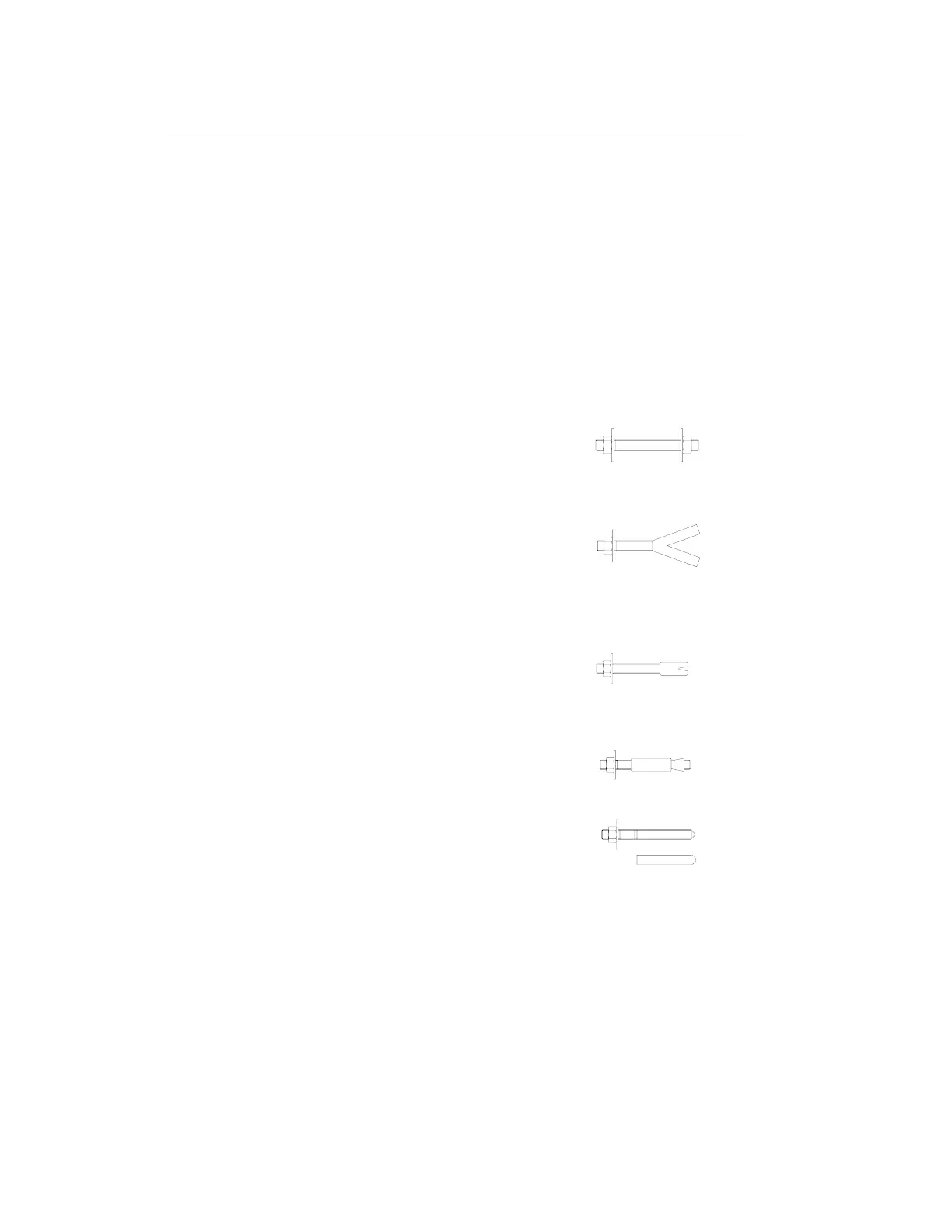

Alternatively, you can also use the following anchoring methods for fixing the machine in place:
For ceiling installation:
- Through bolts (threaded rod)
with washer and M16 nuts.
For foundation installation:
- Stone bolts (length 100 mm/3.9 in) for cementing into
recessed or mortised holes
Screws are not permitted to be longer than the
thickness of the foundation.
or Machine:
Distillation:
M16
M10
- Heavy-duty plug with threaded rod
for deeper bore holes
or
- Safety expansion anchors for used in bored holes
or
- Adhesive plugs/shear connectors.
703871-25-0
Thread for all anchoring methods: M 16 /M10
Quality: Property class 8.8 - DIN 267
The fixing nuts must be self-locking, with quality conforming to DIN 985.
We will not accept any liability for damages that result from the failure to comply with our
recommendations and information.
Attention:
Pay attention to the floor load of the machine floor space.
The bore holes must be deep enough to ensure that the plug stretches in the concrete.
P25/P30
