7 Connection 7
Distillation
703904-16-A

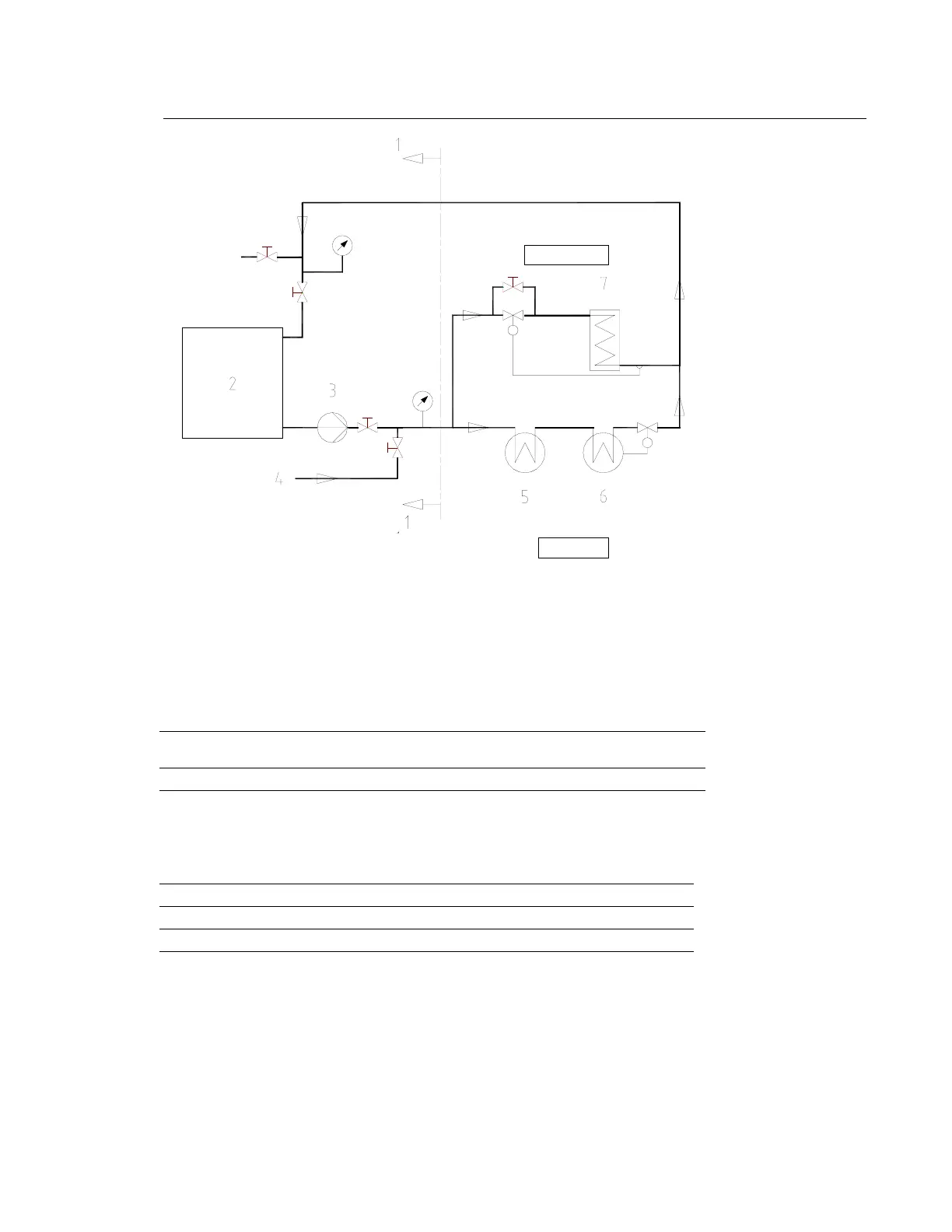

Machine
1 = Customer side 6 = Refrigeration unit
2 = Cooling tower 7 = Condenser
3 = Circulation pump
4 = Mains water supply
5 = Undercooler cooling agent
Data for temperatures up to 24 °C (75.2 °F)
(Nominal width NW at least 32 mm (1 1/4“):
Pump throughput m
3
/h
US gal/h
3.2 *
845.4*
Pump pressure bar (psi) 4-6 (58 - 87)
Heat to be dissipated*
Without Slimsorba kJ/h 52000
With Slimsorba kJ/h 53000
* refers to water without additives
Also refer to the separate installation and operating instructions for the rechilller.
P25/P30
