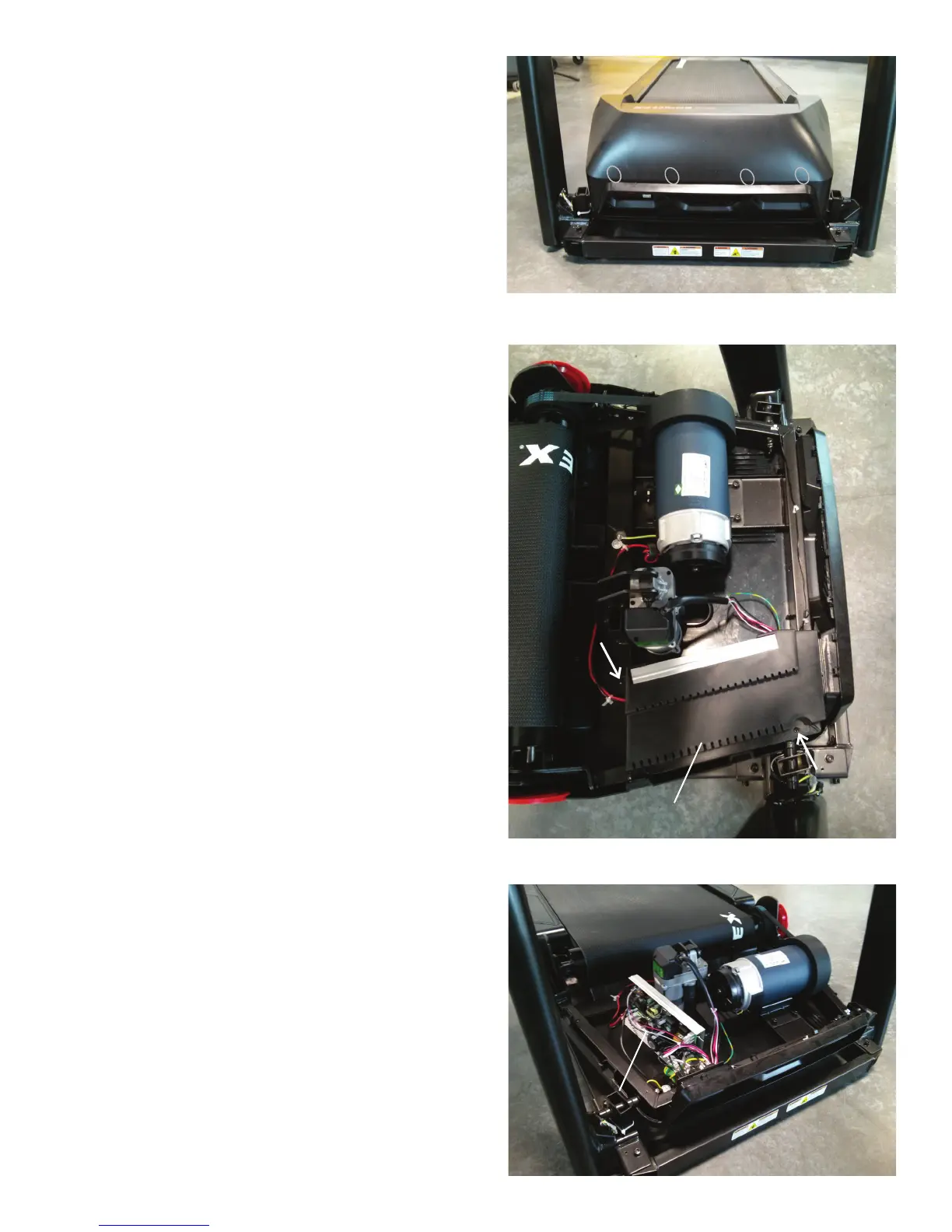

6. Gently release the front snaps (indicated by ovals) that secure the
Motor Cover and pivot it back toward the walking belt until it releases.
Remove from the machine.
7. Using a #2 Phillips screwdriver, remove the 2 indicated screws from
the Motor Control Board Cover. Lift and remove the Motor Control Board
Cover.
8. Remove the Lower I/O Cable connector from the Motor Control Board
after noting the location.
Note: Be sure to note where the Lower I/O Cable attaches for re-assem-
bly.
Motor Control Board Cover
Motor Control Board (MCB)
To Next Page
