94
7. Using a standard screwdriver, gently lift and release the Junction Cover
End Caps from the Console Assembly.
8. Remove the Junction Cover End Caps from the Console Assembly.

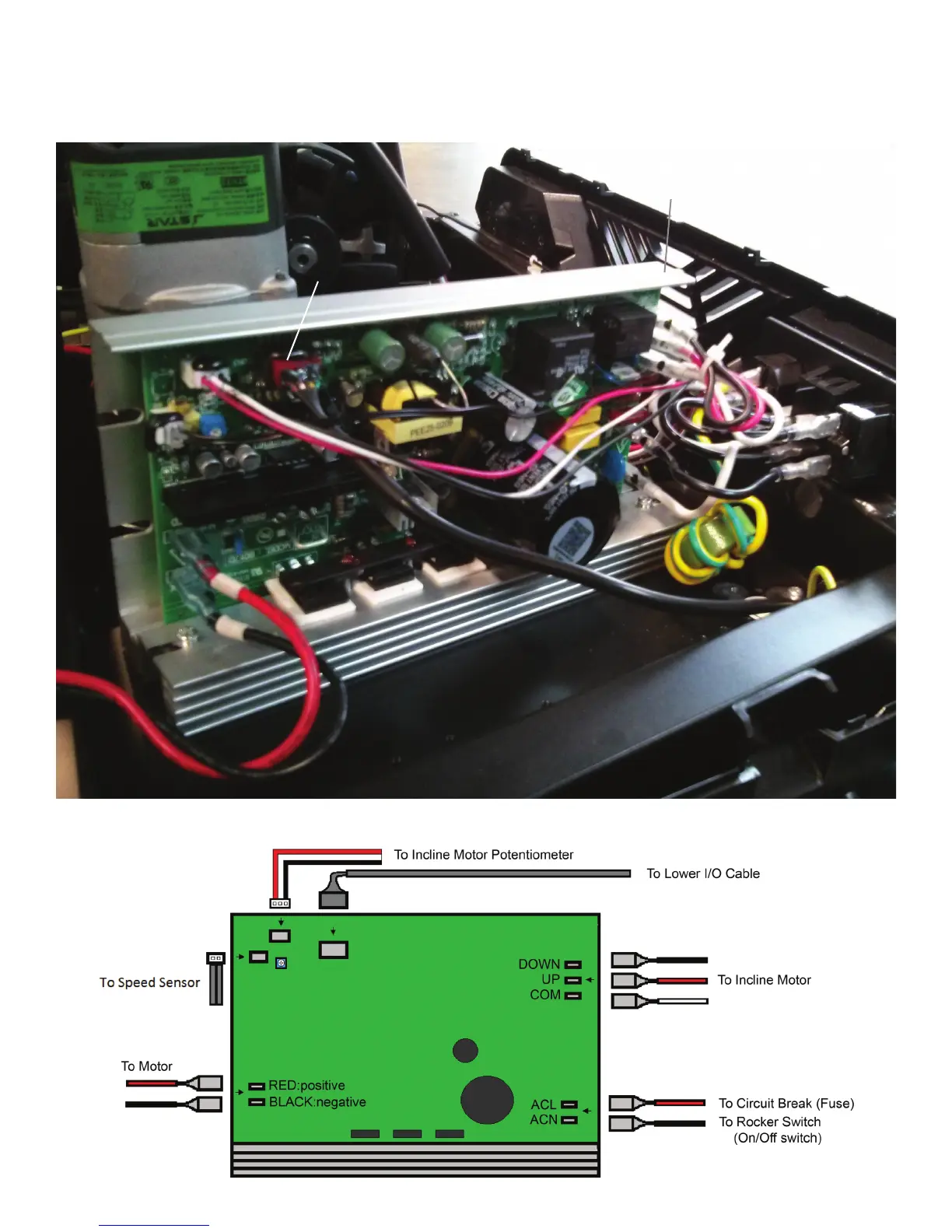

Lower I/O Cable
Motor Control Board
(MCB)
