4. Remove the connectors from the Motor Control Board after noting their
locations.
Note: Be sure to note where all cables attach for re-assembly.
5. Using a #2 Phillips screwdriver, remove the 2 indicated screws that
attach the Motor Control Board (MCB) to the Frame.
6. Remove old Motor Control Board, and install the new Motor Control
Board. Connect all the cables to the MCB in their proper locations. Be
sure not to crimp any cables.
7. Re-install all remaining parts that were removed in reverse order.

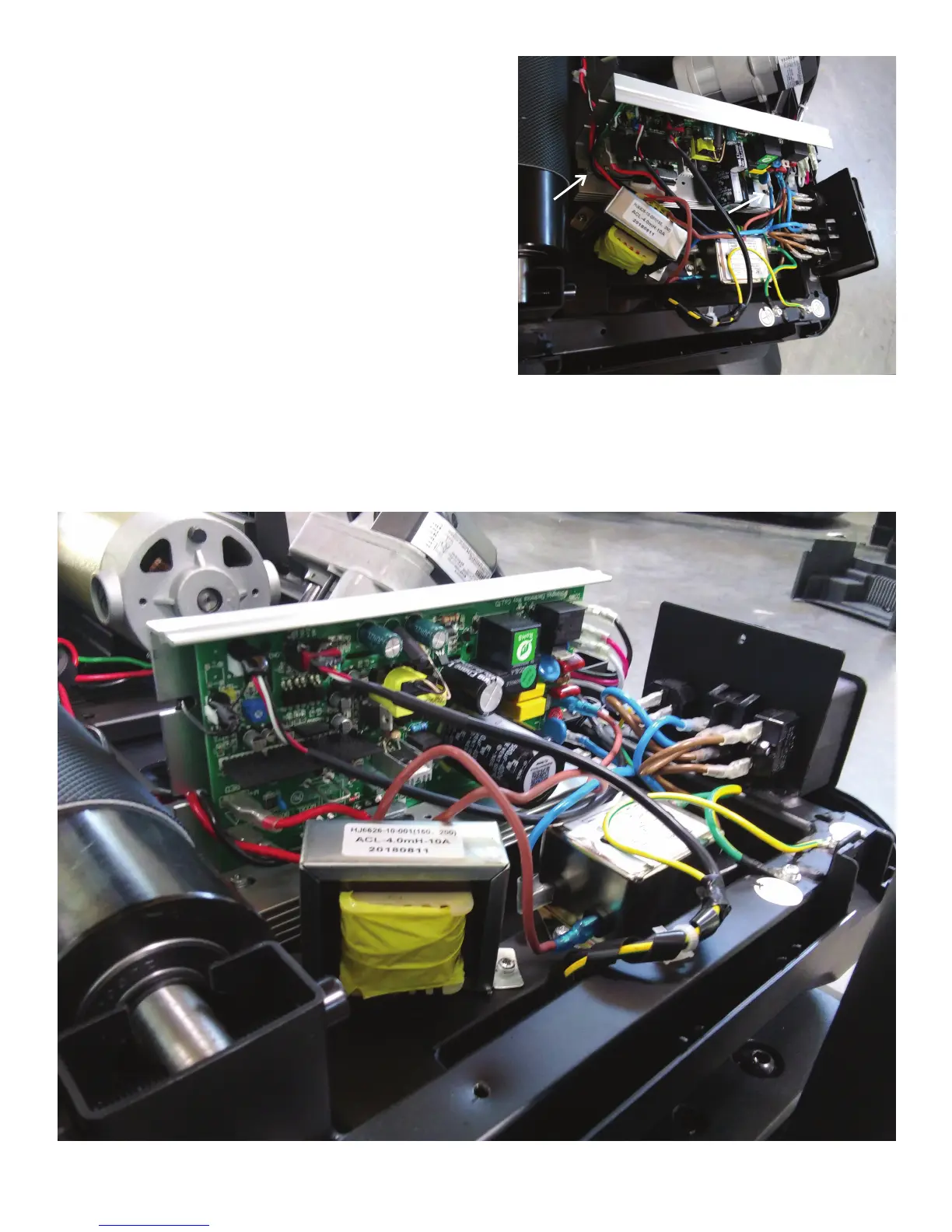

Note: The above photo shows the BXT028 / BXT088 machine, with Choke and Filter included.
