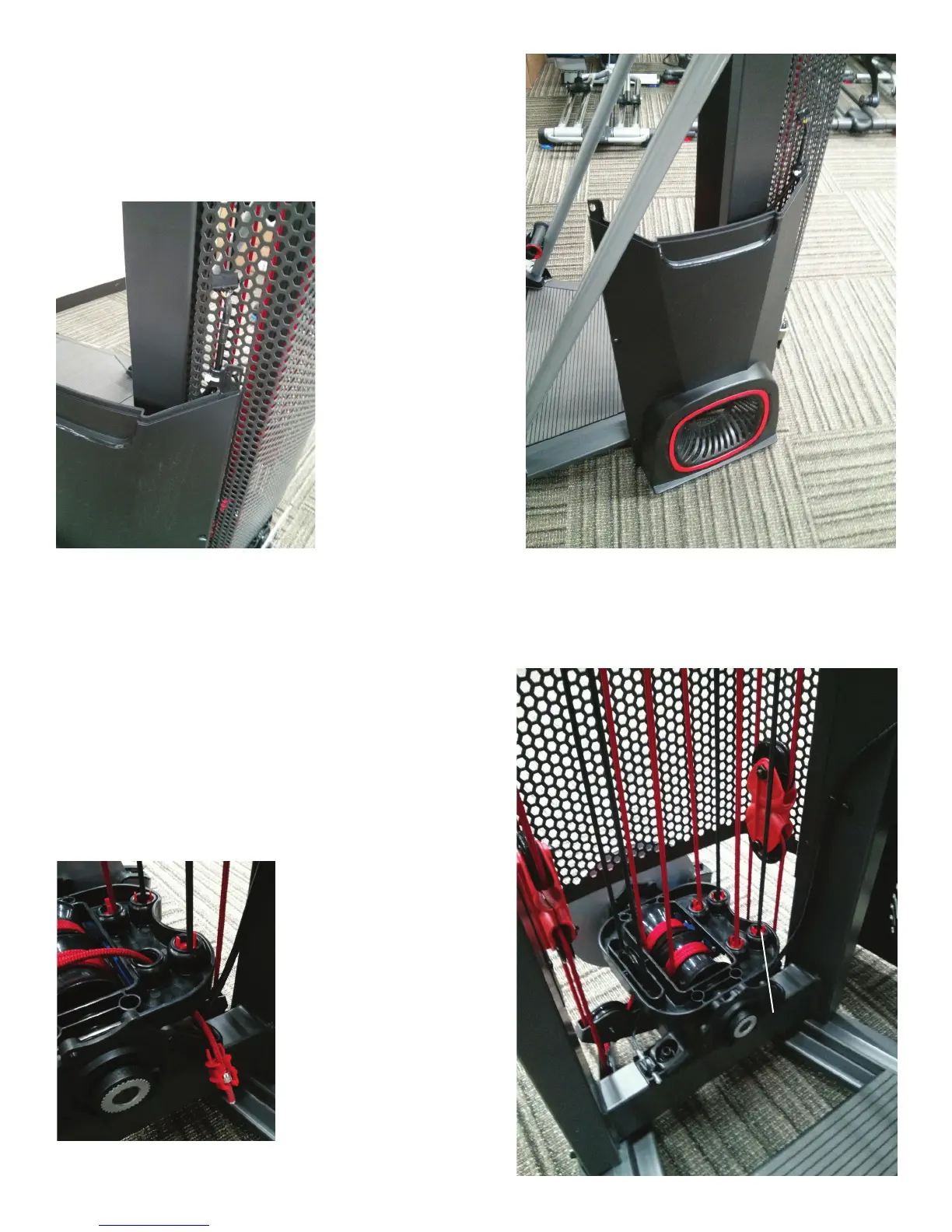

6. The Fan Assembly Shroud has the Lower Cable secured to the
upper right corner. Slightly pivot the Fan Assembly Shroud to the right
side of the machine without damaging the Lower Cable.
Note: Procedure is the same for each of the Low-Tension, Floating
Pulleys. The Fan is removed for clarity.
7. To reduce the tension, pinch the clip together on top of the Elastic
Cord Stopper and pull it out from below.
8. Remove the Elastic Cord Stopper from the cord, and pull the end
of it through the frame.
9. Re-attach the Elastic Cord Stopper to the end of the Elastic Cord
to keep it from being released any further.
Elastic Cord Stopper
Note: Image shows the Lower Right Rope Stopper removed.
