Bowflex HVT - Page 129

129

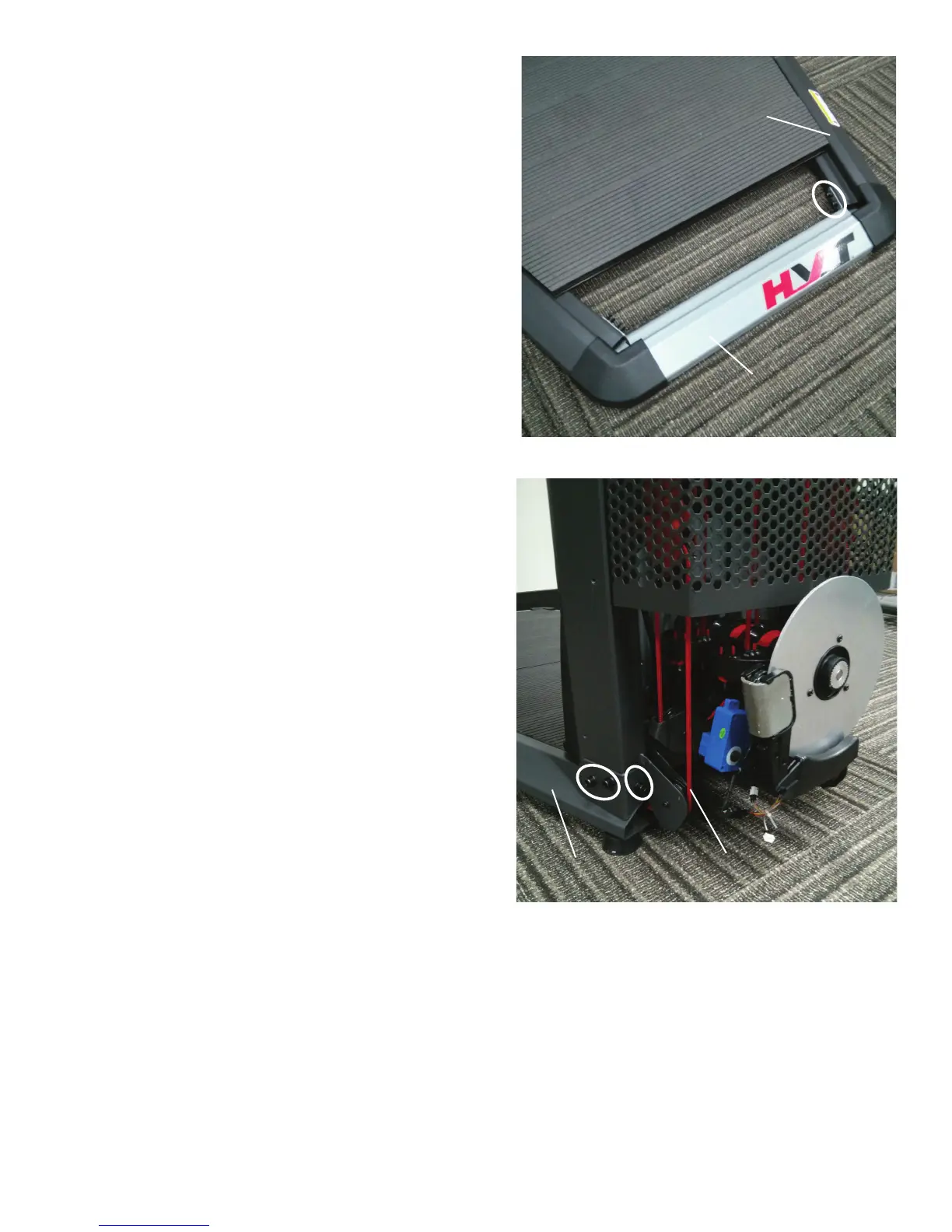

15. Using a 6mm hex wrench, remove the two indicated screws from the
Front and Right Platform Frame.
16. Using a 6mm hex wrench, remove the three indicated screws from the
Right Platform Frame and safely remove it from the machine.
17. Place the new Right Platform Frame beside where it will be attached.
18. Disconnect the end of the routing wire near the Support Arm Pulley,
and route the end of the routing wire around the Lower Pulley.
Note: Be sure to correctly route the wire around the pulley.
Right Platform Frame
Front Platform Frame
Right Platform Frame
Right Lower
Rope
