Bowflex HVT - Page 17

17

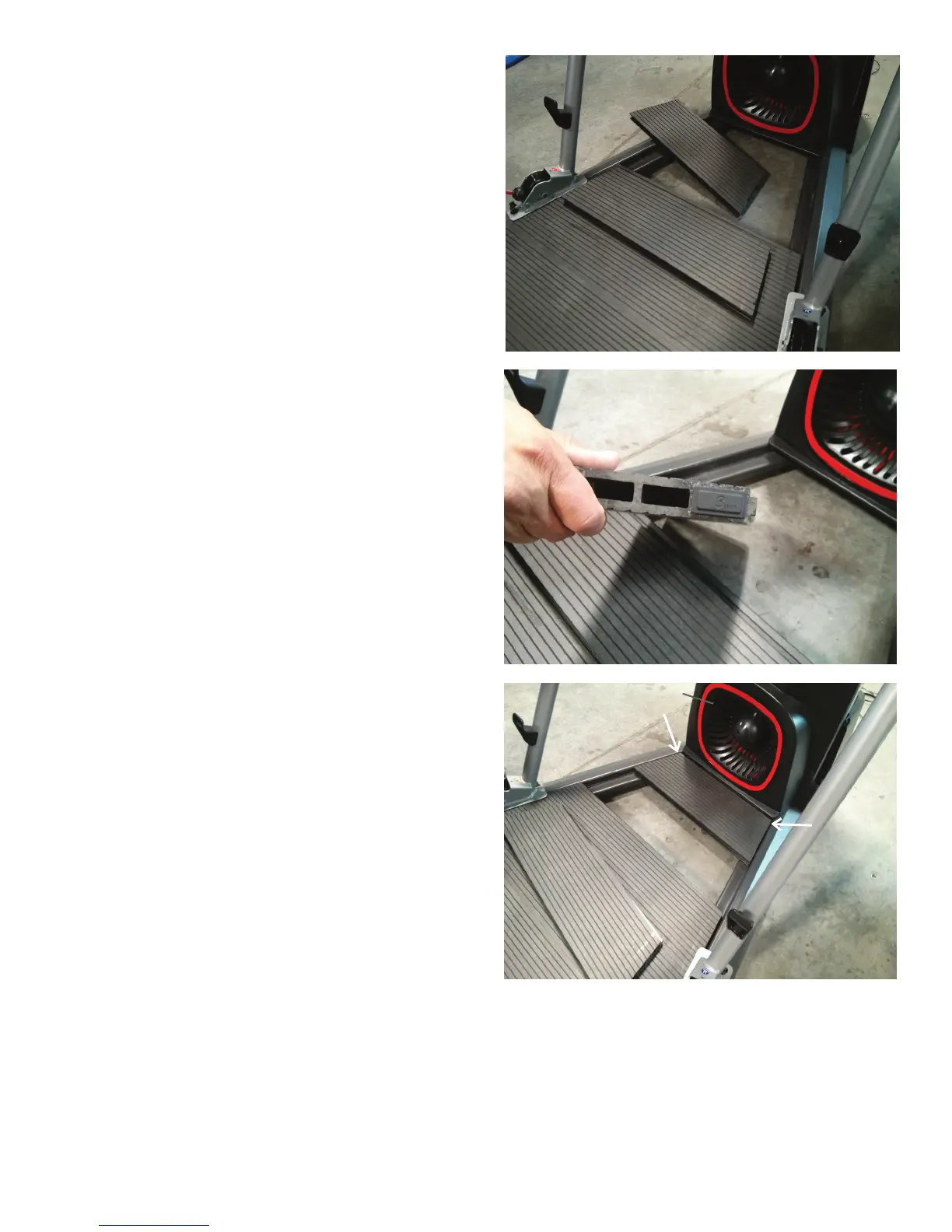

7. Remove Platform Decking #1 and 2 from the Frame Assembly
noting their orientation.
8. With the ‘3mm’ facing outward, insert each of the provided Shims
into the openings along the smallest end of Platform Decking #1.
9. Place Platform Decking #1 with Shims back into the Platform
Frame with the Shims nearest to the Fan Assembly (indicated by
arrows).
Note: BesuretoconrmthatbothShimsarestillinstalledanddid
not fall out when placing Platform Decking #1.
Fan Assembly
