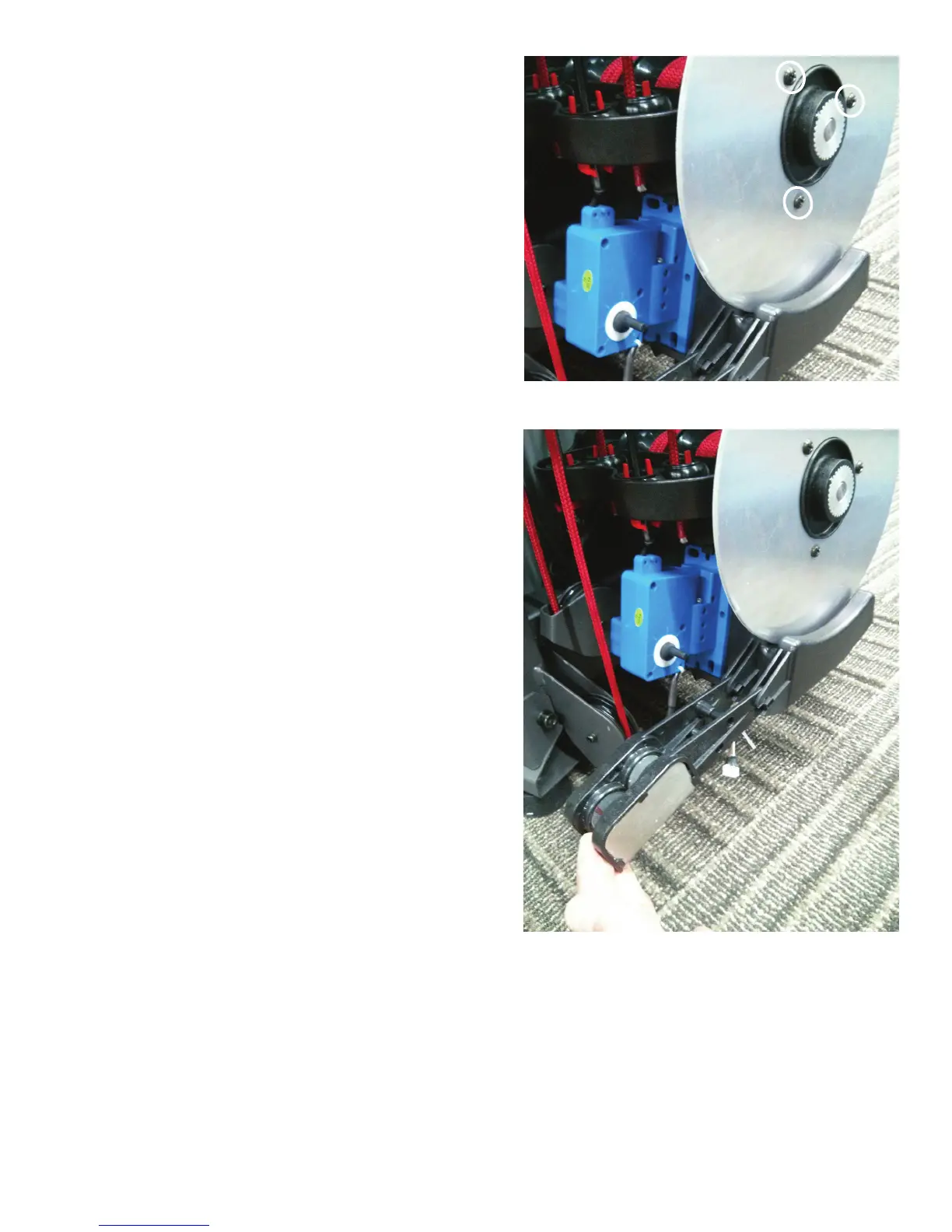

9. Using a #2 Phillips screwdriver, remove the three indicated screws
from the Brake Disc.
10. Remove the old Brake Disc and replace with the new one.
11. Using a #2 Phillips screwdriver, replace the hardware to secure
the Brake Disc.
12. With the Brake Assembly oriented as shown, slide it into the Pivot
Housing. Once inserted, pivot the Brake Assembly up toward the
Disc Brake and hold in place.
Note: If there is any resistance when pivoting the Brake Assembly,
it is not correctly oriented in the Pivot Housing. Remove the Brake
Assembly and try again.
If the Servo Motor had been secured by screw(s), then it may not be
able to slide. Skip to the next Step.
Brake Disc
