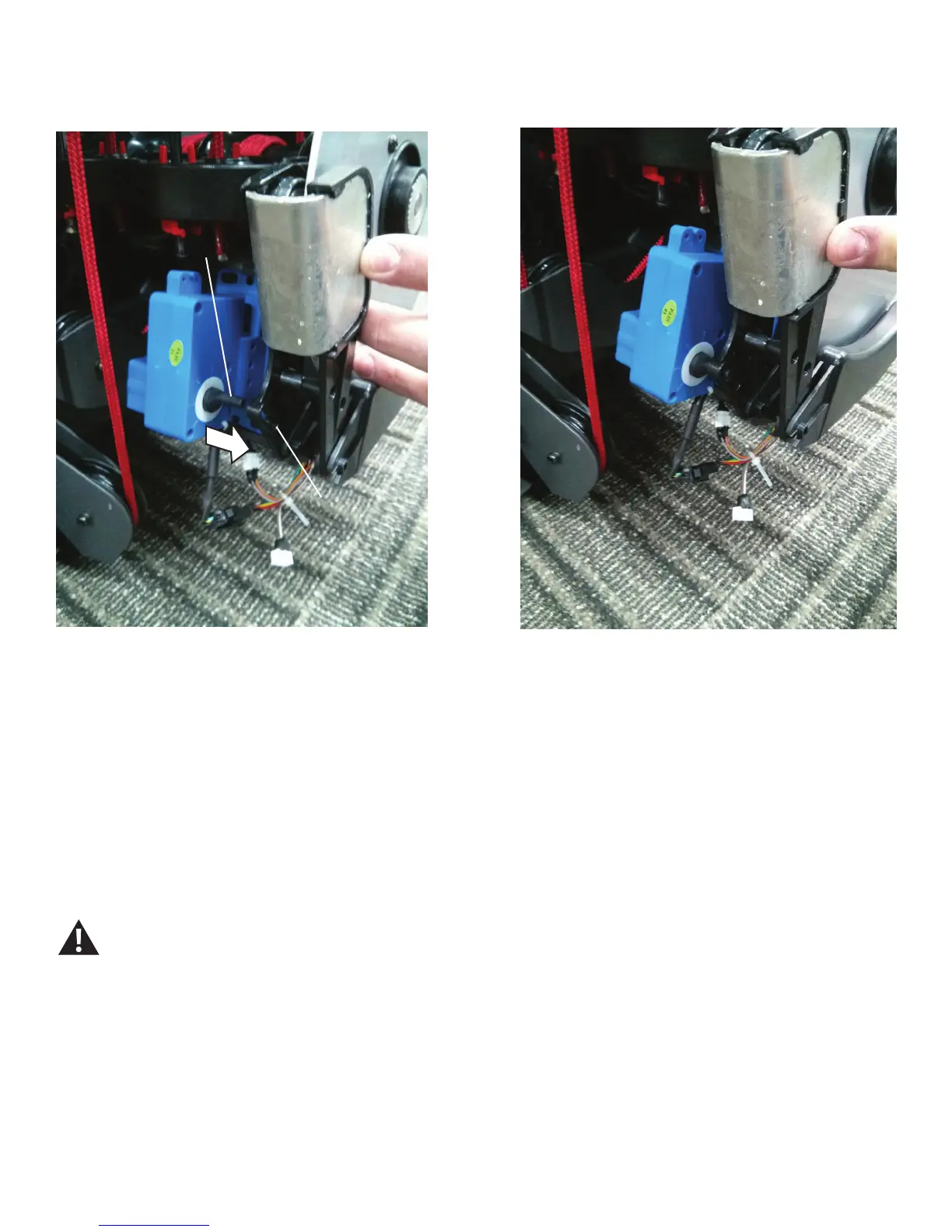

13. With the Brake Assembly pivoted upward, slide the Servo Motor over so
that the Servo Motor Arm slides into the Brake Assembly Channel. The Servo
Motor will latch into place when slid to the right, securing the Brake Assembly.
If the Servo Motor had been secured by screw(s), then it may not be able to
slide. Secure the Servo Motor using the screw(s). Be sure that the Servo Motor
Arm is still properly set into the Brake Assembly Channel.
14. Re-assemble the machine in the reverse order of when the parts were
removed.
15. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are
properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Brake Assembly
Channel
Servo Motor Arm
