1. Unplug the AC Adapter from the wall outlet and machine.

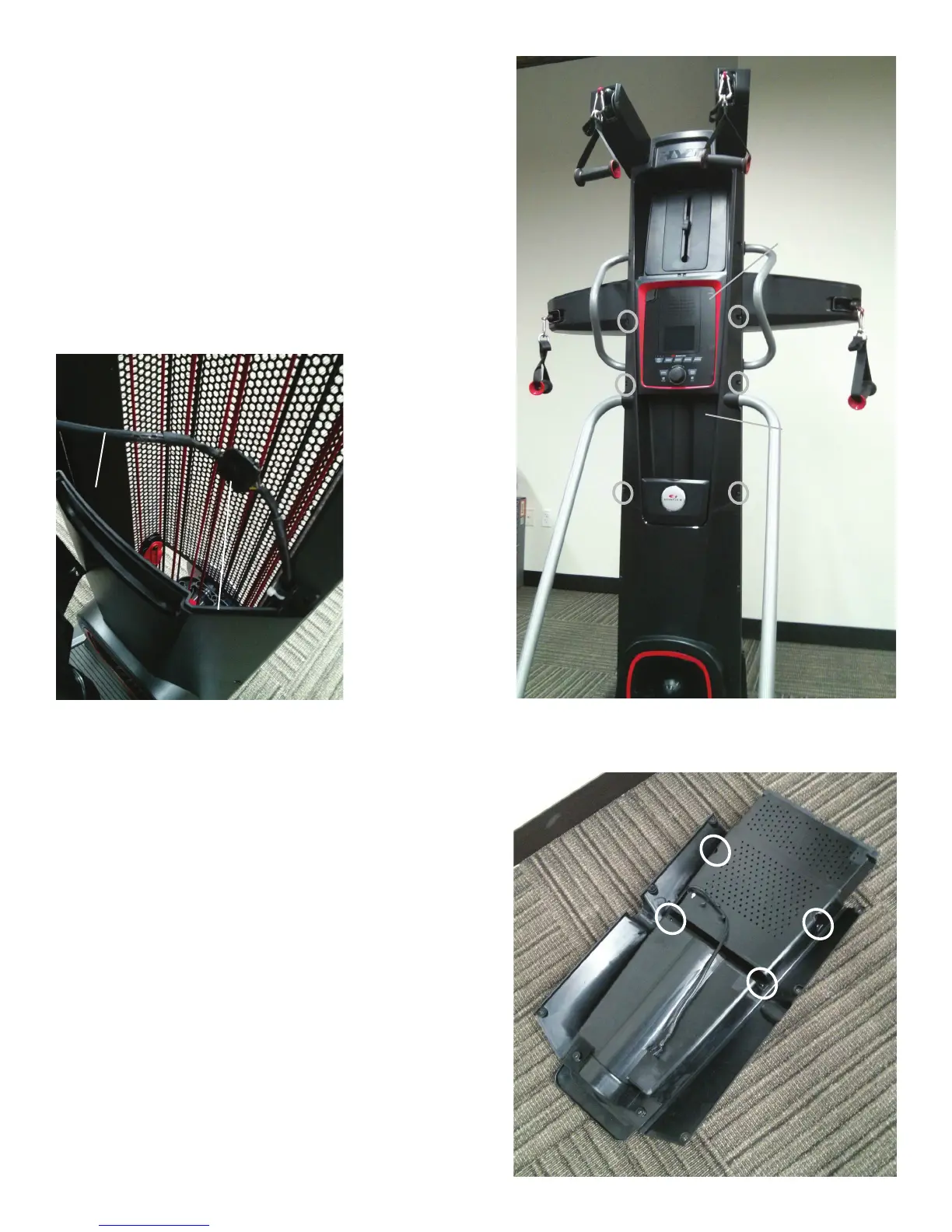

2. Using a #2 Phillips screwdriver, remove the six indicated screws (by
ovals) from the Console Assembly.
Note: Be prepared to support the Console Assembly.
3. Slightly pivot the top of the Console Assembly out to expose the Con-
sole Cable.
Note: Be sure not to crimp the cable by supporting the Console Assem-
bly.
4. Disconnect the Console Cable at the Connector and place the Console
Assembly face down onto a protective material, such as a towel or carpet.
5. Release the Console Cable from the routing guides.
6. Using a #2 Phillips screwdriver, remove the four indicated screws from
the Console Assembly.
Console Bezel Assembly
Console Assembly
Console Cable
Connector
