Note: The following images show the Right Floating Pulley being
replaced. The procedure is the same for the Left Floating Pulley.

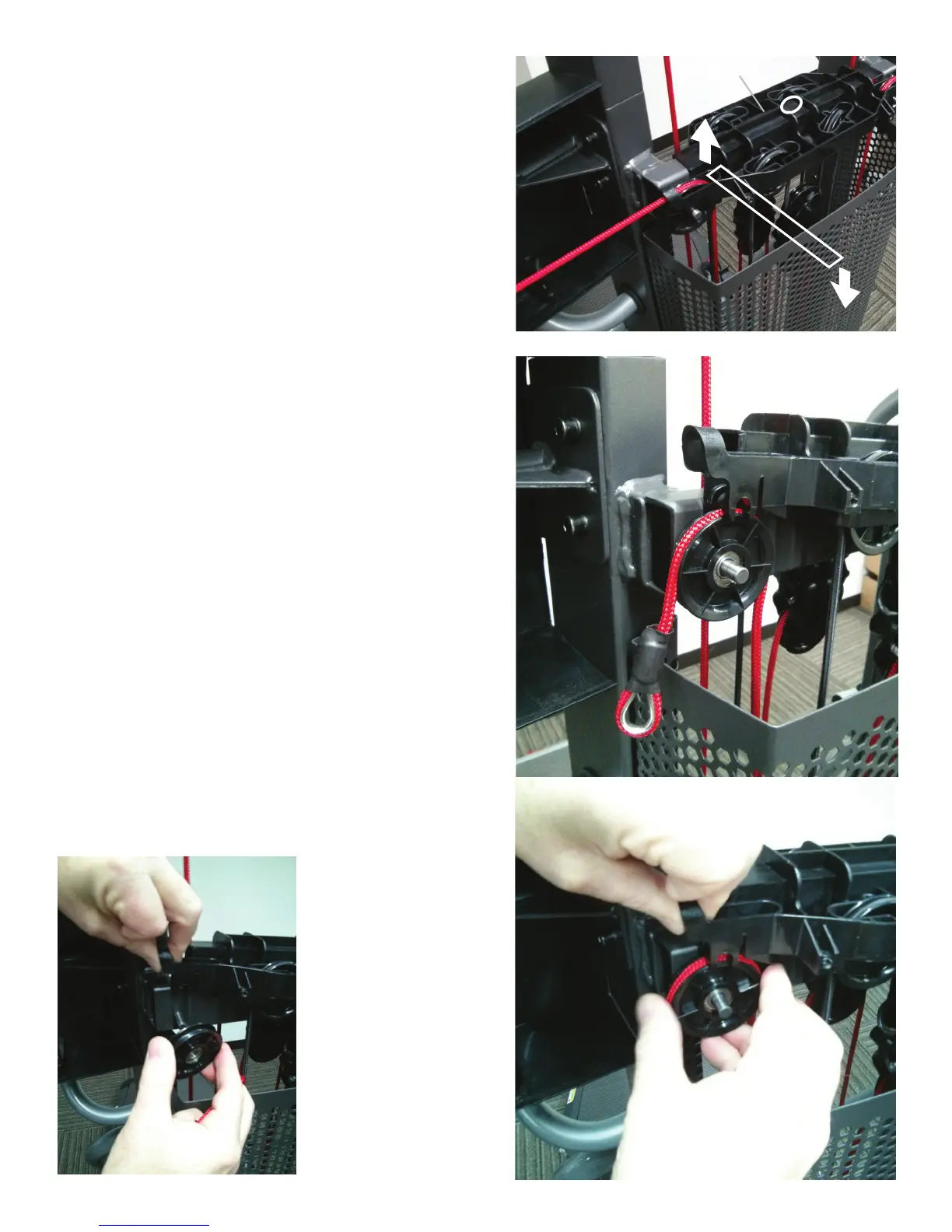

6. Using a #2 Phillips screwdriver, remove the indicated screw (by
oval) from the Middle Pulley Retainer.
7. Place a tool that spans the distance from the Rear Mesh Screen
to under the Middle Pulley Retainer, such as the handle of a rubber
mallet, that can be used for leverage. Be sure it is placed between
the Floating and Plain Bearing Pulleys.
8. Using the exposed end of the leverage tool, suddenly push down-
ward to get the Middle Pulley Retainer to release on the side with the
Floating Pulley.
9. Remove the old Floating Pulley after noting how the rope routes
over it, and replace with the new Floating Pulley.
Rear Mesh Screen
Middle Pulley Retainer
