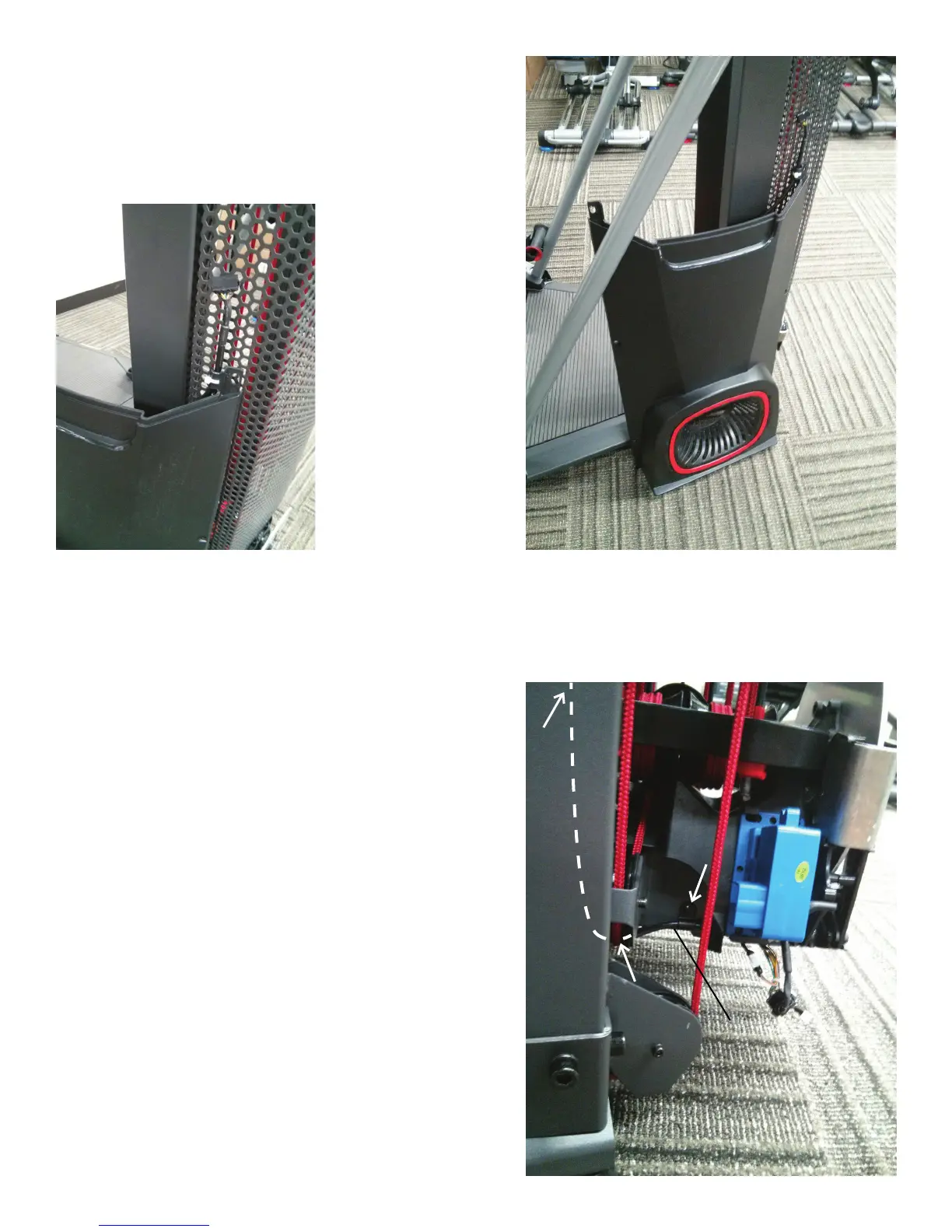

9. The Fan Assembly Shroud has the Lower Chassis Cable secured
to the upper right corner. Slightly pivot the Fan Assembly Shroud to
the right side of the machine without damaging the Lower Cable.
10. Using a pair of wire cutters, cut the Zip Tie that secures the Lower
Chassis Cable and remove it.
11. Using a new Zip-Tie, secure the new Lower Chassis Cable to the
Fan Assembly Shroud.
12. Using a #2 Phillips screwdriver, remove the three indicated
screws (by arrow) with clips that secure the Lower Cable.
Lower Chassis Cable
