13. Route the new Lower Chassis Cable through the frame following
the old Cable.
Note: Fan removed for clarity.
14. Cut the securing Zip-Tie and disconnect the old Lower Chassis
Cable. Connect the new Lower Chassis Cable.
Note: Be sure to cut only the Zip-Tie and not any cables.
15. Re-assemble the machine in the reverse order of when the parts
were removed.
16. Final Inspection
Inspect your machine to ensure that all hardware is tight and compo-
nents are properly assembled.
Do not use until the machine has been fully assembled
and inspected for correct performance in accordance
with the Owner’s Manual.

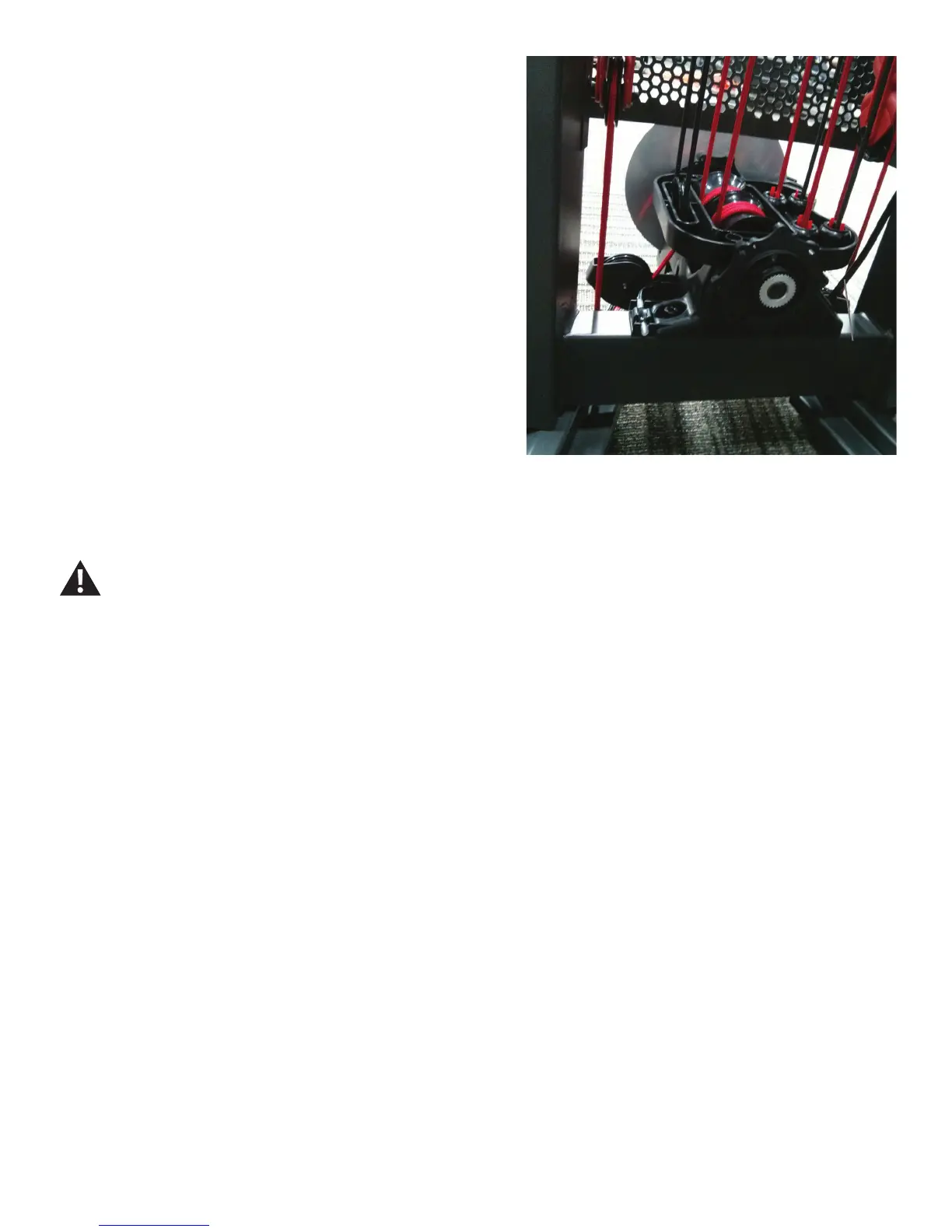

Lower Chassis Cable
