6. If the Brake Assembly needs to be adjusted, use a 8mm open
ended wrench to loosen the Brake Cable Securing Nut. Turn the
Adjustment Barrel by hand until the magnet is placed correctly.
7. Carefully rotate the Brake Disc. If the Brake Disc does not rub
against the Brake Magnet, skip to step 10.
Keep ngers out of any pinch opportunities when
rotating the Brake Disc.

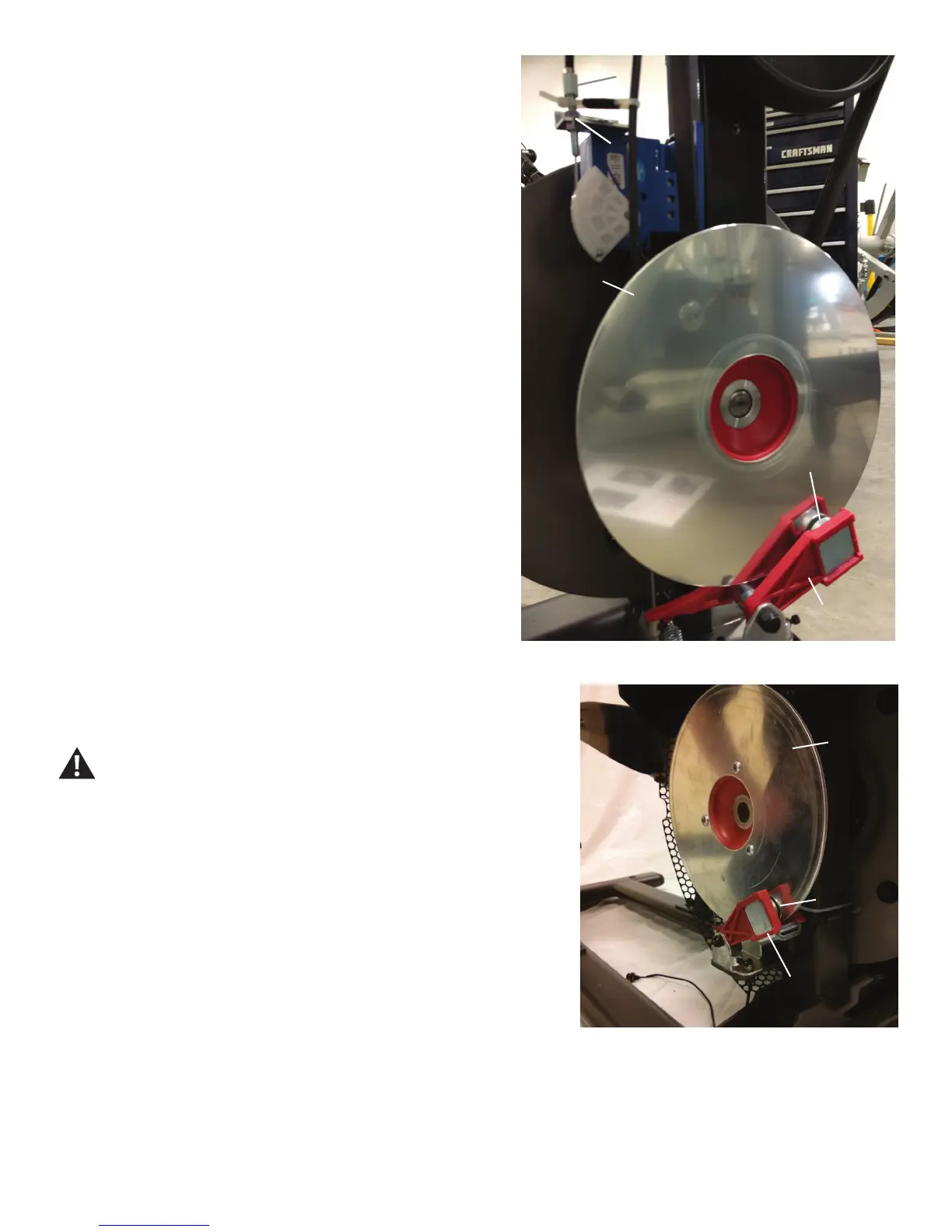

Brake Disc
Brake
Magnet
Brake Assembly
Brake Disc
Brake Assembly
Brake Magnet
Brake Cable Securing Nut
Adjustment Barrel
