31

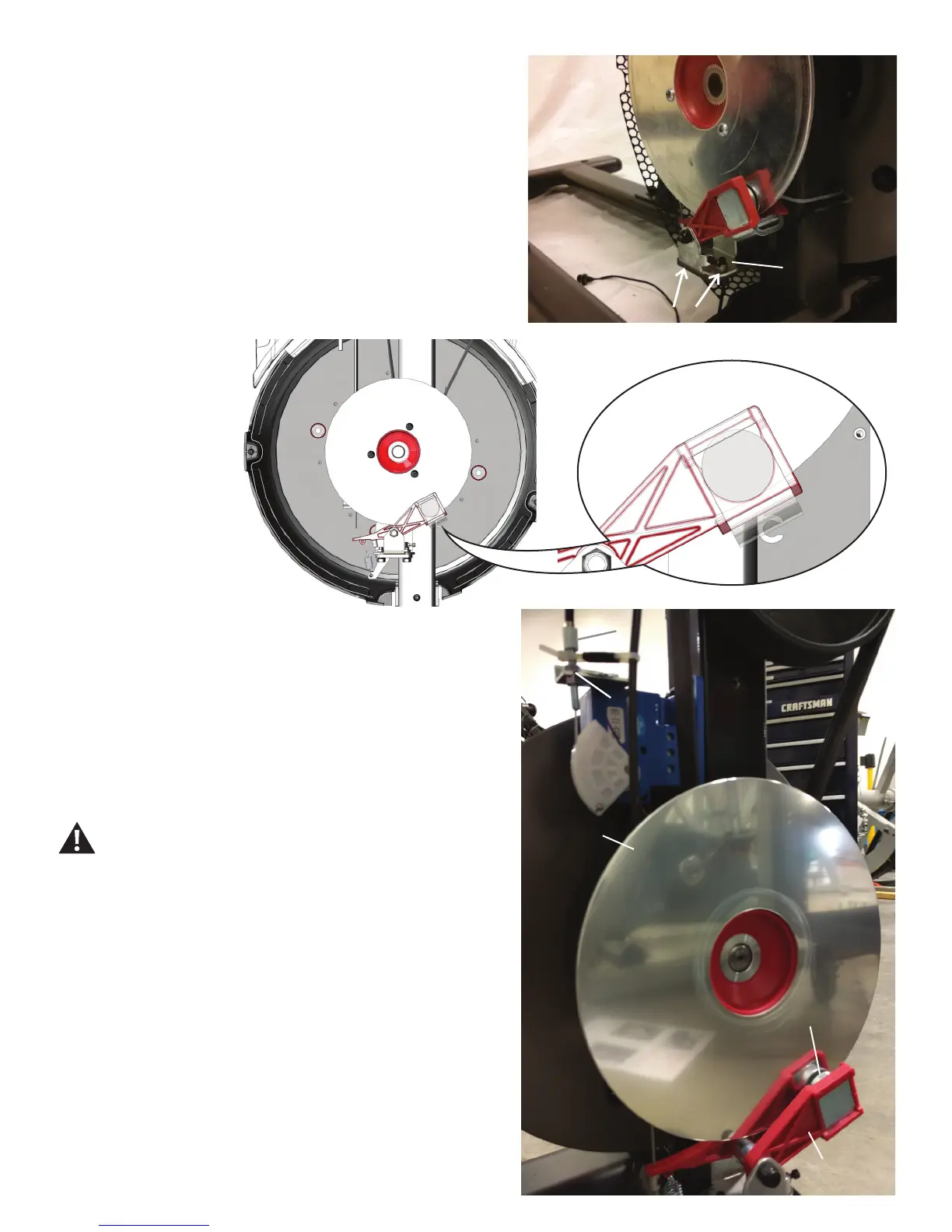

8. Using a 10mm hex wrench, remove the indicated screws (by ar-
rows) that connect the Brake Assembly and remove it.
9. Attach the new Brake Assembly, but do not fully tighten the hard-
ware.
10. Attach the Brake Disc.
11. Reattach the Brake Spring and the Brake Cable to the Brake Arm,
and adjust to the tape marker.
12. At the maximum resistance
setting, the outer edge of the
Brake Magnet should line up
with the outer edge of the Brake
Disc.
Tab
13. If the Brake Assembly needs to be adjusted, use a 8mm open ended
wrench to loosen the Brake Cable Securing Nut. Turn the Adjustment Barrel
by hand until the magnet is placed correctly.
14. Carefully rotate the Brake Disc. If the Brake Disc does not rub against
the Brake Magnet, skip to step 17.
Keep ngers out of any pinch opportunities when rotating the
Brake Disc.
Brake Disc
Brake Assembly
Brake Magnet
Brake Cable Securing Nut
Adjustment Barrel
Brake Assembly
To Next Page
