NOTICE: This document provides instructions for the replacement of the Console Assembly on the Bowflex Max Trainer
®
M3 / M5.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.
Note: TheBowexMaxTrainer
®
M3 is used in the following images. The
procedure is the same for the M5 model.
1. Unplug the AC Adapter from the machine and wait 5 minutes.

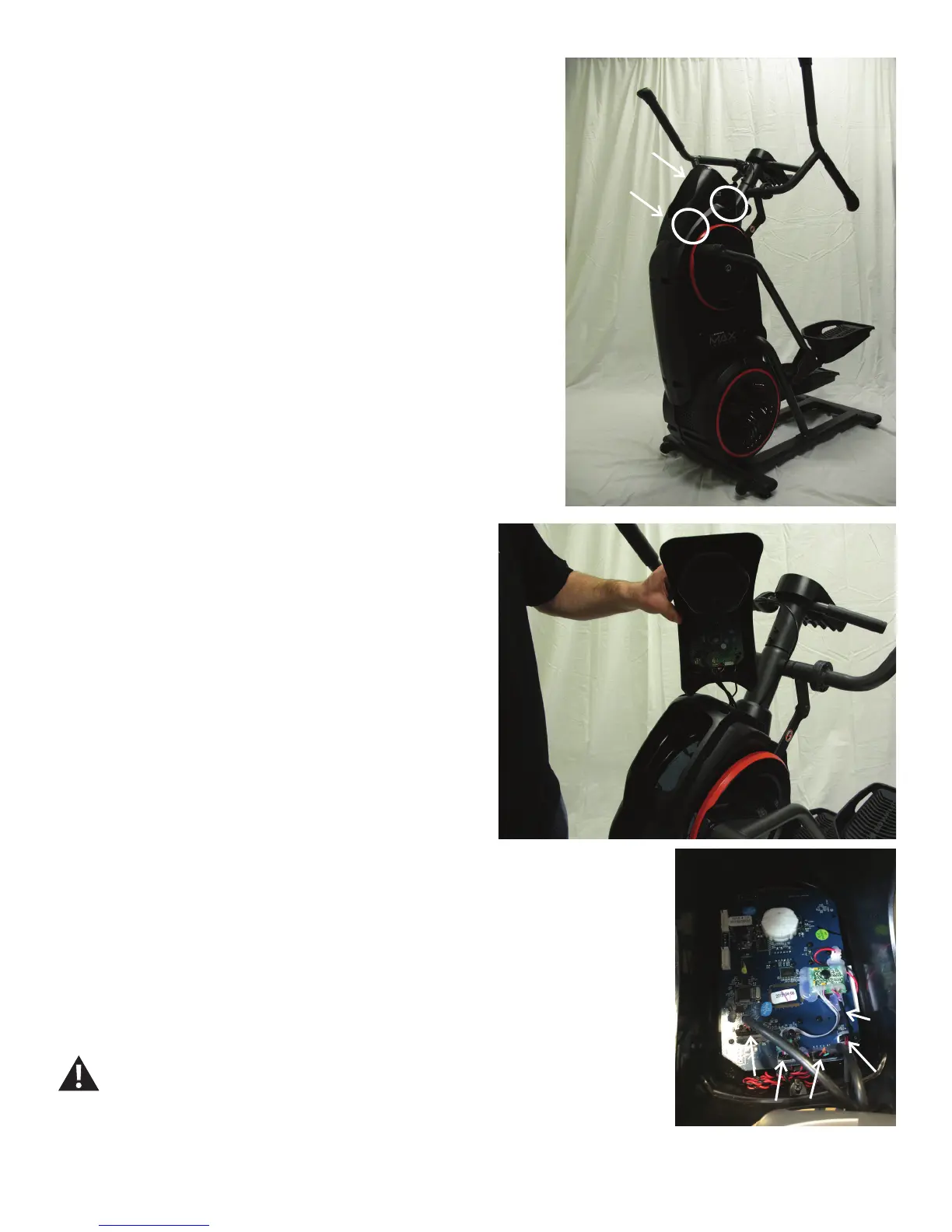

2. Using a #2 Phillips screwdriver, remove the 4 screws (2 on each side of
the Shroud) from the Console Assembly.
3. Carefully lift the Console Assembly and expose the Cable Connections.
Note: do not crimp any of the Console Cables.
4. Carefully disconnect the Cables noting their locations (see arrows).
Note: do not crimp any of the Console Cables.
5. Installation is the reverse procedure.
6. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
M5
only
