71
Tab
Cone
Fan Assembly
Fan Assembly
Screws

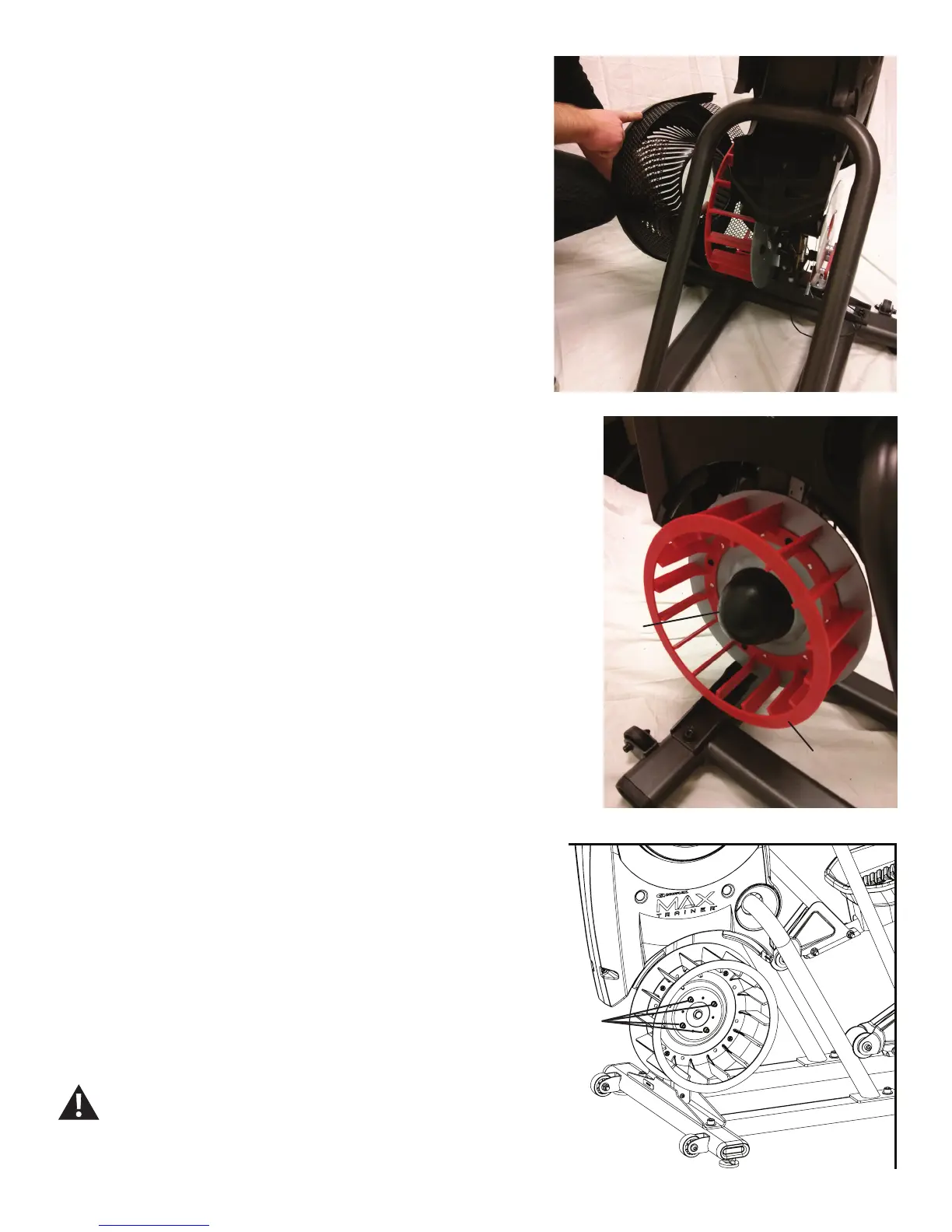

6. Remove the Left Fan Cover Assembly from the machine. Be sure to note
how the fan screens are set into the Left Fan Cover to assist with the replace-
ment procedure.
7. Remove the Cone from the Fan Assembly. There are 4 clips that attach the
Cone that can be accessed behind the Fan Assembly. Using a small standard
screwdriver, gently release the clips.
8. Using a 5mm hex wrench, remove the 4 screws from the Fan Assembly. Be
sure to support the Fan Assembly when removing hardware.
9. Installation is the reverse procedure.
10. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
