74

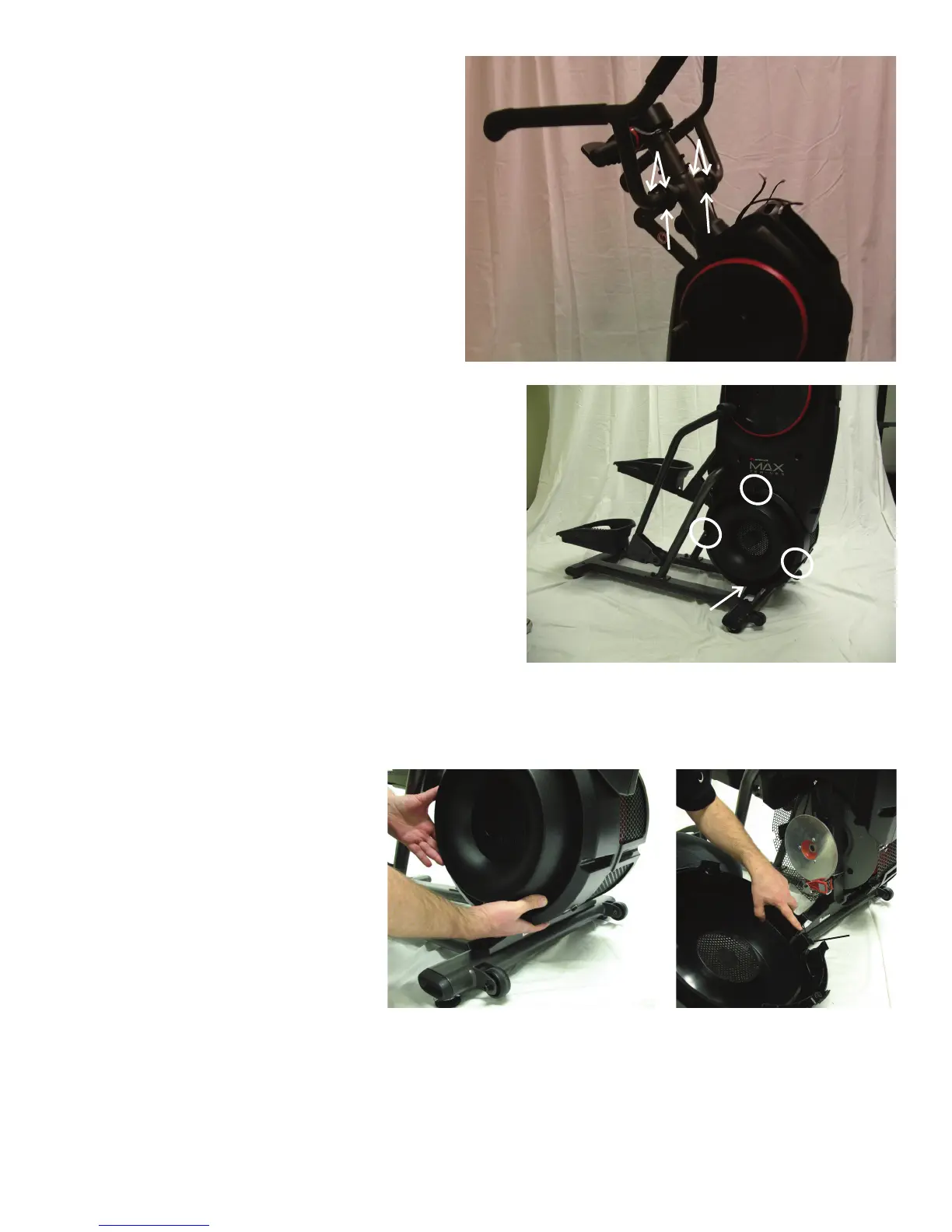

5. Using a 5mm hex wrench, remove the indicated hardware from the
Upper Handlebars.
Note: Be aware that the Upper Handlebars must be supported when
removing the hardware.
6. Using a #2 Phillips screwdriver, remove the indicated (by ovals)
screws and only loosen the lowest indicated screw (arrow) from the
Right Fan Cover.
7. The Right Fan Cover has a tab that needs to be pushed upward to
clear the loosened screw. While pushing up on the tab, remove the
Right Fan Cover from the assembly.
Note: the AC Power Cable is attached to the inside of the Right Fan
Cover. Be sure not to crimp the cable by placing the Right Fan Cover
close to the front of the machine.
Tab
