NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheI/OCableontheBowexMaxTrainer
®
M3 / M5.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.

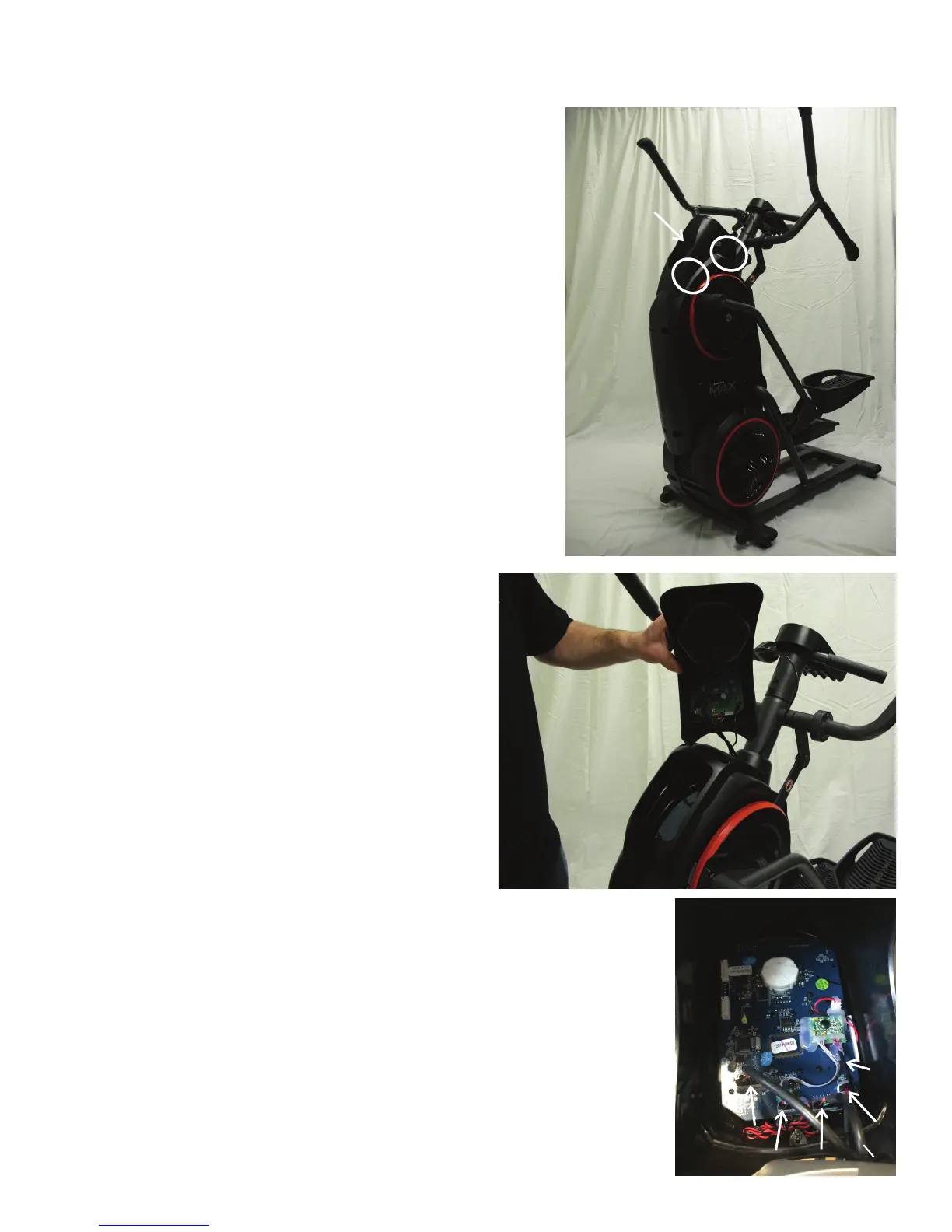

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a #2 Phillips screwdriver, remove the 4 screws (2 indicated on
one side) from the Console Assembly.
3. Carefully lift the Console Assembly and expose the Cable Connections.
4. Carefully disconnect the Cables noting their locations.
Note: Do not crimp any of the Console Cables.
Note: TheBowexMaxTrainer
®
M3 is used in the following images. The procedure is the same for the M5 model.
Console Assembly
M5
only
I/O Cable
