Bowflex Max Trainer SE - Page 27

27
Printed Circuit
Board Assembly
(PCBA)
Printed Circuit
Board Assembly
(PCBA)

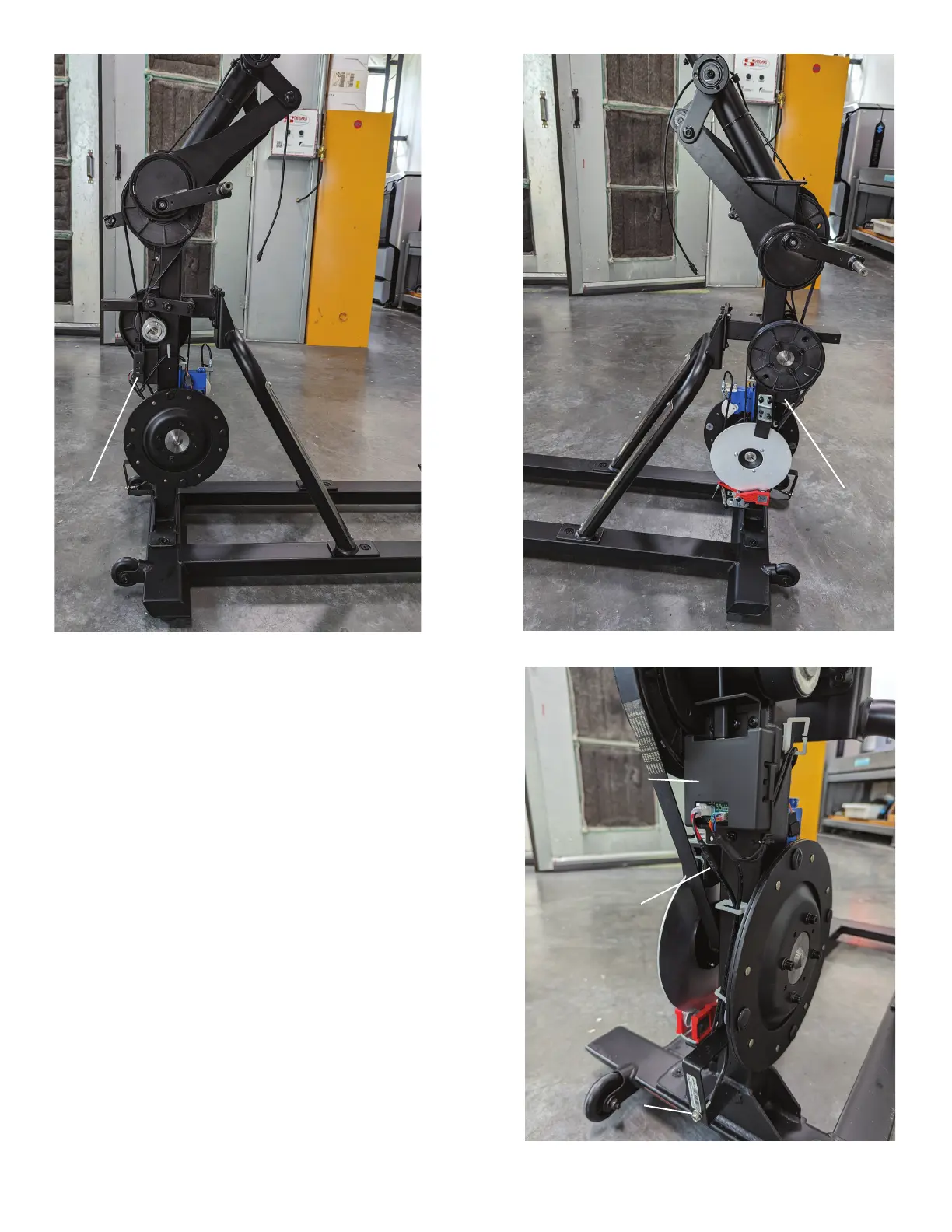

19. Remove the DC Power to PCBA Cable from the
PCBA.
Note: Be sure to note how the cable attaches for re-
assembly. If the Cable Connector is secured by a small
amount of glue, use a pair of small nose pliers to grab
and remove the glue.
NOTICE: Do not cut or pinch the cables.
Printed Circuit
Board Assembly
(PCBA)
DC Power to
PCBA Cable
Power Inlet
